TYM 4815C vs Kubota L4802 | Side-by-side comparison | ITC Resource Center
Compare Tractors

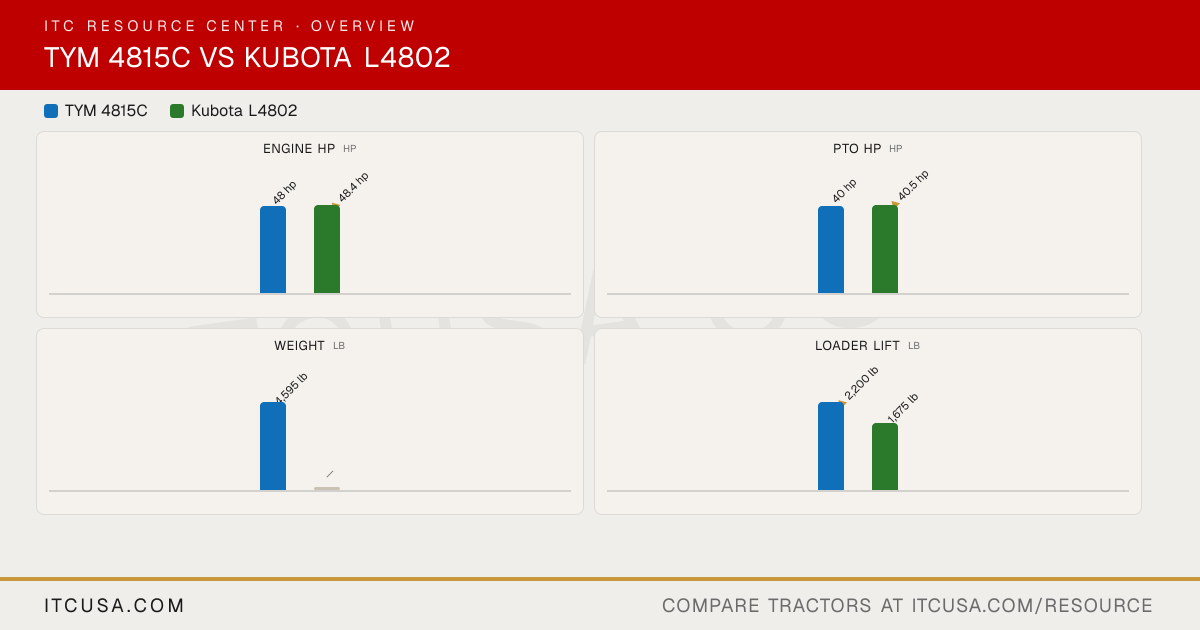

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM4815C
KubotaL4802
Engine Manufacturer
TYM
Kubota
Engine Model
T2300N2
V2403-CR-E5
Engine Type
4-cylinder, naturally aspirated diesel
Direct injection, vertical, water-cooled 4-cycle, diesel
No. of Cylinders
4
4
Displacement
139.5 in³
148.5 in³
Rated Engine Speed
2600 rpm
2600 rpm
Engine Power (Gross)
48 hp
48.4 hp
PTO Power
40 hp
39 hp
Engine Emissions Constraints
Tier 4
Not Published
Cooling System Type
Liquid-cooled
Water-cooled
Air Cleaner
Dry element
Dry type, primary and secondary element
Fuel System
IDI
Direct injection
Alternator
70 A, 12 V
45 A, 12 V
Pump Type
Dual gear pump
Not Published
Implement Flow
11.4 gpm
7.8 gpm
Steering Flow
5.2 gpm
4.7 gpm
Total Hydraulic Flow
16.5 gpm
12.5 gpm (7.8 + 4.7, computed)
Overall Hydraulic Pump Flow
16.5 gpm
12.5 gpm (7.8 + 4.7, computed)
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Rear: 0 (loader: 4)
Not Published
No. of Optional Remote Valves
Up to 4
Optional: double acting valve, or double acting valve with float position (float valve as second segment only)
Fuel Tank Capacity
7.1 gal
13.5 gal
Coolant Capacity
6.2 qt
6.9 qt
Crankcase Capacity
4.8 qt
8.7 qt
Transmission / Hydraulic System Capacity
9.8 gal
10.6 gal
Front Axle Fluid Capacity
6.8 qt
6.9 qt
PTO Type
Independent
Live independent PTO with hydraulic clutch
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category I
SAE Category I
Hitch Lift Capacity
3,306 lb
2870 lb
Hitch Lift Capacity (at 24”)
2,425 lb
2320 lb
Lift Control Type
Position control
Position control
Transmission Type
HST (hydrostatic)
Hydrostatic transmission (3-range)
No. of Speeds
3-range hydrostatic
3-range
Max Travel Speed (Forward)
18 mph
15.8 mph
Max Travel Speed (Reverse)
17.95 mph
14.2 mph
Clutch
Not Published
Not Applicable
Differential Lock & Limited Slip Options
Differential lock (standard)
Rear differential lock, pedal operated
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic power steering
Brakes
Wet, multi-disc
Mechanical, wet disc type
Seat Suspension & Adjustability
Suspension seat
Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type
Not Published
Cast-iron front axle
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
1430 lb
Overall Length with 3-Point Hitch
120.9 in
120.3 in (without 3-point hitch)
Overall Width
55.6 in
62.2 in
Wheelbase
65.7 in
72.6 in
Ground Clearance
13.1 in
15.2 in
Min. Turn Radius without Brakes
124.8 in (left); 121.3 in (right)
8.5 ft (with brake applied)
Height to Top of ROPS
Not Published
91.7 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
89.3 in
Not Published
Tractor Weight (Base)
3,587 lb
3549 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
4,595 lb
Not Published
Tire Size & Options
R1 Agricultural, R4 Industrial
R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front
7-16
8.3-16
R1 Agricultural - Rear
11.2-24
14.9-24
R3 Turf - Front
Not Published
27X10.5-15
R3 Turf - Rear
Not Published
44X18-20
R4 Industrial - Front
28x8.5-14
10.0-16.5
R4 Industrial - Rear
15-19.5
17.5L-24
Quick Attach Loader System
BL150C: quick attachment assembly
LA766 2-Lever Quick Coupler
Loader Model
BL150C
LA766
Loader Lift Height
BL150C: 104.9 in
105.2 in
Loader Lift Capacity (Full Height)
BL150C: 2,200 lb
1675 lb
Loader Breakout Force
BL150C: 3,422 lb
Not Published
Warranty Length & Coverage
Bumper-to-bumper 24 months or 2,000 hours (parts and labor); powertrain 72 months or 3,000 hours for non-commercial use (36 months or 2,000 hours rental and commercial); loaders and backhoes 12 months
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
