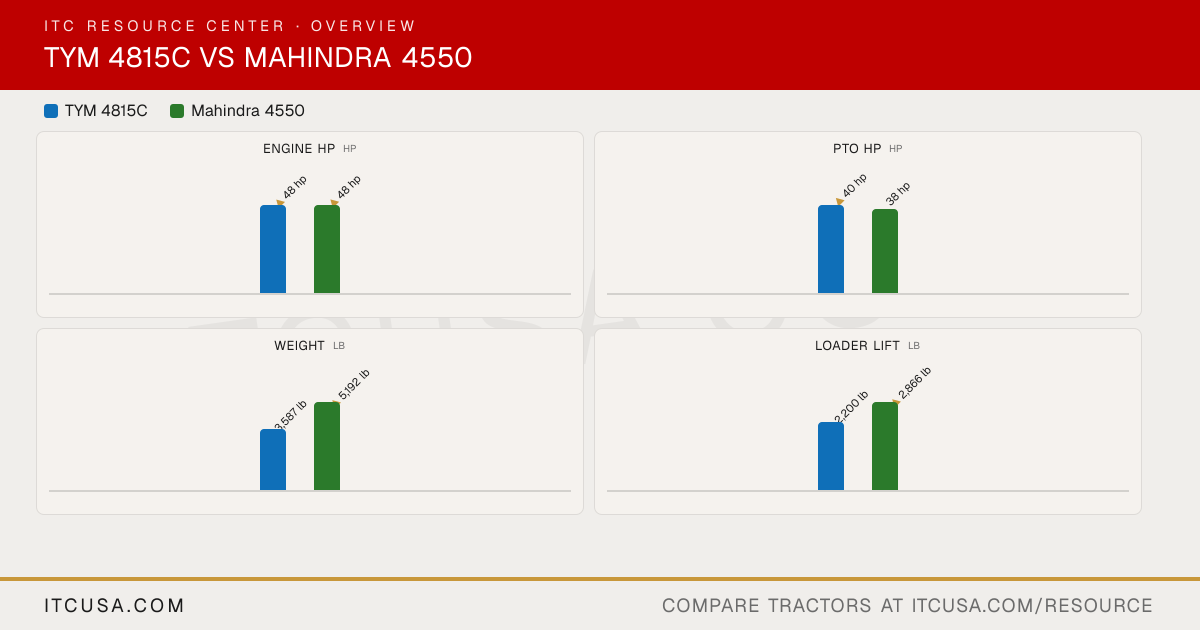

▶ EngineEngine Manufacturer TYM Mahindra Engine Model T2300N2 MDI 2700 R1 Engine Type 4-cylinder, naturally aspirated diesel Four-stroke, direct-injection water-cooled, diesel No. of Cylinders 4 4 Displacement 139.5 in³ 166.7 in³ Rated Engine Speed 2600 rpm 2300 rpm Engine Power (Gross) 48 hp 48 hp PTO Power 40 hp 38 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry element Dry type with safety cartridge and dust unloader valve Fuel System IDI Direct injection Alternator 70 A, 12 V 45 A, 12 V ▶ HydraulicsPump Type Dual gear pump Not Published Implement Flow 11.4 gpm 8.7 gpm Steering Flow 5.2 gpm 5.0 gpm Total Hydraulic Flow 16.5 gpm Not Published Overall Hydraulic Pump Flow 16.5 gpm Not Published Hydraulic System Type Open center Open center, full-live hydraulic with position and draft controls Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Rear: 0 (loader: 4) 1 (spool) standard No. of Optional Remote Valves Up to 4 Not Published ▶ Fluid CapacityFuel Tank Capacity 7.1 gal 14.55 gal Coolant Capacity 6.2 qt 2.25 gal Crankcase Capacity 4.8 qt 2.14 gal Transmission / Hydraulic System Capacity 9.8 gal 10.57 gal Front Axle Fluid Capacity 6.8 qt 2.24 gal ▶ PTO & HitchPTO Type Independent Live PTO Rear 540 rpm 540 rpm @ 2058 engine rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I Category I & II adjustable, with telescopic stabilizers Hitch Lift Capacity 3,306 lb 3527 lb Hitch Lift Capacity (at 24”) 2,425 lb Not Published Lift Control Type Position control Position & draft control ▶ Transmission & DrivetrainTransmission Type HST (hydrostatic) Full constant mesh No. of Speeds 3-range hydrostatic 8F / 2R Max Travel Speed (Forward) 18 mph 17.6 mph Max Travel Speed (Reverse) 17.95 mph 7.53 mph Clutch Not Published Dual Differential Lock & Limited Slip Options Differential lock (standard) Foot-operated differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Hydrostatic power steering Brakes Wet, multi-disc Fully enclosed dry disc Seat Suspension & Adjustability Suspension seat mComfort mechanical suspension seat Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 120.9 in 127.0 in Overall Width 55.6 in 82.6 in Wheelbase 65.7 in 76.7 in Ground Clearance 13.1 in 8.7 in Min. Turn Radius without Brakes 124.8 in (left); 121.3 in (right) 147.63 in Height to Top of ROPS Not Published 93.7 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 89.3 in Not Published ▶ WeightTractor Weight (Base) 3,587 lb 5192 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader 4,595 lb Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R4 Industrial R4 Industrial (standard); R1 Agricultural (optional) R1 Agricultural - Front 7-16 9.5X16 R1 Agricultural - Rear 11.2-24 12.4X28 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front 28x8.5-14 12.6X16.5 R4 Industrial - Rear 15-19.5 16.9X24 ▶ Loader & AttachmentsQuick Attach Loader System BL150C: quick attachment assembly Skid-steer style quick-attach coupler Loader Model BL150C 4550-4L Loader Lift Height BL150C: 104.9 in 4550-4L: 116.6 in Loader Lift Capacity (Full Height) BL150C: 2,200 lb 4550-4L: 2,866 lb at pivot pins to full height Loader Breakout Force BL150C: 3,422 lb 4550-4L: 4,978 lb at pivot pins ▶ WarrantyWarranty Length & Coverage Bumper-to-bumper 24 months or 2,000 hours (parts and labor); powertrain 72 months or 3,000 hours for non-commercial use (36 months or 2,000 hours rental and commercial); loaders and backhoes 12 months 7-Year Limited Powertrain Warranty ▶ ITC Company AccessoriesAccessories that fit None tagged yet
