TYM 4820C vs TYM 4815C | Side-by-side comparison | ITC Resource Center
Compare Tractors

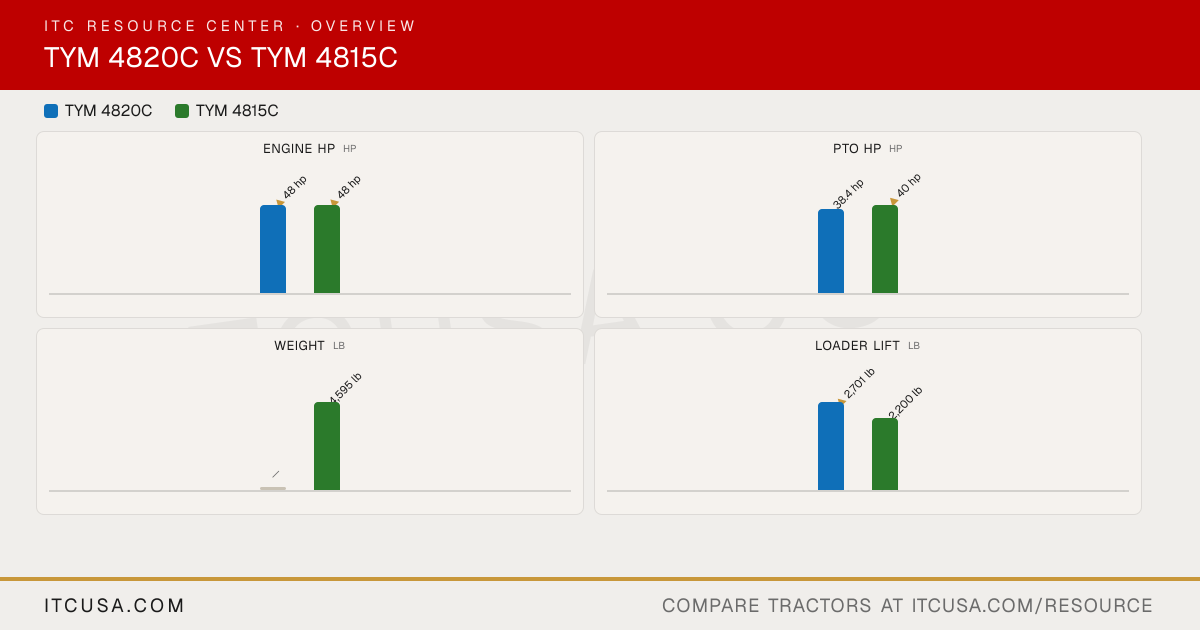

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM4820C
TYM4815C
Engine Manufacturer
TYM
TYM
Engine Model
T2300N2
T2300N2
Engine Type
4-cylinder, naturally aspirated diesel
4-cylinder, naturally aspirated diesel
No. of Cylinders
4
4
Displacement
139.5 in³
139.5 in³
Rated Engine Speed
2600 rpm
2600 rpm
Engine Power (Gross)
48 hp
48 hp
PTO Power
38.4 hp
40 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Dry element
Dry element
Fuel System
IDI (indirect injection)
IDI
Alternator
70 A, 12 V
70 A, 12 V
Pump Type
Dual gear pump
Dual gear pump
Implement Flow
11.4 gpm
11.4 gpm
Steering Flow
5.2 gpm
5.2 gpm
Total Hydraulic Flow
16.5 gpm
16.5 gpm
Overall Hydraulic Pump Flow
16.5 gpm
16.5 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
4
Rear: 0 (loader: 4)
No. of Optional Remote Valves
Not Published
Up to 4
Fuel Tank Capacity
11.8 gal
7.1 gal
Coolant Capacity
8.3 qt
6.2 qt
Crankcase Capacity
4.8 qt
4.8 qt
Transmission / Hydraulic System Capacity
4820C: 10.3 gal; 4820CH: 11.1 gal
9.8 gal
Front Axle Fluid Capacity
6.8 qt
6.8 qt
PTO Type
Independent
Independent
PTO Rear
540/750 rpm
540 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
3,306 lb
3,306 lb
Hitch Lift Capacity (at 24”)
2,425 lb
2,425 lb
Lift Control Type
Position control
Position control
Transmission Type
4820C: Synchromesh; 4820CH: HST
HST (hydrostatic)
No. of Speeds
4820C: F16 x R16; 4820CH: 4-Range
3-range hydrostatic
Max Travel Speed (Forward)
4820C: 16 mph; 4820CH: 19.5 mph
18 mph
Max Travel Speed (Reverse)
4820C: 15.2 mph; 4820CH: 19.5 mph
17.95 mph
Clutch
4820C: Dry single type; 4820CH: N/A (HST)
Not Published
Differential Lock & Limited Slip Options
Standard differential lock
Differential lock (standard)
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic
Brakes
Wet, multi-disc
Wet, multi-disc
Seat Suspension & Adjustability
Suspension seat
Suspension seat
Front Axle Type
4WD (selectable 2WD/4WD)
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Width
64.9 in
55.6 in
Wheelbase
71.1 in
65.7 in
Ground Clearance
15.5 in
13.1 in
Min. Turn Radius without Brakes
L: 128.7 in; R: 126.0 in
124.8 in (left); 121.3 in (right)
Height to Top of ROPS
Not Published
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
97 in
89.3 in
Overall Length
127.4 in (with 3-point hitch)
120.9 in (with 3-point hitch)
Tractor Weight (Base)
4,349 lb
3,587 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
4,595 lb (3,587 + 1,008, computed; BL150C loader total weight)
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural, R4 Industrial
R1 Agricultural - Front
9.5-16
7-16
R1 Agricultural - Rear
13.6-26
11.2-24
R3 Turf - Front
27x8.5-15 / 29x12.5-15
Not Published
R3 Turf - Rear
41x14-20 / 44x18-20
Not Published
R4 Industrial - Front
12-16.5
28x8.5-14
R4 Industrial - Rear
17.5Lx24
15-19.5
Quick Attach Loader System
BL200C: Quick attach mechanism
BL150C: quick attachment assembly
Loader Model
BL200C
BL150C
Loader Lift Height
BL200C: 106.6 in
BL150C: 104.9 in
Loader Lift Capacity (Full Height)
BL200C: 2,701 lb (at pivot pin)
BL150C: 2,200 lb (at pivot pin)
Loader Breakout Force
BL200C: 3,660 lb (at pivot pin, ground level)
BL150C: 3,422 lb (at pivot pin, ground level)
Warranty Length & Coverage
Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months
Basic 24 months or 2,000 hours, parts and labor; non-commercial: powertrain 72 months or 3,000 hours; rental and commercial: powertrain 36 months or 2,000 hours; loaders and backhoes 12 months
