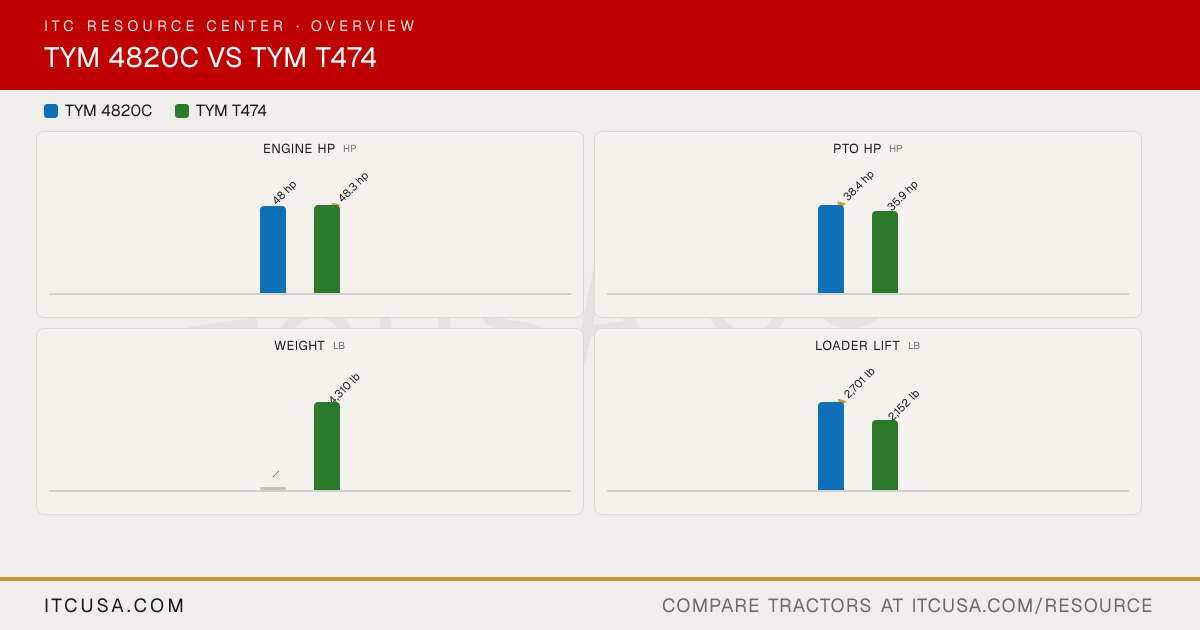

▶ EngineEngine Manufacturer TYM TYM Engine Model T2300N2 T2300N2 Engine Type 4-cylinder, naturally aspirated diesel 4-cylinder, naturally aspirated diesel No. of Cylinders 4 4 Displacement 139.5 in³ 139.5 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 48 hp 48.3 hp PTO Power 38.4 hp 35.4 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry element Single dry Fuel System IDI (indirect injection) IDI Alternator 70 A, 12 V 70 A, 12 V ▶ HydraulicsPump Type Dual gear pump Dual gear pump Implement Flow 11.4 gpm 7.7 gpm Steering Flow 5.2 gpm 4.2 gpm Total Hydraulic Flow 16.5 gpm 11.9 gpm Overall Hydraulic Pump Flow 16.5 gpm 11.9 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 4 1 No. of Optional Remote Valves Not Published Double rear remote with detent (accessory) ▶ Fluid CapacityFuel Tank Capacity 11.8 gal 9.0 gal Coolant Capacity 8.3 qt 6.9 qt Crankcase Capacity 4.8 qt 6.8 qt Transmission / Hydraulic System Capacity 4820C: 10.3 gal; 4820CH: 11.1 gal 8.5 gal Front Axle Fluid Capacity 6.8 qt 8.7 qt ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540/750 rpm 540 rpm Mid-PTO Availability Not Published Optional (Mid-PTO kit accessory) Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 3,306 lb 2,690 lb Hitch Lift Capacity (at 24”) 2,425 lb 1,764 lb Lift Control Type Position control Position ▶ Transmission & DrivetrainTransmission Type 4820C: Synchromesh; 4820CH: HST Mechanical No. of Speeds 4820C: F16 x R16; 4820CH: 4-Range 12 forward / 12 reverse Max Travel Speed (Forward) 4820C: 16 mph; 4820CH: 19.5 mph 14.9 mph Max Travel Speed (Reverse) 4820C: 15.2 mph; 4820CH: 19.5 mph Not Published Clutch 4820C: Dry single type; 4820CH: N/A (HST) Dry single plate Differential Lock & Limited Slip Options Standard differential lock Differential lock (pedal) ▶ Chassis, Steering & ControlsFrame Type Not Published Transmission case, clutch, clutch housing, engine and front axle support bolted together to form a rigid unit Steering Hydrostatic Hydrostatic Brakes Wet, multi-disc Wet disc Seat Suspension & Adjustability Suspension seat Fore and aft sliding seat with cushion strength adjustment Front Axle Type 4WD (selectable 2WD/4WD) 4WD center-pivot, reverse Elliott type Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 64.9 in 54.5 in Wheelbase 71.1 in 69.7 in Ground Clearance 15.5 in 12.8 in Min. Turn Radius without Brakes L: 128.7 in; R: 126.0 in 117.5 in Height to Top of ROPS Not Published 94.5 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 97 in Not Published Overall Length 127.4 in (with 3-point hitch) 131 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 4,349 lb 3,289 lb Weight with ROPS and Loader Not Published 4,310 lb (3,289 + 1,021, computed) Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front 9.5-16 Farm Specialist 8.0-16 NHS TL 6PR (standard); Farm Specialist 7-16 NHS TL 6PR (option) R1 Agricultural - Rear 13.6-26 Farm Specialist 12.4-24 NHS TL 6PR (standard); Farm Specialist 11.2-24 NHS TL 6PR (option) R3 Turf - Front 27x8.5-15 / 29x12.5-15 Multi-Trac CS 27x10.5-15 NHS TL 4PR (standard); Multi-Trac CS 27x8.50-15 NHS TL 4PR (option) R3 Turf - Rear 41x14-20 / 44x18-20 12.5x20 (standard); Multi-Trac CS 41x14.00-20 NHS TL 4PR (option) R4 Industrial - Front 12-16.5 Trac Chief 10-16.50 NHS TL 6PR R4 Industrial - Rear 17.5Lx24 Xtra Grip 43x16.00-20 NHS TL 6PR ▶ Loader & AttachmentsQuick Attach Loader System BL200C: Quick attach mechanism TX47: skid type quick attach (TX47-E: Euro type) Loader Model BL200C TX47 Loader Lift Height BL200C: 106.6 in TX47: 105.6 in Loader Lift Capacity (Full Height) BL200C: 2,701 lb (at pivot pin) TX47: 2,152 lb (at pivot pin) Loader Breakout Force BL200C: 3,660 lb (at pivot pin, ground level) TX47: 3,198 lb (at pivot pin, ground level) ▶ WarrantyWarranty Length & Coverage Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months Basic 24 months or 2,000 hours, parts and labor; non-commercial: powertrain 72 months or 3,000 hours; rental and commercial: powertrain 36 months or 2,000 hours; loaders and backhoes 12 months ▶ ITC Company AccessoriesAccessories that fit
