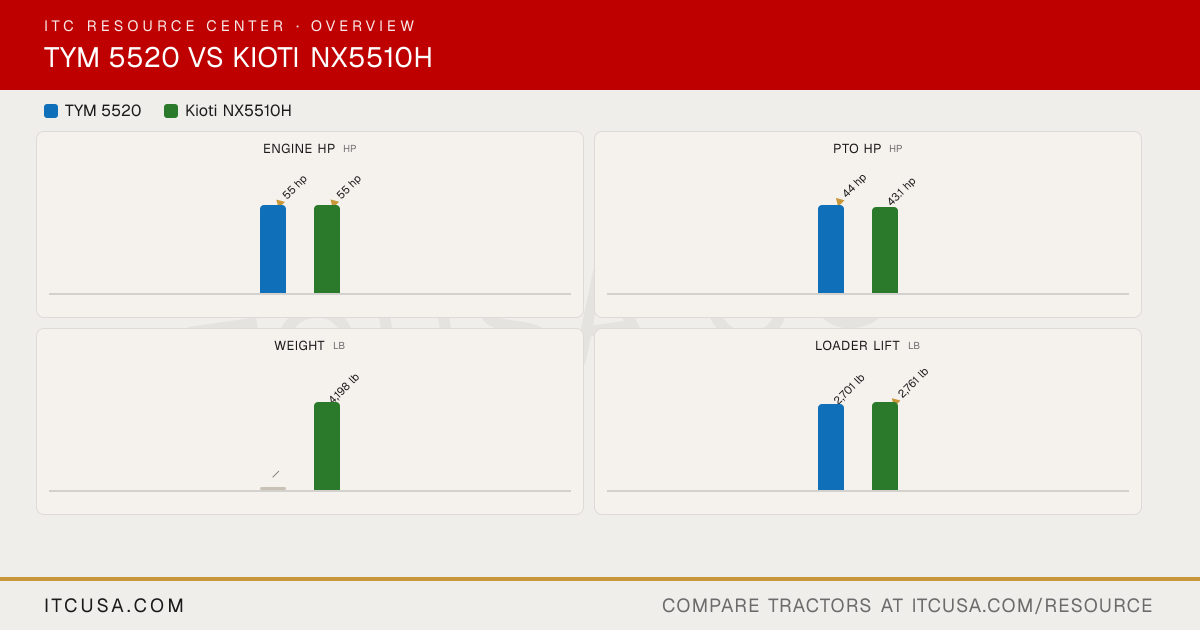

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time)
Pump Type
Dual gear pump
Gear
Steering Flow
5.2 gpm
8.2 gpm
Implement Flow
11.4 gpm
9.6 gpm
Total Hydraulic Flow
16.5 gpm
17.90 gpm
Hydraulic System Type
Not Published
Open Center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
16.5 gpm
17.90 gpm
No. of Optional Remote Valves
Up to 4
1
No. of Standard Remote Valves
0
1
PTO Rear
540/750 rpm
540 rpm
PTO Type
Independent
Independent
Lift Control Type
Position control
Position with Draft Control
Hitch Lift Capacity
3,306 lb
3,177 lbs (at 24 in)
Mid-PTO Availability
Not Published
Optional (2,000 rpm)
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity (at 24”)
2,425 lb
3,177 lbs
R3 Turf - Rear
41x14-20 / 44x18-20
21.5lx16.1
R3 Turf - Front
27x8.5-15 / 29x12.5-15
29x12.5-15
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
17.5Lx24
17.5-24
R4 Industrial - Front
12-16.5
10-16.5
R1 Agricultural - Rear
13.6-26
13.6-28
R1 Agricultural - Front
9.5-16
9.5-16
Coolant Capacity
6.2 qt
2.0 gal
Crankcase Capacity
4.8 qt
1.58 gal
Fuel Tank Capacity
11.8 gal
14.8 gal
Front Axle Fluid Capacity
6.8 qt
1.8 gal
Transmission / Hydraulic System Capacity
HST: 11.1 gal; Gear: 10.3 gal
11.89 gal
Loader Lift Height
106.6 in
108.3 in
Loader Breakout Force
3,660 lb
3,727 lb
Quick Attach Loader System
BL200: Quick attach assembly (lever-lock)
Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
