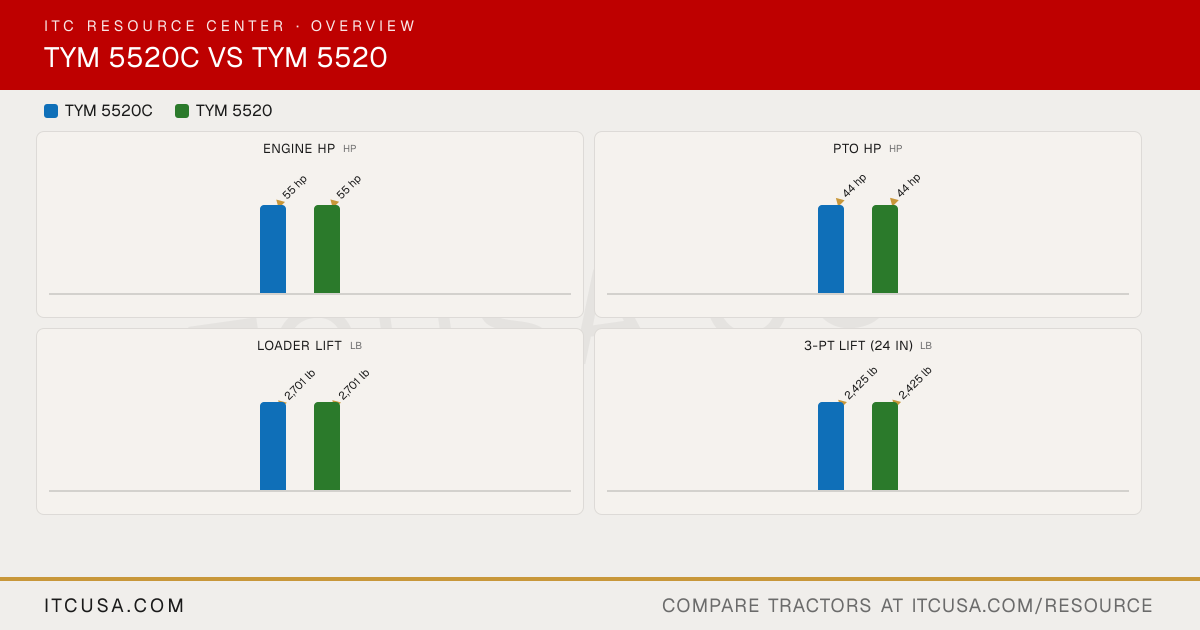

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM5520C
TYM5520
Engine Manufacturer
TYM
TYM
Engine Model
T2300T3
T2300T3
Engine Type
4-cylinder, turbocharged diesel
4-cylinder, turbocharged diesel
No. of Cylinders
4
4
Displacement
139.5 in³
139.5 in³
Rated Engine Speed
2600 rpm
2600 rpm
Engine Power (Gross)
55 hp
55 hp
PTO Power
44 hp
44 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Dry element
Dry element
Fuel System
IDI (indirect injection)
IDI (indirect injection)
Alternator
70 A, 12 V
50 A, 12 V
Pump Type
Dual gear pump
Dual gear pump
Implement Flow
11.4 gpm
11.4 gpm
Steering Flow
5.2 gpm
5.2 gpm
Total Hydraulic Flow
16.5 gpm
16.5 gpm
Overall Hydraulic Pump Flow
16.5 gpm
16.5 gpm
Hydraulic System Type
Not Published
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
4
None standard (optional, up to 4)
No. of Optional Remote Valves
Not Published
Up to 4
Fuel Tank Capacity
11.8 gal
11.8 gal
Coolant Capacity
8.3 qt
6.2 qt
Crankcase Capacity
4.8 qt
4.8 qt
Transmission / Hydraulic System Capacity
5520C: 10.3 gal; 5520CH: 11.1 gal
5520R: 10.3 gal; 5520H: 11.1 gal
Front Axle Fluid Capacity
6.8 qt
6.8 qt
PTO Type
Independent
Independent
PTO Rear
540/750 rpm
540/750 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
3,306 lb
3,306 lb
Hitch Lift Capacity (at 24”)
2,425 lb
2,425 lb
Lift Control Type
Position control
Position control
Transmission Type
5520C: Synchromesh; 5520CH: HST
5520R: Synchromesh; 5520H: HST
No. of Speeds
5520C: F16 x R16; 5520CH: 4-Range
5520R: F16 x R16; 5520H: 4-Range
Max Travel Speed (Forward)
5520C: 16 mph; 5520CH: 19.5 mph
5520R: 16 mph; 5520H: 19.5 mph
Max Travel Speed (Reverse)
5520C: 15.2 mph; 5520CH: 19.5 mph
5520R: 15.2 mph; 5520H: 19.5 mph
Clutch
5520C: Dry single type; 5520CH: N/A (HST)
5520R: Dry single type; 5520H: N/A (HST)
Differential Lock & Limited Slip Options
Standard differential lock
Standard differential lock
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic
Brakes
Wet, multi-disc
Wet, multi-disc
Seat Suspension & Adjustability
Suspension seat
Suspension seat
Front Axle Type
4WD (selectable 2WD/4WD)
4WD (selectable 2WD/4WD)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
127.4 in
127.4 in
Overall Width
64.9 in
64.9 in
Wheelbase
71.1 in
71.1 in
Ground Clearance
15.5 in
15.5 in
Min. Turn Radius without Brakes
L: 128.7 in; R: 126.0 in
L: 128.7 in; R: 126.0 in
Height to Top of ROPS
Not Published
98.4 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
97 in
Not Published
Tractor Weight (Base)
4,349 lb
3,836 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front
9.5-16
9.5-16
R1 Agricultural - Rear
13.6-26
13.6-26
R3 Turf - Front
27x8.5-15 / 29x12.5-15
27x8.5-15 / 29x12.5-15
R3 Turf - Rear
41x14-20 / 44x18-20
41x14-20 / 44x18-20
R4 Industrial - Front
12-16.5
12-16.5
R4 Industrial - Rear
17.5Lx24
17.5Lx24
Quick Attach Loader System
BL200C: Quick attach mechanism
BL200: Quick attach mechanism
Loader Model
BL200C
BL200
Loader Lift Height
BL200C: 106.6 in
BL200: 106.6 in
Loader Lift Capacity (Full Height)
BL200C: 2,701 lb
BL200: 2,701 lb
Loader Breakout Force
BL200C: 3,660 lb
BL200: 3,660 lb
Warranty Length & Coverage
Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3,000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes
Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3,000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes
