TYM 5835 vs Bobcat CT5558 | Side-by-side comparison | ITC Resource Center
Compare Tractors

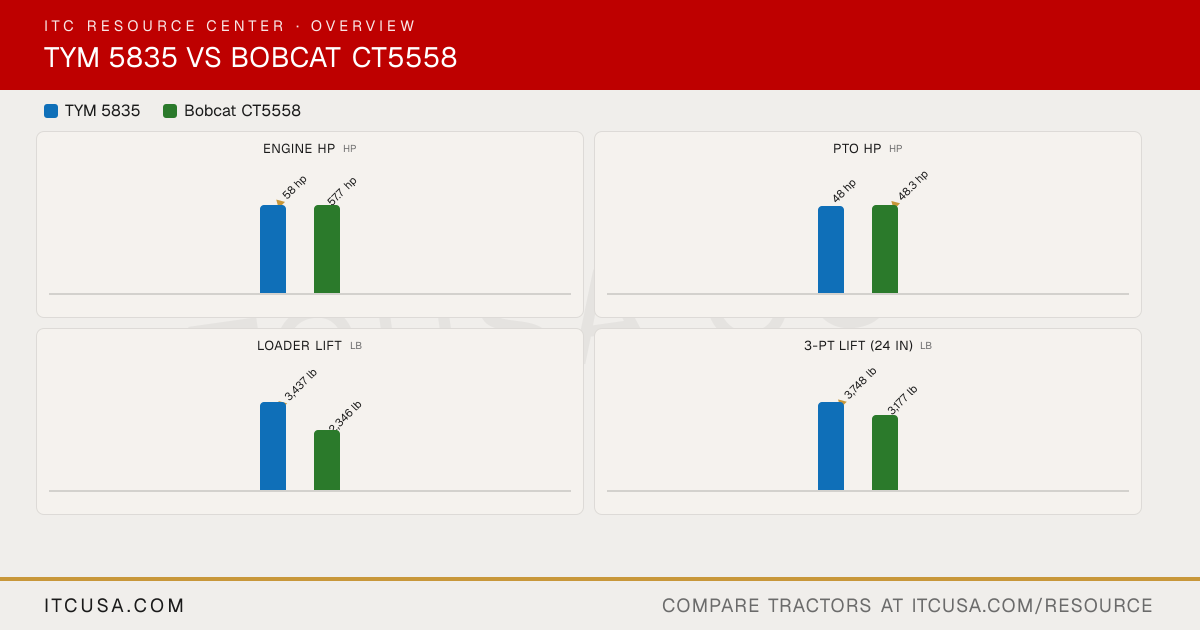

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM5835
BobcatCT5558
PTO Power
48 hp
48.3 hp
Alternator
70 A, 12 V
Not Published
Air Cleaner
Dry element
Not Published
Engine Type
4-cylinder, turbocharged diesel
Diesel
Fuel System
IDI
Not Published
Displacement
139.5 in³
109.8 in³
No. of Cylinders
4
3
Rated Engine Speed
2600 rpm
2750 rpm
Cooling System Type
Not Published
Not Published
Engine Manufacturer
TYM
Not Published
Engine Power (Gross)
58 hp
57.7 hp
Engine Emissions Constraints
Tier 4
Not Published
Weight with ROPS and Loader
Not Published
Not Applicable
Weight with Cab and Loader
Not Applicable
Not Published
Warranty Length & Coverage
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
24 months / 1,500 hours (whichever occurs first)
Pump Type
Single gear pump
Not Published
Steering Flow
5.2 gpm
8.2 gpm
Implement Flow
11.4 gpm
9.6 gpm
Total Hydraulic Flow
16.5 gpm
17.8 gpm
Hydraulic System Type
Not Published
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
16.5 gpm
17.8 gpm
No. of Optional Remote Valves
Not Published
2
No. of Standard Remote Valves
Loader: 4; Rear: 2
1
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Independent
Lift Control Type
Mechanical
Position with Draft Control
Hitch Lift Capacity
4,409 lb
3,177 lb
Mid-PTO Availability
Not Published
Optional: 2,103 rpm
Category, 3-Point Hitch
Category II
Category 1
Hitch Lift Capacity (at 24”)
3,748 lb
3,177 lb
R3 Turf - Rear
Not Published
Not Published
R3 Turf - Front
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R4 Industrial
Not Published
R4 Industrial - Rear
16.9-24
Not Published
R4 Industrial - Front
10.5/80-18
Not Published
R1 Agricultural - Rear
14.9-28
Not Published
R1 Agricultural - Front
9.5-20
Not Published
Coolant Capacity
6.2 qt
Not Published
Crankcase Capacity
4.8 qt
Not Published
Fuel Tank Capacity
15.3 gal
14.8 gal
Front Axle Fluid Capacity
6.8 qt
Not Published
Transmission / Hydraulic System Capacity
11.6 gal
Not Published
Loader Lift Height
117.5 in
Not Published
Loader Breakout Force
4,742 lb
Not Published
Quick Attach Loader System
BL350: Quick attachment assembly
Not Published
Loader Lift Capacity (Full Height)
3,437 lb
2,346 lb
Clutch
Wet, multi-disc
Not Applicable
No. of Speeds
F12 x R12
Not Applicable
Transmission Type
Power shuttle
Infinite, 3 Range Hydrostatic (Servo control valve with Electric sol.)
