TYM 5835 vs Kubota MX5400 | Side-by-side comparison | ITC Resource Center
Compare Tractors

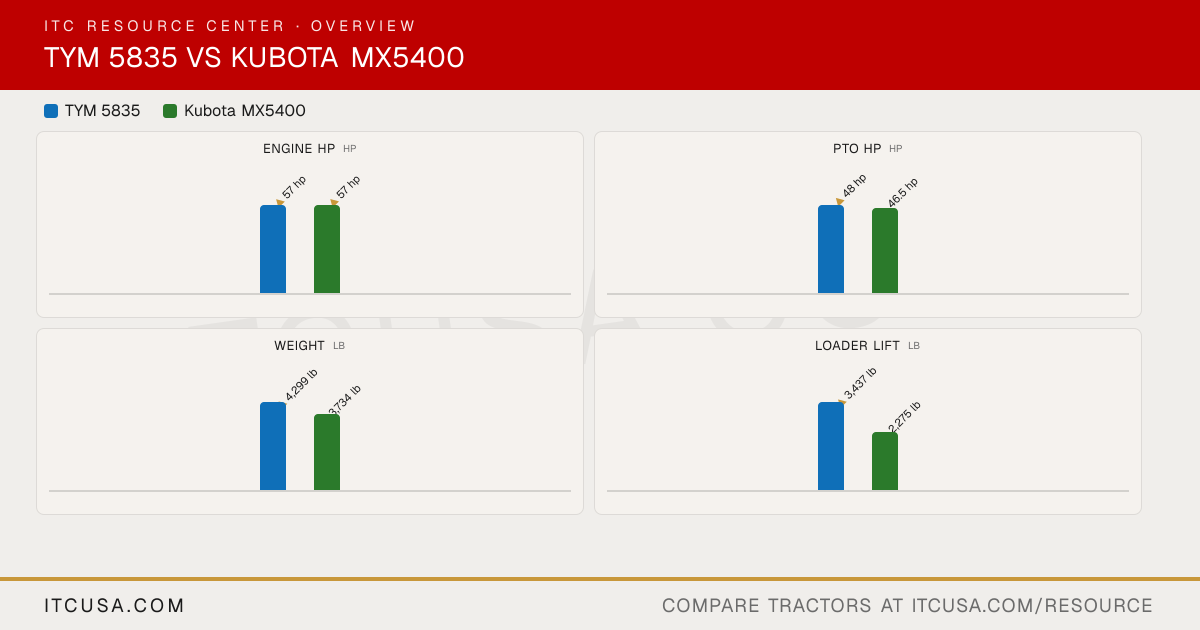

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM5835
KubotaMX5400
Engine Manufacturer
TYM
Kubota
Engine Model
T2300T3
V2403CR-T
Engine Type
4-cylinder, turbocharged diesel
Liquid-cooled, diesel, 4-cylinder, Turbocharged
No. of Cylinders
4
4
Displacement
139.5 in³
148.6 in³
Rated Engine Speed
2600 rpm
2700 rpm
Engine Power (Gross)
57 hp
57 hp
PTO Power
48 hp
46.5 hp
Engine Emissions Constraints
Tier 4
Not Published
Cooling System Type
Not Published
Liquid-cooled
Air Cleaner
Dry element
Dry-dual element
Fuel System
IDI (indirect injection)
Common Rail System (CRS), direct injection
Alternator
70 A, 12 V
45 A, 12 V
Pump Type
Single gear pump
Gear
Implement Flow
11.4 gpm
9.5 gpm
Steering Flow
5.2 gpm
4.9 gpm
Total Hydraulic Flow
16.5 gpm
14.4 gpm (9.5 + 4.9, computed)
Overall Hydraulic Pump Flow
16.5 gpm
14.4 gpm (9.5 + 4.9, computed)
Hydraulic System Type
Not Published
Open Center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Loader: 4; Rear: 2
Not Published
No. of Optional Remote Valves
Not Published
Maximum 3 (opt)
Fuel Tank Capacity
15.3 gal
13.5 gal
Coolant Capacity
6.2 qt
6.9 qt
Crankcase Capacity
4.8 qt
7.4 qt
Transmission / Hydraulic System Capacity
11.6 gal
11.6 gal
Front Axle Fluid Capacity
6.8 qt
8.9 qt
PTO Type
Independent
Live independent, hydraulic PTO with PTO brake, wet clutch
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category II
I & II
Hitch Lift Capacity
4,409 lb
2,870 lb
Hitch Lift Capacity (at 24”)
3,748 lb
2,310 lb
Lift Control Type
Mechanical
Position (std), Draft (opt)
Transmission Type
Power shuttle
3-range hydrostatic (HST)
No. of Speeds
F12 x R12
3-range
Max Travel Speed (Forward)
19.9 mph
DT (2WD/4WD): 17.3 mph; HST (4WD): 17.7 mph
Max Travel Speed (Reverse)
18.9 mph
DT (2WD/4WD): 15.9 mph; HST (4WD): 16.0 mph
Clutch
Wet, multi-disc
No clutch
Differential Lock & Limited Slip Options
Standard differential lock
Rear differential lock standard (mechanical)
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic power steering
Brakes
Wet, multi-disc
Mechanical wet disc
Seat Suspension & Adjustability
Suspension seat
High-back suspension seat (optional arm rests)
Front Axle Type
4WD (selectable 2WD/4WD)
Bevel gear type (4WD)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
1,650 lb
Overall Width
68.9 in
69.7 in
Wheelbase
78.7 in
74.6 in
Ground Clearance
18.1 in
15.2 in
Min. Turn Radius without Brakes
L: 124.4 in; R: 124.0 in
8.9 ft (with brake applied)
Height to Top of ROPS
102.8 in
95.7 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Applicable
Overall Length
136.4 in (with 3-point hitch)
125.9 in (without 3-point hitch)
Tractor Weight (Base)
4,299 lb
3,734 lb (with ROPS)
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R4 Industrial
Standard ag: 9.5-16 / 14.9-26
R1 Agricultural - Front
9.5-20
9.5-16
R1 Agricultural - Rear
14.9-28
14.9-26
R3 Turf - Front
Not Published
Not Published
R3 Turf - Rear
Not Published
Not Published
R4 Industrial - Front
10.5/80-18
Not Published
R4 Industrial - Rear
16.9-24
Not Published
Quick Attach Loader System
BL350: Quick attach mechanism
1065A: 2-Lever Quick Coupler for Loader Attachment
Loader Model
BL350
LA1065
Loader Lift Height
BL350: 117.5 in
111.2 in (at pivot pin)
Loader Lift Capacity (Full Height)
BL350: 3,437 lb (at pivot pin)
2,275 lb (at pivot pin)
Loader Breakout Force
BL350: 4,742 lb (at pivot pin, ground level)
3,102 lbf
Warranty Length & Coverage
Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months
Residential: basic 24 months or 2,000 hours, powertrain 72 months or 3,000 hours; commercial: basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours
