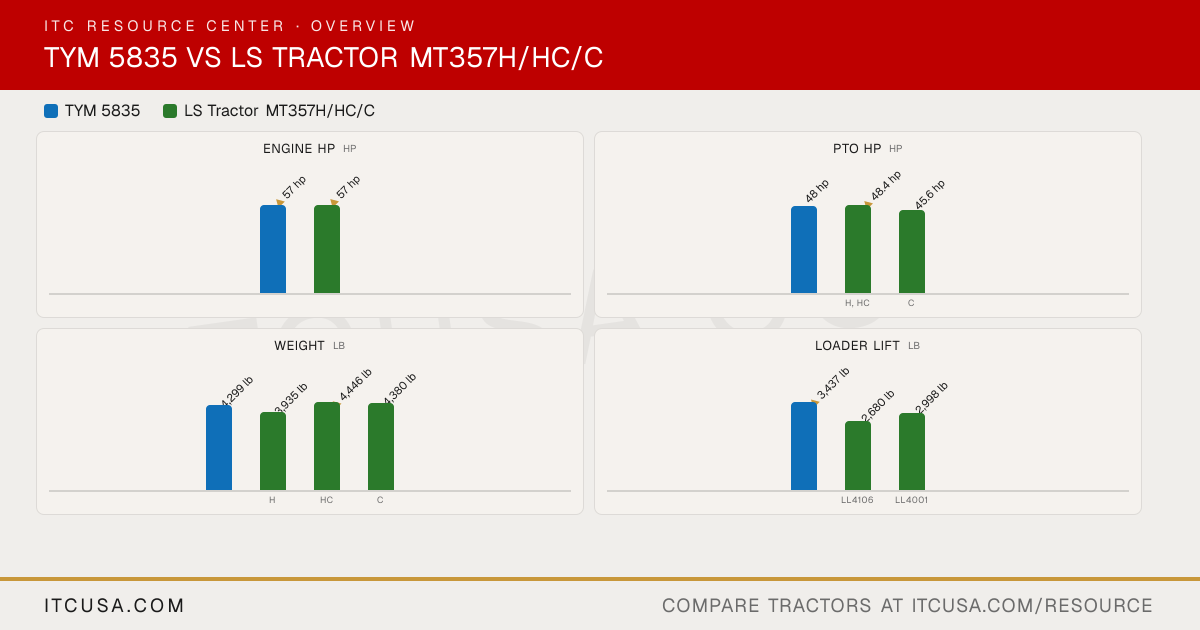

▶ EngineEngine Manufacturer TYM LS Mtron Engine Model T2300T3 L3C19-T Engine Type 4-cylinder, turbocharged diesel 3 Cylinder, Liquid-cooled, Diesel, TC, CRDI No. of Cylinders 4 3 Displacement 139.5 in³ 114.7 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 57 hp 57 hp PTO Power 48 hp H, HC: 48.4 hp; C: 45.6 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Not Published Liquid-cooled Air Cleaner Dry element Dry Fuel System IDI (indirect injection) Common rail direct injection (CRDI) Alternator 70 A, 12 V 70 A, 12 V ▶ HydraulicsPump Type Single gear pump Gear pump, engine drive Implement Flow 11.4 gpm 8.2 gpm Steering Flow 5.2 gpm H: 5.5 gpm; HC: 6.8 gpm; C: 4.1 gpm Total Hydraulic Flow 16.5 gpm H: 13.7 gpm; HC: 15.0 gpm; C: 12.3 gpm Overall Hydraulic Pump Flow 16.5 gpm H: 13.7 gpm; HC: 15.0 gpm; C: 12.3 gpm Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Loader: 4; Rear: 2 3 Pair (2 Detent, 1 STD) No. of Optional Remote Valves Not Published 2 Pair (1 Detent, 1 STD) ▶ Fluid CapacityFuel Tank Capacity 15.3 gal H: 10.6 gal; HC, C: 12.4 gal Coolant Capacity 6.2 qt 2.3 gal Crankcase Capacity 4.8 qt 1.6 gal Transmission / Hydraulic System Capacity 11.6 gal 11.4 gal Front Axle Fluid Capacity 6.8 qt 2.2 gal ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published Optional (2,000 rpm) Category, 3-Point Hitch Category II Category II Hitch Lift Capacity 4,409 lb 2,755 lb Hitch Lift Capacity (at 24”) 3,748 lb 2,469 lb Lift Control Type Mechanical Position & Draft ▶ Transmission & DrivetrainTransmission Type Power shuttle H, HC: Hydrostatic (HST); C: Synchro shuttle No. of Speeds F12 x R12 H, HC: Infinite, 3 ranges (HST); C: F16 x R16 Max Travel Speed (Forward) 19.9 mph Not Published Max Travel Speed (Reverse) 18.9 mph Not Published Clutch Wet, multi-disc Gear: Dry single clutch; HST: Not Applicable Differential Lock & Limited Slip Options Standard differential lock Mechanical pedal type ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Hydrostatic Power Steering Brakes Wet, multi-disc Wet, Multi-disc Seat Suspension & Adjustability Suspension seat Not Published Front Axle Type 4WD (selectable 2WD/4WD) Mechanical front-wheel drive (4WD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 68.9 in 62.5 in Wheelbase 78.7 in 73.2 in Ground Clearance 18.1 in Not Published Min. Turn Radius without Brakes L: 124.4 in; R: 124.0 in 10.3 ft Height to Top of ROPS 102.8 in H: 95 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published HC, C: 90 in Overall Length 136.4 in (with 3-point hitch) 133 in (frame to link) ▶ WeightTractor Weight (Base) 4,299 lb H: 3,935 lb; HC: 4,446 lb; C: 4,380 lb Weight with ROPS and Loader Not Published H: 4,715 lb (3,935 + 780, computed); LL4106 loader without bucket Weight with Cab and Loader Not Published HC: 5,226 lb (4,446 + 780, computed); C: 5,160 lb (4,380 + 780, computed); LL4106 loader without bucket ▶ Tire OptionsTire Size & Options R1 Agricultural, R4 Industrial R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front 9.5-20 9.5-16 R1 Agricultural - Rear 14.9-28 13.6-24 R3 Turf - Front Not Published 28x8.5-15 R3 Turf - Rear Not Published 41x14-20 R4 Industrial - Front 10.5/80-18 12-16.5 R4 Industrial - Rear 16.9-24 17.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System BL350: Quick attach mechanism LL4106, LL4001: 2-lever skid-steer coupler, fits universal skid-steer attachments Loader Model BL350 LL4106; LL4001 Loader Lift Height BL350: 117.5 in LL4106: 94.4 in; LL4001: 104.3 in Loader Lift Capacity (Full Height) BL350: 3,437 lb (at pivot pin) LL4106: 2,680 lb (at pivot pin); LL4001: 2,998 lb (at pivot pin) Loader Breakout Force BL350: 4,742 lb (at pivot pin, ground level) LL4106: 4,063 lb (at pivot pin); LL4001: 4,295 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months 6-year limited powertrain warranty ▶ ITC Company AccessoriesAccessories that fit None tagged yet
