TYM 5835 vs Massey Ferguson 2860E | Side-by-side comparison | ITC Resource Center
Compare Tractors

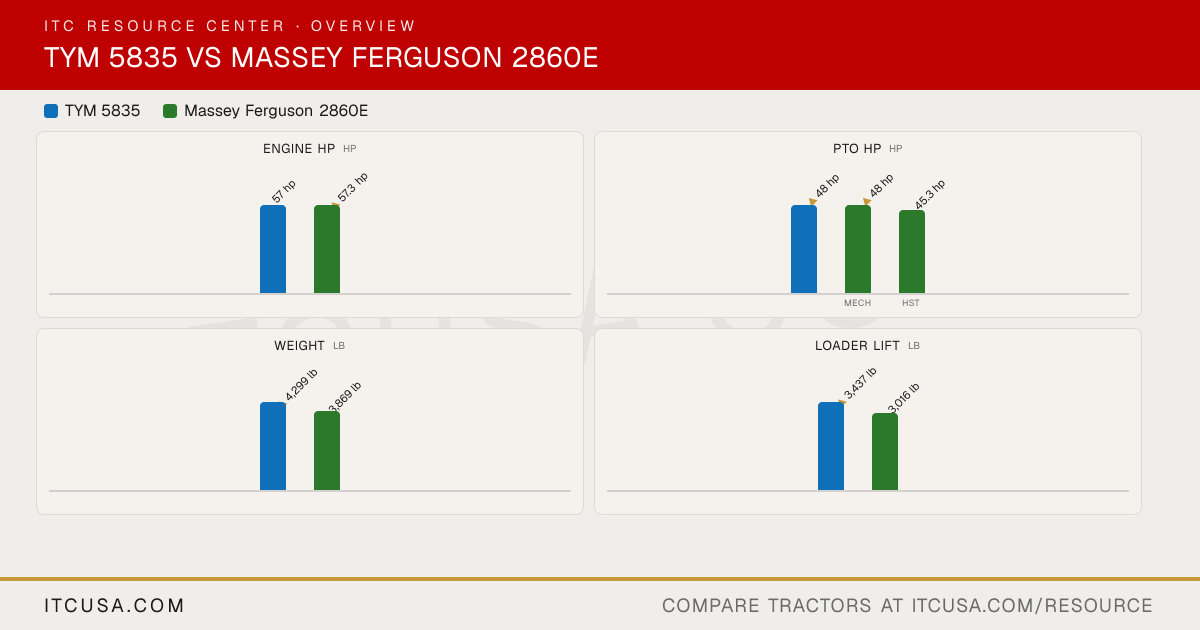

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM5835
Massey Ferguson2860E
Engine Manufacturer
TYM
Iseki
Engine Model
T2300T3
Not Published
Engine Type
4-cylinder, turbocharged diesel
4-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders
4
4
Displacement
139.5 in³
148.6 in³
Rated Engine Speed
2600 rpm
2600 rpm
Engine Power (Gross)
57 hp
57.3 hp
PTO Power
48 hp
Mech: 48 hp; HST: 45.3 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Not Published
Liquid cooled
Air Cleaner
Dry element
Not Published
Fuel System
IDI (indirect injection)
Not Published
Alternator
70 A, 12 V
Not Published
Pump Type
Single gear pump
Two gear-type pumps for steering and 3-point/remotes
Implement Flow
11.4 gpm
12.6 gpm
Steering Flow
5.2 gpm
7.0 gpm
Total Hydraulic Flow
16.5 gpm
19.6 gpm (12.6 + 7.0, computed)
Overall Hydraulic Pump Flow
16.5 gpm
19.6 gpm (12.6 + 7.0, computed)
Hydraulic System Type
Not Published
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Loader: 4; Rear: 2
Not Published
No. of Optional Remote Valves
Not Published
Not Published
Fuel Tank Capacity
15.3 gal
14 gal
Coolant Capacity
6.2 qt
Not Published
Crankcase Capacity
4.8 qt
Not Published
Transmission / Hydraulic System Capacity
11.6 gal
Not Published
Front Axle Fluid Capacity
6.8 qt
Not Published
PTO Type
Independent
Independent with SoftStart electronic modulation
PTO Rear
540 rpm
540 rpm (1-3/8 in)
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category II
Category I and II
Hitch Lift Capacity
4,409 lb
2,645 lb
Hitch Lift Capacity (at 24”)
3,748 lb
2,425 lb
Lift Control Type
Mechanical
Not Published
Transmission Type
Power shuttle
8x8 synchro shuttle or 3-range hydrostatic
No. of Speeds
F12 x R12
Mech: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range)
Max Travel Speed (Forward)
19.9 mph
Not Published
Max Travel Speed (Reverse)
18.9 mph
Not Published
Clutch
Wet, multi-disc
Not Published
Differential Lock & Limited Slip Options
Standard differential lock
Not Published
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Power steering
Brakes
Wet, multi-disc
Wet disc
Seat Suspension & Adjustability
Suspension seat
Spring-cushioned seat
Front Axle Type
4WD (selectable 2WD/4WD)
Solid cast front axle
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Width
68.9 in
70.1 in
Wheelbase
78.7 in
Not Published
Ground Clearance
18.1 in
15 in
Min. Turn Radius without Brakes
L: 124.4 in; R: 124.0 in
Not Published
Height to Top of ROPS
102.8 in
103.8 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Overall Length
136.4 in (with 3-point hitch)
132.8 in
Tractor Weight (Base)
4,299 lb
3,869 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R4 Industrial
Not Published
R1 Agricultural - Front
9.5-20
Not Published
R1 Agricultural - Rear
14.9-28
Not Published
R3 Turf - Front
Not Published
Not Published
R3 Turf - Rear
Not Published
Not Published
R4 Industrial - Front
10.5/80-18
Not Published
R4 Industrial - Rear
16.9-24
Not Published
Quick Attach Loader System
BL350: Quick attach mechanism
FLx2813: skid steer quick attach
Loader Model
BL350
FLx2813
Loader Lift Height
BL350: 117.5 in
FLx2813: 111 in (at pivot pin)
Loader Lift Capacity (Full Height)
BL350: 3,437 lb (at pivot pin)
FLx2813: 3,016 lb (at pivot pin)
Loader Breakout Force
BL350: 4,742 lb (at pivot pin, ground level)
FLx2813: 4,176 lb (at pivot pin)
Warranty Length & Coverage
Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months
