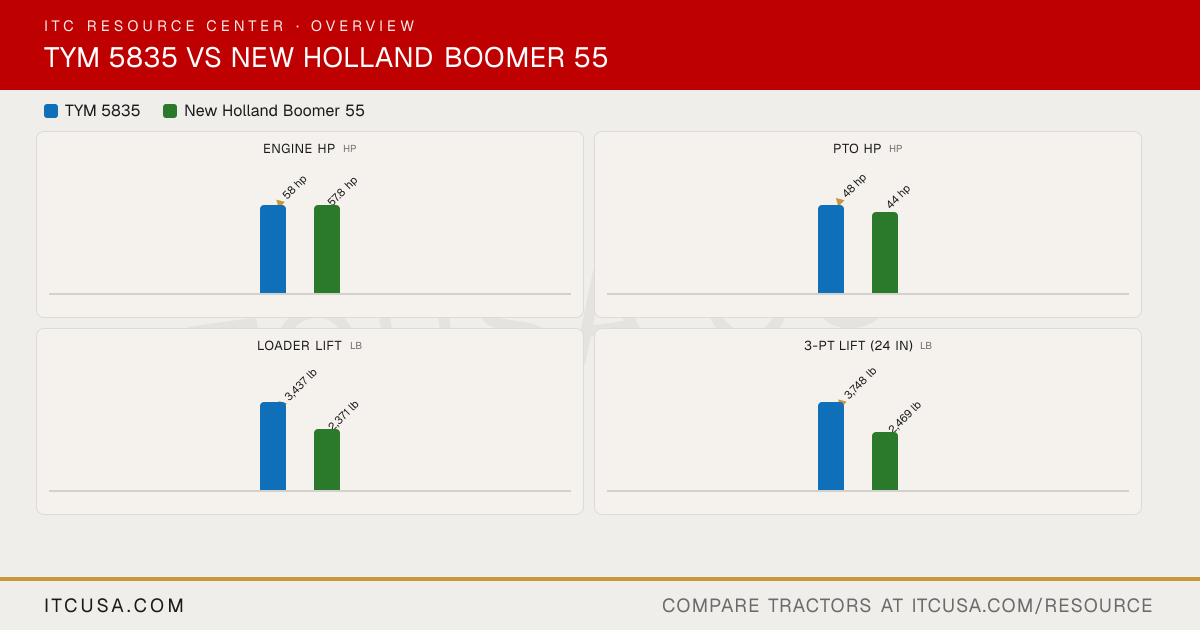

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM5835
New HollandBoomer 55
PTO Power
48 hp
44 hp
Alternator
70 A, 12 V
70 A, 12 V
Air Cleaner
Dry element
Not Published
Engine Type
4-cylinder, turbocharged diesel
Water-cooled, 4-stroke common rail turbocharged diesel
Fuel System
IDI
High pressure common rail (ECU controlled)
Displacement
139.5 in³
0.1 in³
No. of Cylinders
4
3
Rated Engine Speed
2600 rpm
2600 rpm
Cooling System Type
Not Published
Pressurized liquid w/ recirculating bypass
Engine Manufacturer
TYM
LS Mtron
Engine Power (Gross)
58 hp
57.8 hp @ 600 rpm
Engine Emissions Constraints
Tier 4
Tier 4B Final
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Applicable
Not Published
Warranty Length & Coverage
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
6-year limited powertrain, 2-year full coverage
Pump Type
Single gear pump
Gear
Steering Flow
5.2 gpm
HST: 6.3 gpm; Gear: 4.2 gpm
Implement Flow
11.4 gpm
8.5 gpm
Total Hydraulic Flow
16.5 gpm
HST: 14.8 gpm; Gear: 12.7 gpm
Hydraulic System Type
Not Published
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
16.5 gpm
HST: 14.8 gpm; Gear: 12.7 gpm
No. of Optional Remote Valves
Not Published
1
No. of Standard Remote Valves
Loader: 4; Rear: 2
1
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Independent, electro-hydraulic engagement
Lift Control Type
Mechanical
Position control
Hitch Lift Capacity
4,409 lb
2,756 lb
Mid-PTO Availability
Not Published
Optional
Category, 3-Point Hitch
Category II
Category I
Hitch Lift Capacity (at 24”)
3,748 lb
2,469 lb
R3 Turf - Rear
Not Published
41X14.00-20
R3 Turf - Front
Not Published
28X8.50-15
Tire Size & Options
R1 Agricultural, R4 Industrial
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
16.9-24
17.5LX24
R4 Industrial - Front
10.5/80-18
12X16.5
R1 Agricultural - Rear
14.9-28
13.6-24
R1 Agricultural - Front
9.5-20
9.5-16
Coolant Capacity
6.2 qt
2.3 gal
Crankcase Capacity
4.8 qt
5.8 qt
Fuel Tank Capacity
15.3 gal
11.0 gal
Front Axle Fluid Capacity
6.8 qt
2.2 gal
Transmission / Hydraulic System Capacity
11.6 gal
11.4 gal
Loader Lift Height
117.5 in
109 in
Loader Breakout Force
4,742 lb
4,081 lb
Quick Attach Loader System
BL350: Quick attachment assembly
260TLA: New Holland Quick Mount; optional skid steer quick attach plates
