TYM 7845 vs TYM T754 | Side-by-side comparison | ITC Resource Center
Compare Tractors

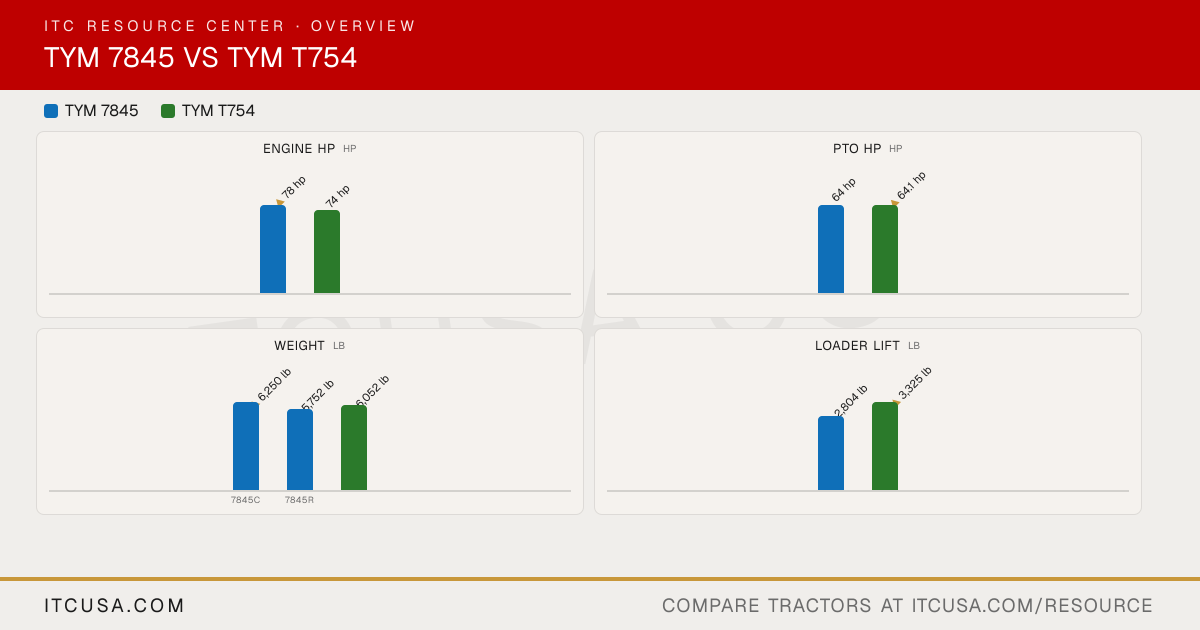

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYM7845
TYMT754
Engine Manufacturer
Kukje
Deutz
Engine Model
7845C: D3400T10-UTC-3; 7845R: D3400T1-UTR-3
TCD2.9L4
Engine Type
Vertical, 4-cycle, water-cooled diesel, direct injection, turbocharged
4-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders
4
4
Displacement
208 in³
177 in³
Rated Engine Speed
2500 rpm
2200 rpm
Engine Power (Gross)
78 hp
74 hp
PTO Power
64 hp
64.1 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Dry, double filter element
Dual dry
Fuel System
Direct injection
CRDI
Alternator
70 A, 12 V
95 A, 12 V
Pump Type
Dual gear pumps (separate steering and main pumps)
Dual gear pump
Implement Flow
12.4 gpm
10.3 gpm
Steering Flow
8.3 gpm
5.8 gpm
Total Hydraulic Flow
20.7 gpm
16.1 gpm
Overall Hydraulic Pump Flow
Not Published
16.1 gpm
Hydraulic System Type
7845C (cab): Electric over hydraulic control (Position, Draft); 7845R: Electric over hydraulic control (Position)
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
2
No. of Optional Remote Valves
Not Published
Not Published
Fuel Tank Capacity
23.8 gal
23.8 gal
Coolant Capacity
Not Published
10.6 qt
Crankcase Capacity
Not Published
8.5 qt
Transmission / Hydraulic System Capacity
Not Published
18 gal
Front Axle Fluid Capacity
Not Published
17.3 qt
PTO Type
Independent (6-spline shaft)
Independent
PTO Rear
Not Published
540/750 rpm; 540/1000 rpm (Opt)
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category II
Category II
Hitch Lift Capacity
3,820 lb
5115 lb
Hitch Lift Capacity (at 24”)
2,526 lb
3418 lb
Lift Control Type
7845C (cab): Position, draft; 7845R: Position
Position/Draft/Elec
Transmission Type
Power shuttle (hydraulic shuttle); main shifting fully synchronized (4-speed)
Synchro-shuttle
No. of Speeds
16F/16R
F16 x R16 (Creep interlock)
Max Travel Speed (Forward)
24.8 mph
24.1 mph
Max Travel Speed (Reverse)
25.6 mph
Not Published
Clutch
Wet disc
M: Dry Single Plate; PS: Wet Multi Plate
Differential Lock & Limited Slip Options
Not Published
Not Published
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic
Brakes
Wet disc
Wet disc
Seat Suspension & Adjustability
Deluxe seat with lumbar adjustment
Suspension seat
Front Axle Type
4WD, heavy-duty front axle, 56 degree steering angle each direction, no drag link
MFWD (4WD)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
152.7 in
155.7 in
Overall Width
74.5 in
76.4 in
Wheelbase
86.6 in
86.1 in
Ground Clearance
18.3 in
18.3 in
Min. Turn Radius without Brakes
Not Published
162.8 in
Height to Top of ROPS
102.6 in
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
107.8 in
103.3 in
Tractor Weight (Base)
7845C: 6,250 lb; 7845R: 5,752 lb
6052 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
7,904 lb
Tire Size & Options
Agricultural: 11.2x24 front / 16.9x30 rear
R1 Agricultural, R4 Industrial
R1 Agricultural - Front
11.2x24
FSTR 280/85R24 TL (11R24)
R1 Agricultural - Rear
16.9x30
FSTR 420/85R30 TL (16.9R30)
R3 Turf - Front
Not Published
Not Published
R3 Turf - Rear
Not Published
Not Published
R4 Industrial - Front
Not Published
Trac Chief 15-19.5 NHS TL 6PR
R4 Industrial - Rear
Not Published
Xtra Grip 18.4-24 NHS TL 8PR
Quick Attach Loader System
BL45: Quick attachment bucket mount
TX75SL: Quick attachment (Skid/Euro type)
Loader Model
BL45
TX75SL
Loader Lift Height
BL45: 111.7 in
TX75SL: 133.8 in
Loader Lift Capacity (Full Height)
BL45: 2,804 lb
TX75SL: 3,325 lb
Loader Breakout Force
BL45: 5,467 lbf
TX75SL: 5,485 lb
Warranty Length & Coverage
Four-year limited warranty
Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
