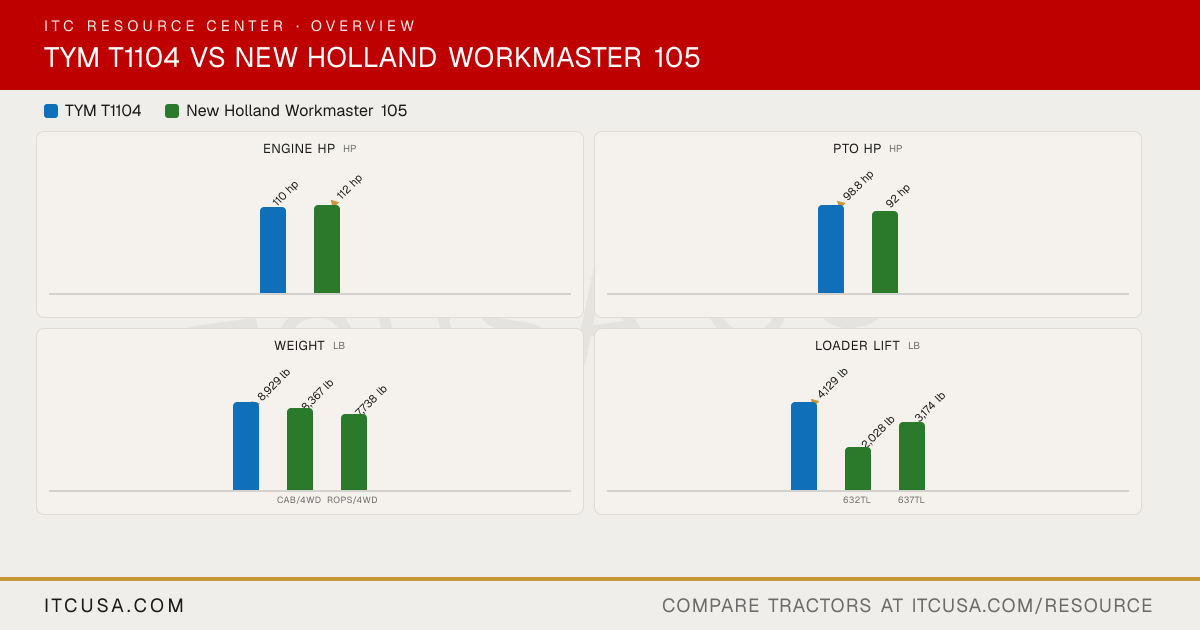

▶ EngineEngine Manufacturer Doosan Infracore FPT Engine Model D34P F5 Engine Type 4-cylinder, turbocharged diesel Turbocharged 4-cylinder diesel No. of Cylinders 4 4 Displacement 208 in³ 207 in³ Rated Engine Speed 2300 rpm 2300 rpm Engine Power (Gross) 110 hp 112 hp PTO Power 98.8 hp 92 hp Engine Emissions Constraints Tier 4 Tier 4B Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dual dry Not Published Fuel System CRDI Not Published Alternator 110 A, 12 V 120 A ▶ HydraulicsPump Type Dual gear pump Not Published Implement Flow 14.1 gpm 16.9 gpm (21.6 gpm optional) Steering Flow 7.1 gpm 9.7 gpm Total Hydraulic Flow 21.3 gpm 26.6 gpm (16.9 + 9.7, computed) Overall Hydraulic Pump Flow 21.3 gpm 26.6 gpm (16.9 + 9.7, computed) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 3 2 or 3 No. of Optional Remote Valves Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity 29.1 gal (DEF 5.3 gal) ROPS: 24 gal; Cab: 29 gal Coolant Capacity 17.4 qt Not Published Crankcase Capacity 16.8 qt Not Published Transmission / Hydraulic System Capacity 19.8 gal Not Published Front Axle Fluid Capacity 18.4 qt Not Published ▶ PTO & HitchPTO Type Independent Independent wet clutch PTO, hydraulically engaged PTO Rear 540/750/1000 rpm 540 (base); 540/540E or 540/1000 (optional) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II/I Hitch Lift Capacity 6,860 lb Not Published Hitch Lift Capacity (at 24”) 5,490 lb 3,200 lb (6,200 lb with optional ram) Lift Control Type Position/Draft/Elec Lift-O-Matic rear hitch control ▶ Transmission & DrivetrainTransmission Type Power shuttle & Hi-Lo shift 12x12 power shuttle No. of Speeds F32 x R32 12F/12R Max Travel Speed (Forward) 24.6 mph Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Wet multi plate Not Published Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Power steering Brakes Wet disc Wet disc Seat Suspension & Adjustability Not Published Cab: cloth air-suspension seat with fold-back instructor seat; ROPS: vinyl air-suspension seat Front Axle Type 4WD 4WD front axle, electronic engagement (standard) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 86 in Not Published Wheelbase 90.6 in Cab: 88.9 in; ROPS: 83.7 in Ground Clearance 18.3 in Not Published Min. Turn Radius without Brakes 162 in Not Published Height to Top of ROPS Not Published 103.0 in Height to Top of ROPS (folded) Not Published Low-Profile ROPS: 68.4 in to ROPS pivot (500/60-22.5 R1 tires); 71.9 in (19.5L24 R4 tires) Height to Top of Cab Model 107 in 105.4 in Overall Length 167.3 in (with 3-point hitch) 161.1 in (4WD) ▶ WeightTractor Weight (Base) 8,929 lb Cab/4WD: 8,367 lb; ROPS/4WD: 7,738 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R1 rear: 18.4x30 (cab and all-purpose ROPS), 500/60-22.5 (low-profile ROPS); R4 rear: 19.5L24 R1 Agricultural - Front FSTR 380/85R24 TL (14.9R24) 12.4x24 (with 18.4x30 rear); 11.2-24 (with 16.9-30 rear); 11.5/80-18 (with 500/60-22.5 low-profile rear) R1 Agricultural - Rear FSTR 460/85R34 TL (18.4R34) 18.4x30 (cab and all-purpose ROPS); 500/60-22.5 (low-profile ROPS) R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published 12.5/80-18 R4 Industrial - Rear Not Published 19.5L24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Skid-steer style (84 in bucket standard); Euro-style quick attach available Loader Model TX110SL 632TL (NSL); 637TL (MSL) Loader Lift Height TX110SL: 144.4 in 632TL: 134.5 in; 637TL: 134.5 in Loader Lift Capacity (Full Height) TX110SL: 4,129 lb (at pivot pin) 632TL: 2,028 lb; 637TL: 3,174 lb (at 31.5 in from bucket pivot pin to max height) Loader Breakout Force TX110SL: 6,025 lb (at pivot pin, ground level) Not Published ▶ WarrantyWarranty Length & Coverage Basic 24 months or 2,000 hours, parts and labor; loaders, backhoes and mid-mount mowers 12 months Not Published
