Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

TYMT1104

—

TYM2400

Comparison loaded for 2 tractors.

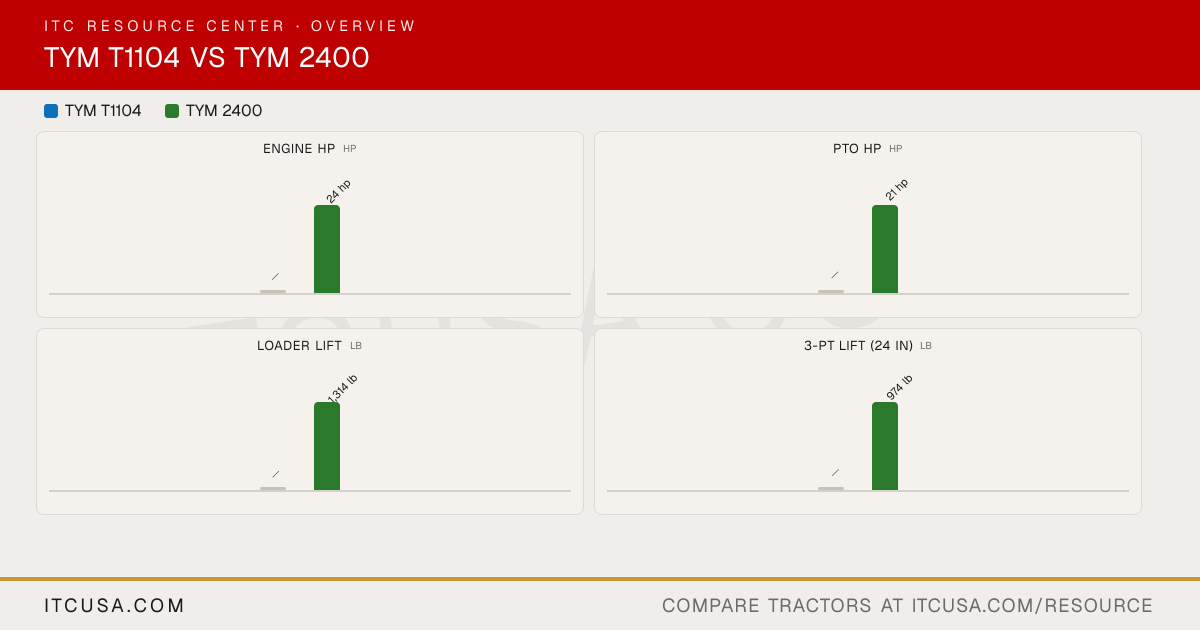

The headline numbers at a glance.

TYM T1104TYM 2400

Engine HPhp

—

24 hp

PTO HPhp

—

21 hp

Weightlb

—

Loader Liftlb

—

1,314 lb

3-Pt Lift (24 in)lb

—

974 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYMT1104	TYM2400


PTO Power	—	21 hp
Alternator	—	60 A, 12 V
Air Cleaner	—	Dry element
Engine Type	—	3-cylinder, naturally aspirated diesel
Fuel System	—	IDI
Displacement	—	71.7 in³
No. of Cylinders	—	3
Rated Engine Speed	—	2850 rpm
Cooling System Type	—	Not Published
Engine Manufacturer	—	TYM
Engine Power (Gross)	—	24 hp
Engine Emissions Constraints	—	Tier 4

Weight with ROPS and Loader	—	Not Published
Weight with Cab and Loader	—	Not Applicable

Warranty Length & Coverage	—	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	—	Dual gear pump
Steering Flow	—	3.3 gpm
Implement Flow	—	4.7 gpm
Total Hydraulic Flow	—	7.9 gpm
Hydraulic System Type	—	Open center
Rear Remote Hydraulic Flow	—	Not Published
Overall Hydraulic Pump Flow	—	7.9 gpm
No. of Optional Remote Valves	—	2
No. of Standard Remote Valves	—	0

PTO Rear	—	540/1000 rpm
PTO Type	—	Live
Lift Control Type	—	Position control
Hitch Lift Capacity	—	1,499 lb
Mid-PTO Availability	—	Not Published
Category, 3-Point Hitch	—	Category I
Hitch Lift Capacity (at 24”)	—	974 lb

R3 Turf - Rear	—	33x12.50-16.5
R3 Turf - Front	—	23x8.50-12
Tire Size & Options	—	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	—	12-16.5
R4 Industrial - Front	—	23x8.50-12
R1 Agricultural - Rear	—	9.5-16
R1 Agricultural - Front	—	6.0-12

Coolant Capacity	—	5.3 qt
Crankcase Capacity	—	2.9 qt
Fuel Tank Capacity	—	6.0 gal
Front Axle Fluid Capacity	—	3.5 qt
Transmission / Hydraulic System Capacity	—	3.7 gal

Loader Lift Height	—	88.3 in
Loader Breakout Force	—	1,960 lb
Quick Attach Loader System	—	BL100S: Skid-type quick attachment
Loader Lift Capacity (Full Height)	—	1,314 lb

Clutch	—	Dry single plate
No. of Speeds	—	Gear: F6 x R2; HST: 2-Range
Transmission Type	—	Gear: Constant Mesh; HST: HST
Max Travel Speed (Forward)	—	Gear: 9.9 mph; HST: 12.1 mph
Max Travel Speed (Reverse)	—	Not Published
Differential Lock & Limited Slip Options	—	Not Published

Brakes	—	Wet, multi disc
Steering	—	Hydrostatic
Frame Type	—	Not Published
Front Axle Type	—	4WD
Drawbar Capacity	—	Not Published
Front Axle Rating	—	Not Published
Seat Suspension & Adjustability	—	Comfortable suspension seat

Wheelbase	—	59.1 in
Overall Width	—	44.2 in
Ground Clearance	—	12.1 in
Height to Top of ROPS	—	87.3 in
Height to Top of Cab Model	—	Not Applicable
Height to Top of ROPS (folded)	—	Not Published
Min. Turn Radius without Brakes	—	115.4 in
Overall Length with 3-Point Hitch	—	120.3 in

Accessories that fit	None tagged yet	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $250.00
