Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

TYMT1104

—

TYM2610

Comparison loaded for 2 tractors.

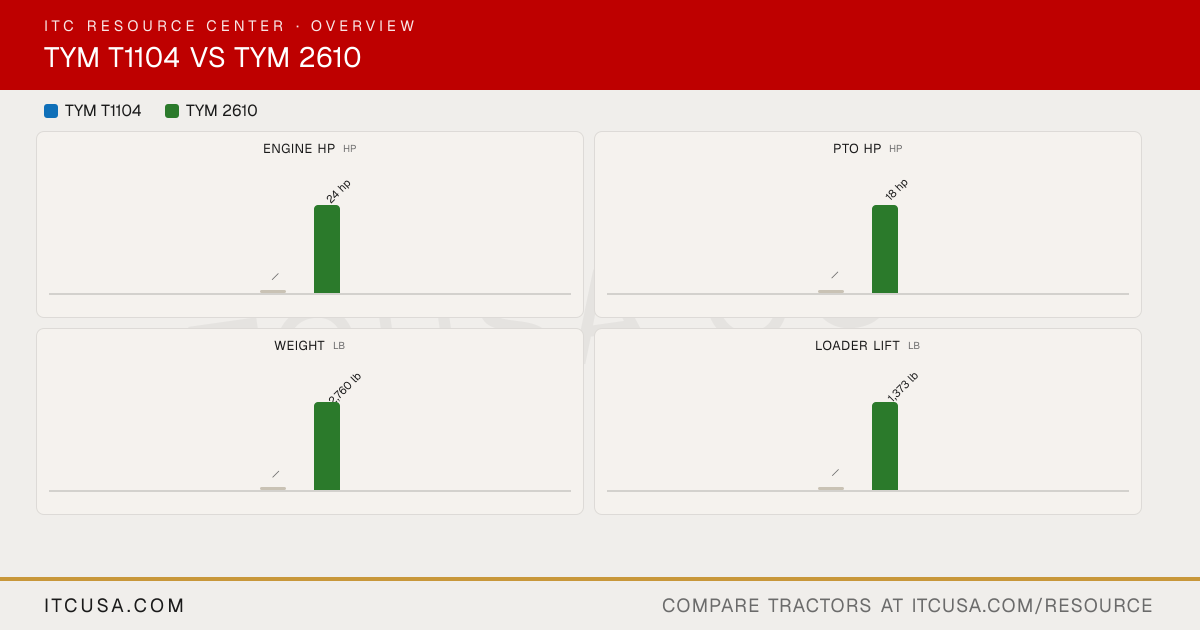

The headline numbers at a glance.

TYM T1104TYM 2610

Engine HPhp

—

24 hp

PTO HPhp

—

18 hp

Weightlb

—

2,760 lb

Loader Liftlb

—

1,373 lb

3-Pt Lift (24 in)lb

—

974 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYMT1104	TYM2610


PTO Power	—	18 hp
Alternator	—	60 A, 12 V
Air Cleaner	—	Dry element
Engine Type	—	3-cylinder, naturally aspirated diesel
Fuel System	—	IDI
Displacement	—	71.7 in³
No. of Cylinders	—	3
Rated Engine Speed	—	2800 rpm
Cooling System Type	—	liquid-cooled
Engine Manufacturer	—	TYM
Engine Power (Gross)	—	24 hp
Engine Emissions Constraints	—	Tier 4

Weight with ROPS and Loader	—	2,760 lb
Weight with Cab and Loader	—	Not Applicable

Warranty Length & Coverage	—	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	—	Single Gear Pump
Steering Flow	—	4.3 gpm \| 16.2 l/min
Implement Flow	—	3.1 gpm \| 11.7 l/min
Total Hydraulic Flow	—	7.4 gpm \| 28 l/min
Hydraulic System Type	—	open center
Rear Remote Hydraulic Flow	—	3.1 gpm 11.7 lpm
Overall Hydraulic Pump Flow	—	Total: 7.9 gpm [Implement: 4.65 gpm \| Steering: 3.3 gpm] - Note: older/dealer spec sheets also cite 7.4 gpm total; 7.9 gpm appears on 2025 model listing
No. of Optional Remote Valves	—	Optional (2)
No. of Standard Remote Valves	—	0

PTO Rear	—	540 rpm
PTO Type	—	Live
Lift Control Type	—	Position
Hitch Lift Capacity	—	1499 lb \| 1,499.1 lb
Mid-PTO Availability	—	Mid-PTO available; 2,500 RPM mid-mount PTO option
Category, 3-Point Hitch	—	I
Hitch Lift Capacity (at 24”)	—	974 lb

R3 Turf - Rear	—	33x12.50-16.5
R3 Turf - Front	—	23x8.50-12
Tire Size & Options	—	Front: R1 Agricultural 6-12 \| R3 Turf 23x8.50-12 \| R4 Industrial 25x8.50-14; Rear: R1 Agricultural 9.5-16 \| R3 Turf 33x12.50-16.5 \| R4 Industrial 14-17.5
R4 Industrial - Rear	—	14-17.5
R4 Industrial - Front	—	25x8.50-14
R1 Agricultural - Rear	—	9.5-16
R1 Agricultural - Front	—	6-12

Coolant Capacity	—	5.3 qt \| 1.3 gal
Crankcase Capacity	—	3.2 qt \| 0.8 gal
Fuel Tank Capacity	—	6.0 gal \| 6.1 gal
Front Axle Fluid Capacity	—	0.8 qt \| 0.2 gal
Transmission / Hydraulic System Capacity	—	2.6 gal \| 2.6 gal

Loader Lift Height	—	91.1 in. \| 91.1 in
Loader Breakout Force	—	2077 lb \| 2,076.7 lbf
Quick Attach Loader System	—	Skid Steer style quick attach; BL110S loader with skid steer quick attach bucket (50" standard bucket)
Loader Lift Capacity (Full Height)	—	1373 lb \| 1,373.5 lbf

Clutch	—	Dry Single Plate
No. of Speeds	—	3-Range
Transmission Type	—	HST
Max Travel Speed (Forward)	—	17 mph \| 27.3 kmph
Max Travel Speed (Reverse)	—	Not Published
Differential Lock & Limited Slip Options	—	Not Published

Brakes	—	Wet, Multi-disc
Steering	—	Hydrostatic
Frame Type	—	Not Published
Front Axle Type	—	Four-wheel drive
Drawbar Capacity	—	Not Published
Front Axle Rating	—	Not Published
Seat Suspension & Adjustability	—	Comfortable suspension seat

Wheelbase	—	65.7 in. \| 65.7 in
Overall Width	—	53.8 in. \| 53.9 in
Ground Clearance	—	15.1 in. \| 15 in
Height to Top of ROPS	—	91.5 in. \| 91.7 in
Height to Top of Cab Model	—	Not Applicable
Height to Top of ROPS (folded)	—	Not specified in searched sources; ROPS is confirmed foldable but folded height not published
Min. Turn Radius without Brakes	—	9.6 ft \| 2.9 m
Overall Length with 3-Point Hitch	—	122.9 in. \| 122.9 in

Accessories that fit	None tagged yet	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $250.00
