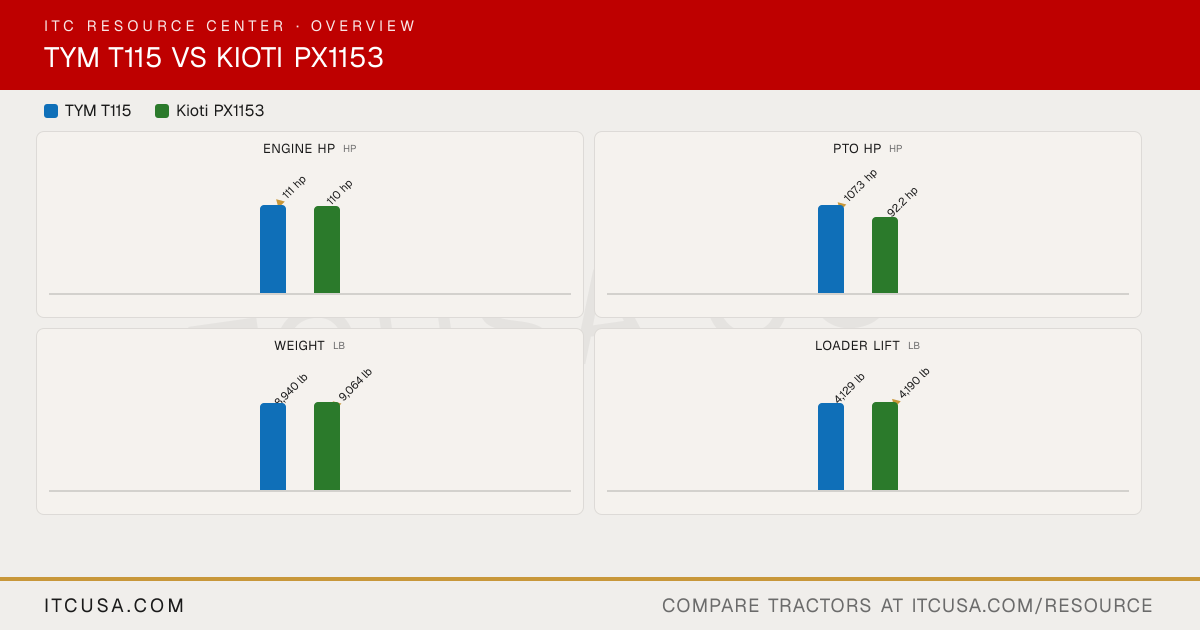

▶ EngineEngine Manufacturer Deutz Doosan Engine Model TCD 3.6L4-C5VT83E DL03-LEA07 Engine Type Water-cooled, 4-cylinder diesel engine 4-cylinder, in-line vertical, water-cooled No. of Cylinders 4 4 Displacement 221 in³ 208 in³ Rated Engine Speed 2200 rpm 2200 rpm Engine Power (Gross) 111 hp 110 hp PTO Power 107.3 hp 92.2 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Water-cooled Water-cooled Air Cleaner Dual dry Dual air cleaner Fuel System CRDI Not Published Alternator 120 A, 12 V Not Published ▶ HydraulicsPump Type Dual gear pump Gear Implement Flow 14.3 gpm Not Published Steering Flow 7.1 gpm Not Published Total Hydraulic Flow 21.4 gpm 31.5 gpm Overall Hydraulic Pump Flow 21.4 gpm 31.5 gpm Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 6 2 No. of Optional Remote Valves Not Published 1 (third valve) ▶ Fluid CapacityFuel Tank Capacity 31.7 gal 34.3 gal Coolant Capacity 19.1 qt Not Published Crankcase Capacity 8.5 qt Not Published Transmission / Hydraulic System Capacity 23.8 gal Not Published Front Axle Fluid Capacity 18.4 qt Not Published ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540/540E/1000 rpm (Reversible shaft) 540 / 1,000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity 7,295 lb Not Published Hitch Lift Capacity (at 24”) 6,007 lb 8,003 lb Lift Control Type Position/Draft Position, draft, mixed control ▶ Transmission & DrivetrainTransmission Type Power shuttle & Hi-Lo shift Synchronized shuttle, power shuttle type No. of Speeds F32 x R32 w/Creep 32F/32R Max Travel Speed (Forward) 23 mph 24.87 mph Max Travel Speed (Reverse) Not Published 24.69 mph Clutch Wet multi-plate Wet multi disc Differential Lock & Limited Slip Options Not Published Rear differential lock (standard) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Power steering Brakes Wet, Multi disc Wet disc Seat Suspension & Adjustability Air-ride full suspension seat Fully adjustable suspension swivel seat (deluxe cab) Front Axle Type 4WD, inboard planetary gear design 4WD, electric/hydraulic engagement Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 89.4 in 88.6 in Wheelbase 93.7 in 93.3 in Ground Clearance 16.7 in 19.5 in Min. Turn Radius without Brakes 159.5 in (left); 161 in (right) Not Published Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 112.2 in 109 in Overall Length 175.2 in (with 3-point hitch) 168.9 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 8,940 lb 9,064 lb (with cab and ag tires; cab is standard) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R1 Agricultural: 13.6-24 front, 18.4-34 rear R1 Agricultural - Front 13.6-24 13.6-24 R1 Agricultural - Rear 18.4-34 18.4-34 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published Quick attach (QA) bucket, 90 in; dual lever quick attach, built-in parking stand Loader Model TL115SL KL1153 Loader Lift Height TL115SL: 144.4 in KL1153: 143.3 in (at pivot pin) Loader Lift Capacity (Full Height) TL115SL: 4,129 lb KL1153: 4,190 lb (at pivot pin) Loader Breakout Force TL115SL: 6,025 lb (at pivot pin, ground level) KL1153: 8,310 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Basic 24 months or 2,000 hours, parts and labor; loaders, backhoes and mid-mount mowers 12 months Not Published
