Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

TYMT115

—

TYM3015

Comparison loaded for 2 tractors.

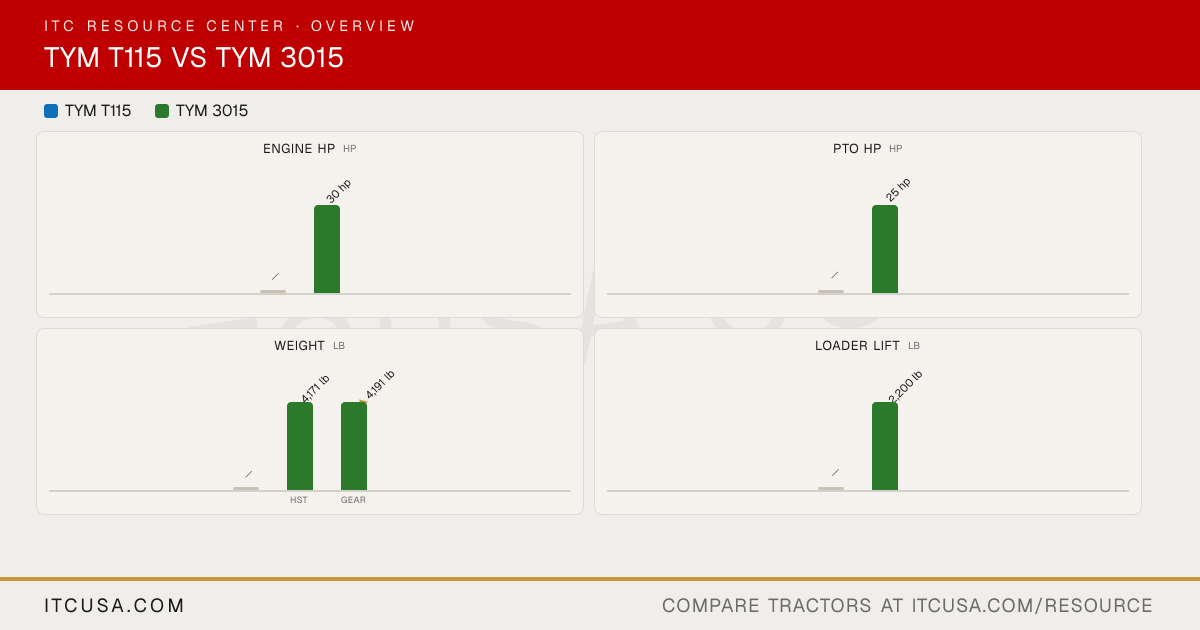

The headline numbers at a glance.

TYM T115TYM 3015

Engine HPhp

—

30 hp

PTO HPhp

—

25 hp

Weightlb

—

4,171 lb

▲4,191 lb

HSTGear

Loader Liftlb

—

2,200 lb

3-Pt Lift (24 in)lb

—

2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYMT115	TYM3015


PTO Power	—	25 hp
Alternator	—	50 A, 12 V
Air Cleaner	—	Dry Element
Engine Type	—	3-cylinder, naturally aspirated diesel
Fuel System	—	IDI
Displacement	—	104.6 in³
No. of Cylinders	—	3
Rated Engine Speed	—	2600 rpm
Cooling System Type	—	Not Published
Engine Manufacturer	—	TYM T1700N3
Engine Power (Gross)	—	30 hp
Engine Emissions Constraints	—	Tier 4

Weight with ROPS and Loader	—	HST: 4,171 lb; Gear: 4,191 lb
Weight with Cab and Loader	—	Not Applicable

Warranty Length & Coverage	—	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	—	Single Gear Pump
Steering Flow	—	8 gpm
Implement Flow	—	4.3 gpm
Total Hydraulic Flow	—	12.3 gpm
Hydraulic System Type	—	Open center
Rear Remote Hydraulic Flow	—	Not Published
Overall Hydraulic Pump Flow	—	12.3 gpm
No. of Optional Remote Valves	—	Up to 4
No. of Standard Remote Valves	—	0

PTO Rear	—	560 rpm
PTO Type	—	Independent
Lift Control Type	—	Position control
Hitch Lift Capacity	—	3,306 lb
Mid-PTO Availability	—	Not Published
Category, 3-Point Hitch	—	Category I
Hitch Lift Capacity (at 24”)	—	2,425 lb

R3 Turf - Rear	—	Not Published
R3 Turf - Front	—	Not Published
Tire Size & Options	—	R1 Agricultural, R4 Industrial
R4 Industrial - Rear	—	43x16.00-20
R4 Industrial - Front	—	28x8.50-15
R1 Agricultural - Rear	—	12.4-24
R1 Agricultural - Front	—	8.0-16

Coolant Capacity	—	5.3 qt
Crankcase Capacity	—	4.5 qt
Fuel Tank Capacity	—	7.1 gal
Front Axle Fluid Capacity	—	1.7 qt
Transmission / Hydraulic System Capacity	—	HST: 9.8 gal; Gear: 8.9 gal

Loader Lift Height	—	104.9 in
Loader Breakout Force	—	3,422 lb
Quick Attach Loader System	—	BL150: Quick attach assembly (lever-lock)
Loader Lift Capacity (Full Height)	—	2,200 lb

Clutch	—	HST: Not Applicable; Gear: Dry Single Plate
No. of Speeds	—	HST: 3-Range; Gear: F12 x R12
Transmission Type	—	HST: HST; Gear: Synchromesh
Max Travel Speed (Forward)	—	HST: 18.8 mph; Gear: 14.4 mph
Max Travel Speed (Reverse)	—	Not Published
Differential Lock & Limited Slip Options	—	Differential lock

Brakes	—	Wet, Multi-disc
Steering	—	Hydrostatic
Frame Type	—	Not Published
Front Axle Type	—	Not Published
Drawbar Capacity	—	Not Published
Front Axle Rating	—	Not Published
Seat Suspension & Adjustability	—	Comfortable suspension seat

Wheelbase	—	65.7 in
Overall Width	—	56.3 in
Ground Clearance	—	14.4 in
Height to Top of ROPS	—	97.3 in
Height to Top of Cab Model	—	Not Applicable
Height to Top of ROPS (folded)	—	Not Published
Min. Turn Radius without Brakes	—	104.7 in
Overall Length with 3-Point Hitch	—	120.9 in

Accessories that fit	None tagged yet	Brush Guard Side Guards $200.00 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00 Branson TYM 15 Series Hydraulic Valve Cover $235.00
