Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

TYMT115

—

TYM3515C

Comparison loaded for 2 tractors.

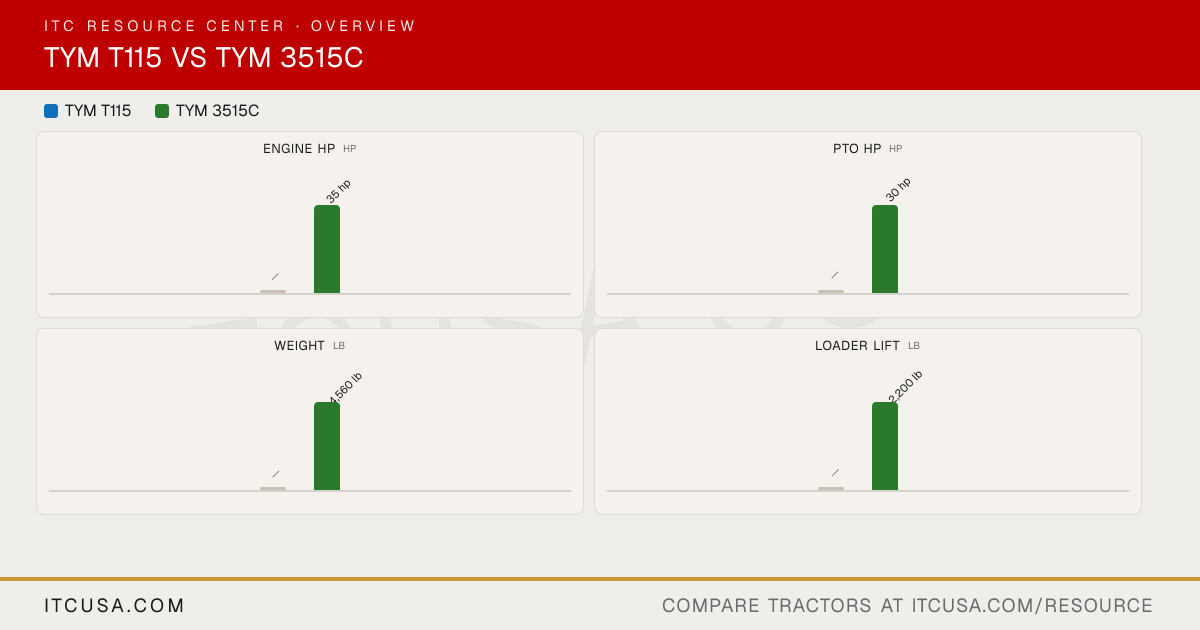

The headline numbers at a glance.

TYM T115TYM 3515C

Engine HPhp

—

35 hp

PTO HPhp

—

30 hp

Weightlb

—

4,560 lb

Loader Liftlb

—

2,200 lb

3-Pt Lift (24 in)lb

—

2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYMT115	TYM3515C


PTO Power	—	30 hp
Alternator	—	70 A, 12 V
Air Cleaner	—	Dry element
Engine Type	—	3-cylinder, naturally aspirated diesel
Fuel System	—	IDI
Displacement	—	104.6 in³
No. of Cylinders	—	3
Rated Engine Speed	—	2600 rpm
Cooling System Type	—	Not Published
Engine Manufacturer	—	TYM
Engine Power (Gross)	—	35 hp
Engine Emissions Constraints	—	Tier 4

Weight with ROPS and Loader	—	Not Applicable
Weight with Cab and Loader	—	4,560 lb

Warranty Length & Coverage	—	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	—	Dual gear pump
Steering Flow	—	4.2 gpm
Implement Flow	—	7.7 gpm
Total Hydraulic Flow	—	11.9 gpm
Hydraulic System Type	—	Open center
Rear Remote Hydraulic Flow	—	Not Published
Overall Hydraulic Pump Flow	—	11.9 gpm
No. of Optional Remote Valves	—	Not Published
No. of Standard Remote Valves	—	0

PTO Rear	—	540 rpm
PTO Type	—	Independent
Lift Control Type	—	Position control
Hitch Lift Capacity	—	3,306 lb
Mid-PTO Availability	—	Not Published
Category, 3-Point Hitch	—	Category I
Hitch Lift Capacity (at 24”)	—	2,425 lb

R3 Turf - Rear	—	41x14.00, 4PR
R3 Turf - Front	—	27x8.5-15, 6PR
Tire Size & Options	—	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	—	380/70-19.5, 6PR; 15-19.5
R4 Industrial - Front	—	25x8.5-14, 6PR; 28x8.5-14
R1 Agricultural - Rear	—	11.2-24
R1 Agricultural - Front	—	7.0-16

Coolant Capacity	—	5.3 qt
Crankcase Capacity	—	4.5 qt
Fuel Tank Capacity	—	7.1 gal
Front Axle Fluid Capacity	—	6.8 qt
Transmission / Hydraulic System Capacity	—	9.8 gal

Loader Lift Height	—	104.9 in
Loader Breakout Force	—	3,422 lb
Quick Attach Loader System	—	BL150C: Quick attachment assembly
Loader Lift Capacity (Full Height)	—	2,200 lb

Clutch	—	Not Applicable
No. of Speeds	—	3-Range
Transmission Type	—	HST
Max Travel Speed (Forward)	—	18 mph
Max Travel Speed (Reverse)	—	Not Published
Differential Lock & Limited Slip Options	—	Not Published

Brakes	—	Wet, multi disc
Steering	—	Hydrostatic
Frame Type	—	Not Published
Front Axle Type	—	Not Published
Drawbar Capacity	—	Not Published
Front Axle Rating	—	Not Published
Seat Suspension & Adjustability	—	Comfortable suspension seat

Wheelbase	—	65.7 in
Overall Width	—	55.6 in
Ground Clearance	—	14.4 in
Height to Top of ROPS	—	Not Applicable
Height to Top of Cab Model	—	97.3 in
Height to Top of ROPS (folded)	—	Not Applicable
Min. Turn Radius without Brakes	—	L: 124.8 in; R: 121.3 in
Overall Length with 3-Point Hitch	—	120.9 in
