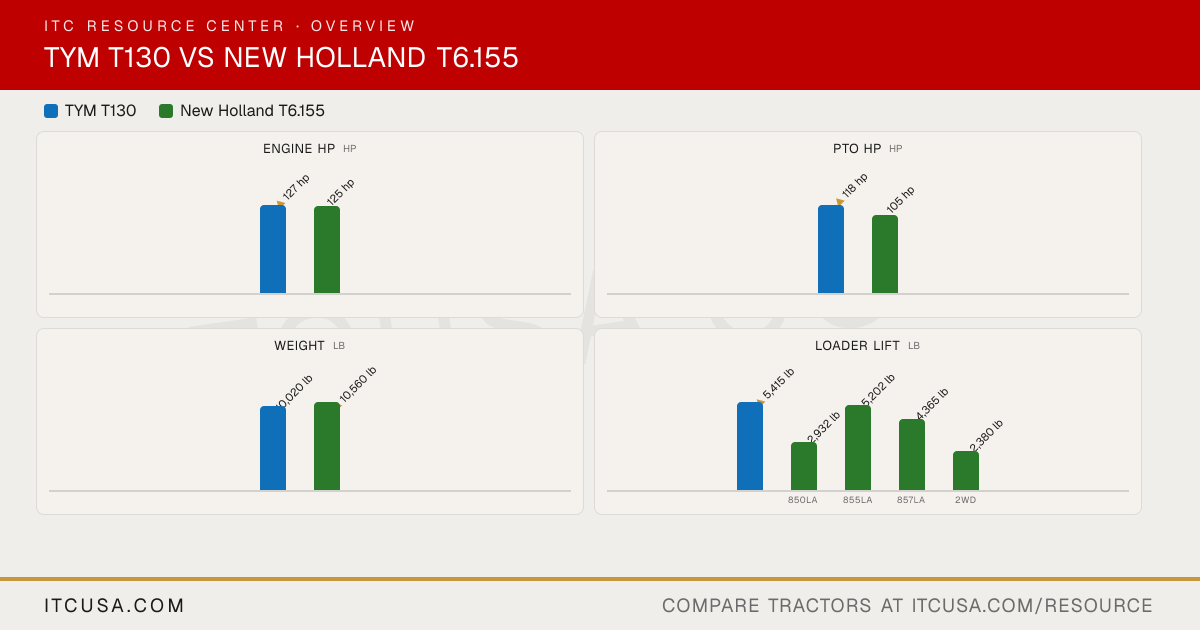

▶ EngineEngine Manufacturer Deutz FPT Engine Model TCD3.6L4 NEF Engine Type Water-cooled, 4-cylinder diesel engine 4-cylinder, 16-valve, turbocharged and intercooled, common-rail diesel, electronic fuel delivery control No. of Cylinders 4 4 Displacement 221 in³ 274 in³ Rated Engine Speed 2200 rpm 2100 rpm Engine Power (Gross) 127 hp 125 hp PTO Power 118 hp 105 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Water-cooled Not Published Air Cleaner Dual dry Not Published Fuel System CRDI High-pressure common-rail, electronic fuel delivery control Alternator 120 A, 12 V 150 A ▶ HydraulicsPump Type Dual gear pump Value: fixed-displacement pump; Plus, Elite, Dynamic Command: closed-center load-sensing pump Implement Flow 20.1 gpm Value: 21.1 gpm; Plus, Elite: 29.9 gpm Steering Flow 9.1 gpm 12.4 gpm (17.2 gpm optional pump with Class 4 front axle) Total Hydraulic Flow 29.2 gpm Value: 33.5 gpm (21.1 + 12.4, computed); Plus, Elite: 42.3 gpm (29.9 + 12.4, computed) Overall Hydraulic Pump Flow 29.2 gpm Value: 33.5 gpm (21.1 + 12.4, computed); Plus, Elite: 42.3 gpm (29.9 + 12.4, computed) Hydraulic System Type Not Published Value, Plus, Elite: fixed displacement (open center); CCLS optional on Plus and Elite; Dynamic Command: closed-center load-sensing (CCLS) Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 6 2 mechanical (Value, Plus, Elite) No. of Optional Remote Valves Not Published Rear: 3 or 4 mechanical, or 3 or 4 electro-hydraulic (Elite); mid-mount: 2 or 3, mechanical or electronic ▶ Fluid CapacityFuel Tank Capacity 50.2 gal 52.2 gal (58.6 gal with auxiliary tank); Dynamic Command: 60 gal Coolant Capacity 19.1 qt Not Published Crankcase Capacity 8.5 qt Not Published Transmission / Hydraulic System Capacity 26.9 gal Not Published Front Axle Fluid Capacity 6.3 qt Not Published ▶ PTO & HitchPTO Type Independent Independent, direct-drive PTO with push-pull engagement and Soft Start; reversible PTO shaft PTO Rear 540/540E/1000 rpm (Reversible shaft) 540/1000 rpm (540 at 1969 engine rpm, 1000 at 1893 engine rpm) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Not Published Hitch Lift Capacity 8,261 lb Not Published Hitch Lift Capacity (at 24”) 8,014 lb Value: 8,338 lb; Auto Command: 9,214 lb; Plus, Elite and Auto Command with optional larger rams: 11,649 lb Lift Control Type Position/Draft Electronic draft control ▶ Transmission & DrivetrainTransmission Type Power shuttle & 6-speed shift APS Electro Command: 16x16 semi-powershift (standard), with 17x16 economy, 17x16 31 mph, 32x32 creeper and auto-shift options; Dynamic Command: 23x23 semi-powershift, with 24x24 economy, 31 mph and creeper options No. of Speeds F36 x R36 w/Creep Electro Command: 16F/16R, or 17F/16R economy or high-speed, 32F/32R with creeper; Dynamic Command: 23F/23R, or 24F/24R optional Max Travel Speed (Forward) 23 mph 25 mph (Electro Command 16x16 and Dynamic Command 23x23 standard); 31 mph (17x16 high-speed and Dynamic Command 24x24 31 mph options, FWD only); 19 mph (2WD) Max Travel Speed (Reverse) Not Published Not Published Clutch Wet Multi Plate Not Published Differential Lock & Limited Slip Options Not Published Automatic 4WD engagement, automatic front and rear differential locks ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Not Published Brakes Wet, Multi disc Not Published Seat Suspension & Adjustability Air-ride full suspension seat Standard: low-frequency suspension seat; optional: heated low-frequency suspension seat, or heated and ventilated active-suspension seat; swiveling backrest; suspended cab optional Front Axle Type Not Published Standard FWD axle (Class 3 and 4); optional: Terraglide suspended FWD axle or SuperSteer FWD axle; heavy-duty 2WD axle available on Electro Command Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 176.8 in 204.3 in (front linkage to rear linkage) Overall Width 92.9 in 89.8 in (minimum; 91 in with 650/65R38 tires) Wheelbase 102 in Standard FWD axle: 104 in; Terraglide suspended axle: 105.7 in; SuperSteer axle: 109.8 in; 2WD: 96 in Ground Clearance 16.1 in 18.8 in (18.4R38, 520/70R38 or 600/65R38 rear tires; 16.8 in with 16.9R38, 20.8 in with 650/65R38) Min. Turn Radius without Brakes 186.6 in (left); 189 in (right) 15.1 ft (standard FWD axle, 55 degree turn angle); 14.1 ft (2WD or SuperSteer axle, 65 degree turn angle) Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 115.7 in 115.2 in (standard cab, 18.4R38 tires); 110.4 in (low profile cab); 117.7 in (suspended cab) ▶ WeightTractor Weight (Base) 10,020 lb 10,560 lb (minimum shipping weight, cab FWD, less ballast) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Rear: 16.9R38, 18.4R38, 520/70R38, 600/65R38, 650/65R38 (suspended cab only), 480/70R38, 540/65R38 or 650/60R38 with matching front tires R1 Agricultural - Front 380/85 R28 Not Published R1 Agricultural - Rear 460/85 R38 (18.4R38) 18.4R38 (reference tire; also 16.9R38, 520/70R38, 600/65R38, 650/65R38, 480/70R38, 540/65R38, 650/60R38) R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published Euro style (850LA, 855LA, 857LA); Euro or skid steer style (810LA) Loader Model TL130SL FWD: 850LA (NSL), 855LA (MSL); SuperSteer FWD: 857LA (MSL); 2WD: 810LA (NSL) Loader Lift Height TL130SL: 162 in 850LA: 162.0 in; 855LA: 162.0 in; 857LA: 166.8 in; 810LA (2WD): 142.8 in (to pivot pin, base equipment tires) Loader Lift Capacity (Full Height) TL130SL: 5,415 lb 850LA: 2,932 lb; 855LA: 5,202 lb; 857LA: 4,365 lb; 810LA (2WD): 2,380 lb (to maximum height, measured 31.5 in forward of the pivot pin, with rear counterbalance) Loader Breakout Force TL130SL: 6,618 lb 850LA: 4,673 lb; 855LA: 5,974 lb; 857LA: 4,894 lb; 810LA (2WD): 3,439 lb (measured 31.5 in forward of the pivot pin) ▶ WarrantyWarranty Length & Coverage Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months Not Published
