TYM T194 vs TYM T254 | Side-by-side comparison | ITC Resource Center
Compare Tractors

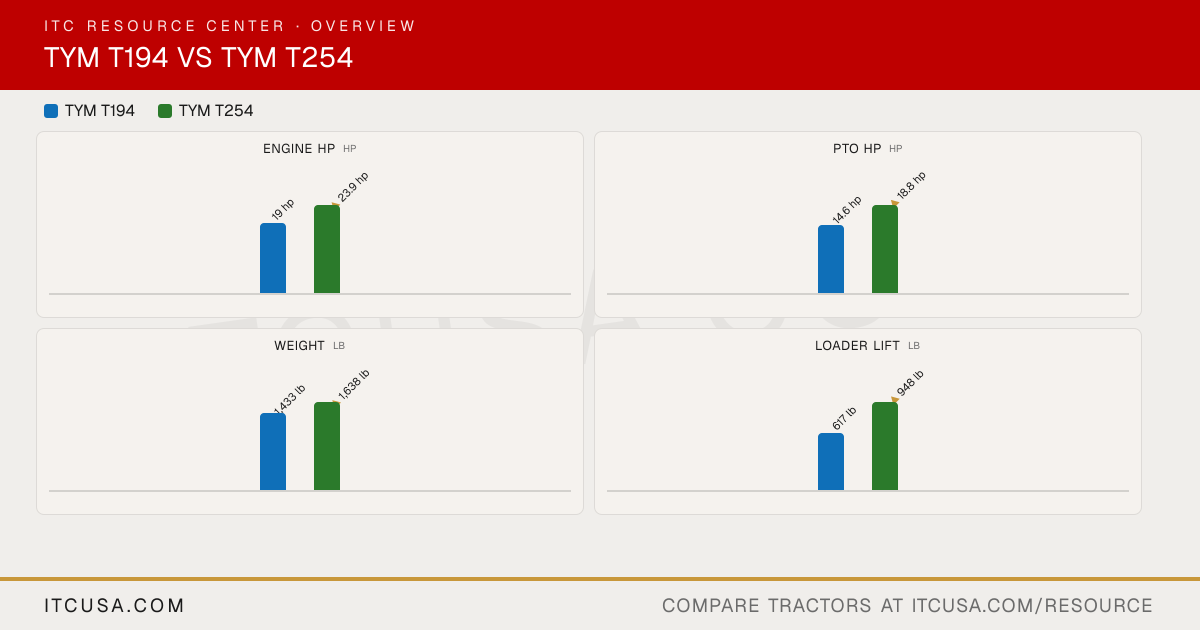

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT194
TYMT254
Engine Manufacturer
Yanmar
Yanmar
Engine Model
3TNV74F
3TNV80F
Engine Type
3-cylinder, naturally aspirated diesel
3-cylinder, naturally aspirated diesel
No. of Cylinders
3
3
Displacement
60.6 in³
77.3 in³
Rated Engine Speed
3000 rpm
3000 rpm
Engine Power (Gross)
19 hp
23.9 hp
PTO Power
14.6 hp
18.8 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Water-cooled
Water-cooled
Air Cleaner
Single dry
Single dry
Fuel System
IDI
IDI
Alternator
40 A, 12 V
40 A, 12 V
Pump Type
Single gear pump
Single gear pump
Implement Flow
4.17 gpm
4.2 gpm
Steering Flow
2.11 gpm
2.8 gpm
Total Hydraulic Flow
6.28 gpm
6.9 gpm
Overall Hydraulic Pump Flow
6.28 gpm
6.9 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
None
No. of Optional Remote Valves
1
1
Fuel Tank Capacity
6.6 gal
5.8 gal
Coolant Capacity
3.7 qt
3.8 qt
Crankcase Capacity
2.1 qt
2.9 qt
Transmission / Hydraulic System Capacity
3.6 gal
3.7 gal
Front Axle Fluid Capacity
2.6 qt
3.7 qt
PTO Type
Independent
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Available
Available
Category, 3-Point Hitch
Category I (Narrow)
Category I (Narrow)
Hitch Lift Capacity
1,100 lb
1,214 lb
Hitch Lift Capacity (at 24”)
679 lb
1,101 lb
Lift Control Type
Position control
Position control
Transmission Type
HST
HST
No. of Speeds
2 Range
Infinite 2-Range
Max Travel Speed (Forward)
7.8 mph
11.0 mph
Max Travel Speed (Reverse)
Not Published
Not Published
Clutch
Not Published
Not Published
Differential Lock & Limited Slip Options
Differential lock
Differential lock
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic
Brakes
Wet disc
Wet disc
Seat Suspension & Adjustability
Not Published
Ergonomic seating
Front Axle Type
Not Published
4WD center-pivot, reverse Eliot type
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Width
44.5 in
45.8 in
Wheelbase
53.1 in
57.5 in
Ground Clearance
8.3 in
9.4 in
Min. Turn Radius without Brakes
86.6 in
100 in
Height to Top of ROPS
86.6 in
91.3 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Overall Length
94.2 in (with 3-point hitch)
100.5 in (with 3-point hitch)
Tractor Weight (Base)
1,433 lb
1,638 lb (with ROPS)
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural, R3 Turf, R4 Industrial, R4 Lg Industrial
R1 Agricultural - Front
BAR F 16x6.50-8
6.0-12
R1 Agricultural - Rear
BAR R 24x12.00-12
9.5-16
R3 Turf - Front
16x7.50-8
Turf Master 20x8.00-10 NHS TL 4PR
R3 Turf - Rear
24x12.00-12
Multi-Trac CS 29x12.50-15 NHS TL 4PR
R4 Industrial - Front
16x7.50-8
Trac Chief 20x8.00-10 NHS TL 4PR
R4 Industrial - Rear
24x12.00-12
Trac Chief 27x12.5-15 NHS TL 4PR
Quick Attach Loader System
TX19H: Quick attach mechanism
TX25P: Quick attach mechanism
Loader Model
TX19H
TX25P
Loader Lift Height
TX19H: 71.3 in
TX25P: 75 in
Loader Lift Capacity (Full Height)
TX19H: 617 lb
TX25P: 948 lb (at pivot pin)
Loader Breakout Force
TX19H: 1,235 lb (at pivot pin, ground level)
TX25P: 1,680 lb (at pivot pin, ground level)
Warranty Length & Coverage
Not Published
Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months
