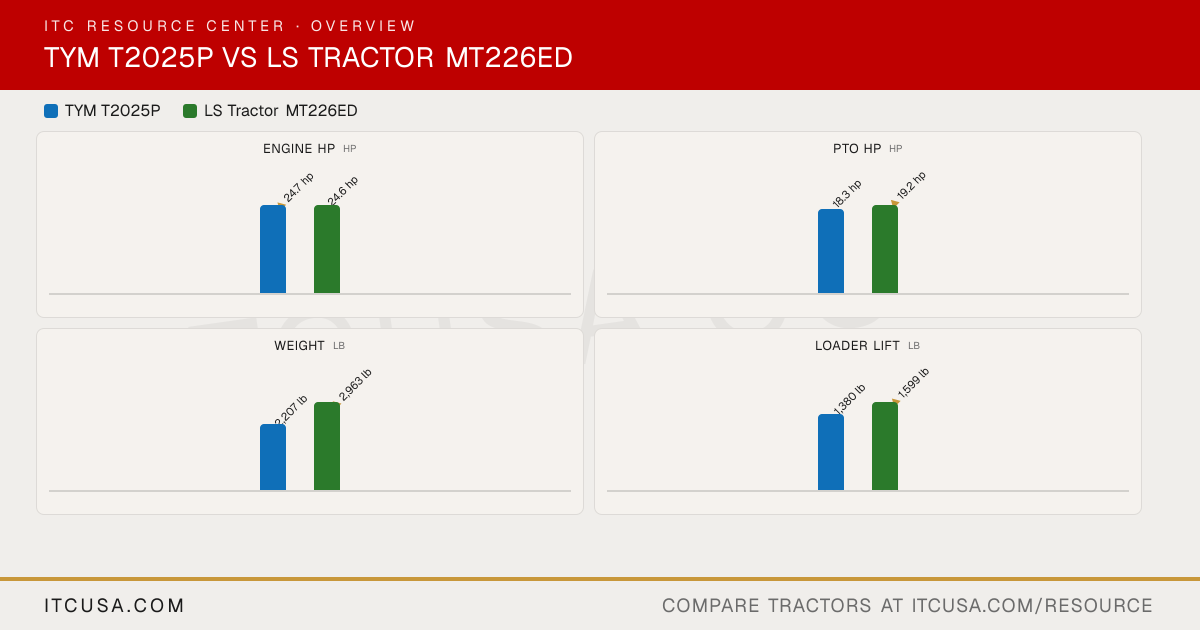

▶ EngineEngine Manufacturer Yanmar MHI Engine Model 3TNV80F-NXDKTFX S3L2-W463GTAC Engine Type 3-cylinder, naturally aspirated diesel 3-cylinder, liquid-cooled, diesel, naturally aspirated, IDI No. of Cylinders 3 3 Displacement 77.3 in³ 80.4 in³ Rated Engine Speed 3000 rpm 2500 rpm Engine Power (Gross) 24.7 hp 24.6 hp PTO Power 18.3 hp 19.2 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Not Published Liquid-cooled Air Cleaner Single dry Dry Fuel System IDI IDI (indirect injection) Alternator 40 A, 12 V 50 A, 12 V ▶ HydraulicsPump Type Single gear pump Gear pump Implement Flow 4.17 gpm 7.9 gpm Steering Flow 2.77 gpm 4.6 gpm Total Hydraulic Flow 6.94 gpm 12.5 gpm Overall Hydraulic Pump Flow 6.94 gpm 12.5 gpm Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published None No. of Optional Remote Valves Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity 8.4 gal 10.6 gal Coolant Capacity 0.95 gal Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity 4.49 gal Not Published Front Axle Fluid Capacity 1.18 gal Not Published ▶ PTO & HitchPTO Type Independent Transmission driven PTO Rear 540 rpm Standard (540 rpm) Mid-PTO Availability Available (Mid-PTO kit) Available (option) Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1,550 lb Not Published Hitch Lift Capacity (at 24”) 560 lb 1,433 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type HST Synchro Shuttle No. of Speeds 2 F12 x R12 Max Travel Speed (Forward) 13.57 mph Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Dry Single Differential Lock & Limited Slip Options Differential lock Mechanical differential lock (pedal) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydraulic Hydrostatic power steering Brakes Wet disc Wet, multi-disc Seat Suspension & Adjustability Mechanical suspension seat Not Published Front Axle Type Four-wheel drive (standard) Front wheel mechanical assist (4WD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 56.29 in 66 in Wheelbase 61.02 in 66 in Ground Clearance 10.23 in Not Published Min. Turn Radius without Brakes 110.23 in Not Published Height to Top of ROPS 85.94 in 95 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 105.11 in (with 3-point hitch) 119 in (frame to link) ▶ WeightTractor Weight (Base) 2,207 lb 2,963 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R3 Turf, R4 Industrial, Hybrid Ag, Industrial, VT and Turf; VT same size as Industrial R1 Agricultural - Front Not Published 7-14 R1 Agricultural - Rear Not Published 11.2-24 R3 Turf - Front 23x8.5-12 25x8.50-14 R3 Turf - Rear 33x12.5-16.5 41x14.00-20 R4 Industrial - Front 23x8.5-14 27x8.50-15 R4 Industrial - Rear 14-17.5 43x16.00-20 ▶ Loader & AttachmentsQuick Attach Loader System L2025P: Quick attach mechanism LL3001, LL3002: ISO 24410 Quick Attaching Coupler Loader Model L2025P LL3001 and LL3002 Loader Lift Height L2025P: 87.7 in LL3001 and LL3002: 94.3 in Loader Lift Capacity (Full Height) L2025P: 1,380 lb (at pivot pin) LL3001 and LL3002: 1,599 lb (at pivot pin, maximum height) Loader Breakout Force L2025P: 2,059 lb (at pivot pin, ground level) LL3001 and LL3002: 2,962 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months Two-year bumper to bumper; six-year limited powertrain
