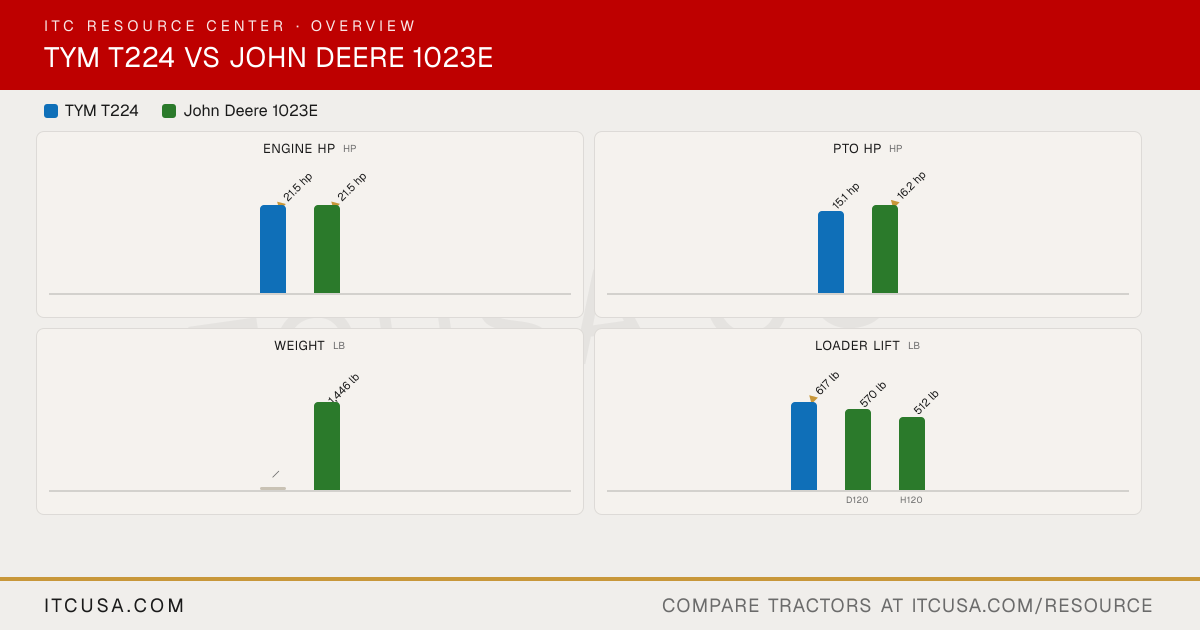

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT224
John Deere1023E
PTO Power
15.1 hp
16.2 hp
Alternator
40 A, 12 V
40 A
Air Cleaner
Single dry
Dual element
Engine Type
3-cylinder, naturally aspirated diesel
Diesel
Fuel System
IDI
Indirect injection
Displacement
60.6 in³
60.6 in³
No. of Cylinders
3
3
Rated Engine Speed
3200 rpm
3200 rpm
Cooling System Type
Water-cooled
Water pump
Engine Manufacturer
Yanmar
Yanmar
Engine Power (Gross)
21.5 hp
21.5 hp @ 200 rpm
Engine Emissions Constraints
Tier 4
Tier 4
Weight with ROPS and Loader
Not Published
1446 lb
Weight with Cab and Loader
Not Published
—
Tractor Weight (Base)
—
Open station: 1446 lb
Warranty Length & Coverage
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
6-year powertrain warranty (as stated in 2016 review; current terms may vary)
Pump Type
Single gear pump
Single gear
Steering Flow
2.1 gpm
3.5 gpm
Implement Flow
4.6 gpm
3.5 gpm
Total Hydraulic Flow
6.7 gpm
6.3 gpm 23.8 lpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
3.5 gpm (13.3 lpm) implement circuit
Overall Hydraulic Pump Flow
6.7 gpm
6.3 gpm total (2.8 gpm steering + 3.5 gpm implement)
No. of Optional Remote Valves
1
1 additional (optional 3rd SCV kit; standard is 2 mid-SCVs)
