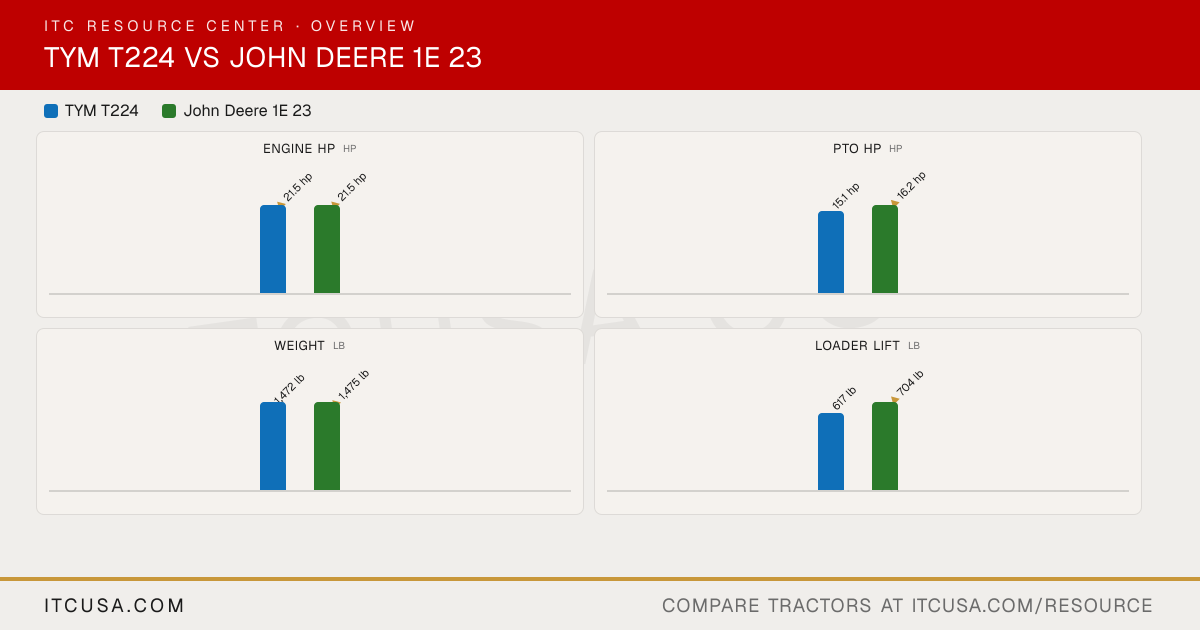

▶ EngineEngine Manufacturer Yanmar Yanmar Engine Model 3TNV74F 3TNM74F-NCJT Engine Type 3-cylinder, naturally aspirated diesel Diesel No. of Cylinders 3 3 Displacement 60.6 in³ 60 in³ Rated Engine Speed 3200 rpm 3200 rpm Engine Power (Gross) 21.5 hp 21.5 hp PTO Power 15.1 hp 16.2 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Water-cooled Liquid-cooled Air Cleaner Single dry Not Published Fuel System IDI Not Published Alternator 40 A, 12 V Not Published ▶ HydraulicsPump Type Single gear pump Gear Implement Flow 4.6 gpm 3.5 gpm Steering Flow 2.1 gpm 3.5 gpm Total Hydraulic Flow 6.7 gpm 7 gpm Overall Hydraulic Pump Flow 6.7 gpm 7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves 1 Not Published ▶ Fluid CapacityFuel Tank Capacity 6.6 gal 5.57 gal Coolant Capacity 3.7 qt Not Published Crankcase Capacity 1.9 qt Not Published Transmission / Hydraulic System Capacity 3.6 gal Not Published Front Axle Fluid Capacity 2.6 qt Not Published ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Available Standard, 2100 rpm Category, 3-Point Hitch Category I (Narrow) Limited Category I Hitch Lift Capacity 1,100 lb Not Published Hitch Lift Capacity (at 24”) 679 lb 758 lb Lift Control Type Position control Select control ▶ Transmission & DrivetrainTransmission Type HST Hydrostatic - 2 range No. of Speeds 2 Range Infinite (hydrostatic), 2 ranges forward and reverse Max Travel Speed (Forward) 8.4 mph 9.1 mph Max Travel Speed (Reverse) Not Published 9.1 mph Clutch Not Published Not Published Differential Lock & Limited Slip Options Differential lock Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Foldable ROPS, standard equipment Steering Hydrostatic Power steering Brakes Wet disc Wet disc, left-hand pedal Seat Suspension & Adjustability Not Published Suspension seat, high back, adjustable settings; no tilt steering Front Axle Type 4WD center-pivot, reverse Eliot type Four-wheel drive (mechanical front-wheel drive) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 44.5 in 47.22 in (R3 tires); 47.32 in (R4 tires) Wheelbase 53.1 in 57.1 in Ground Clearance 8.3 in Not Published Min. Turn Radius without Brakes 86.6 in Not Published Height to Top of ROPS 86.6 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 94.2 in (with 3-point hitch) Not Published ▶ WeightTractor Weight (Base) 1,472 lb 1,475 lb (shipping weight, open station) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial R3 Turf, R3 Hybrid, or R4 R1 Agricultural - Front BAR F 16x6.50-8 Not Published R1 Agricultural - Rear BAR R 24x12.00-12 Not Published R3 Turf - Front Turf Master 16x7.50-8 NHS TL 4PR 18x8.50-10 R3 Turf - Rear Turf Master 24x12.00-12 NHS TL 4PR 26x12-12 R4 Industrial - Front WT300 18x8.5-10 NHS TL 4PR 18x8.5-10 R4 Industrial - Rear WT300 26x12.00-12 NHS TL 4PR 26x12-12 ▶ Loader & AttachmentsQuick Attach Loader System TX22H: Quick attach mechanism Tool-free attach and park Loader Model TX22H 120R Loader Lift Height TX22H: 71.3 in 120R: 72 in Loader Lift Capacity (Full Height) TX22H: 617 lb (at pivot pin) 120R (NSL): 704 lb (at pivot, full height) Loader Breakout Force TX22H: 1,235 lb (at pivot pin, ground level) Not Published ▶ WarrantyWarranty Length & Coverage Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months Powertrain 6 years or 2,000 hours, standard at no cost, covers residential and commercial use
