TYM T264 vs Massey Ferguson 1726E | Side-by-side comparison | ITC Resource Center
Compare Tractors

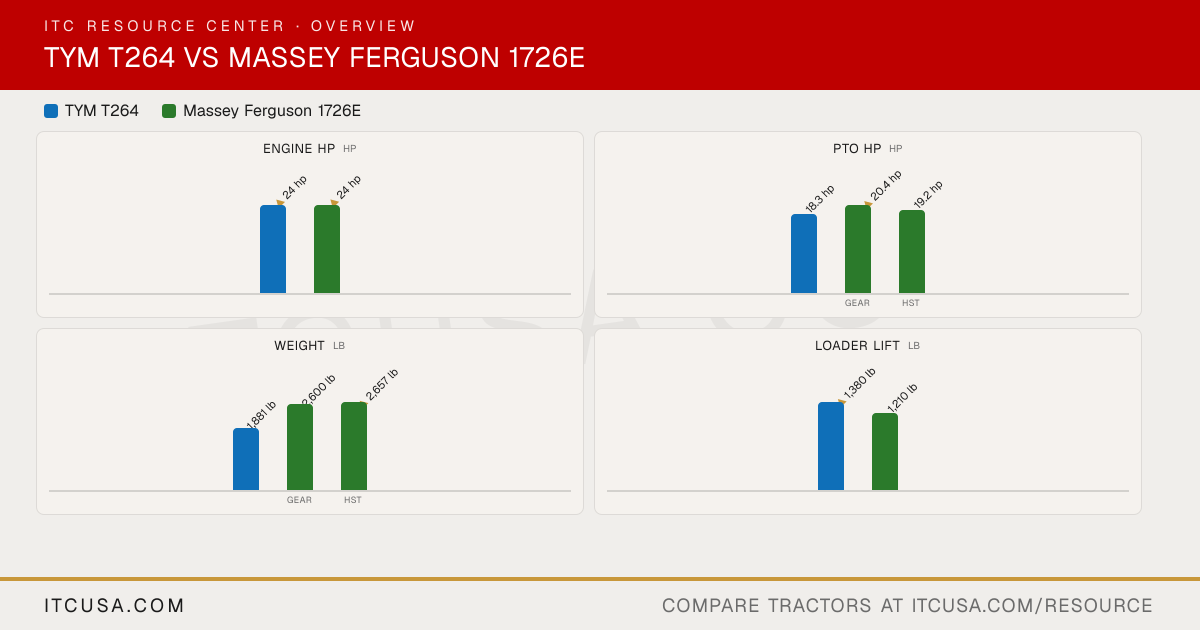

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT264
Massey Ferguson1726E
Engine Manufacturer
TYM
Shibaura
Engine Model
T1100N2
Not Published
Engine Type
3-cylinder, naturally aspirated diesel
3-cylinder diesel, liquid-cooled
No. of Cylinders
3
3
Displacement
71.7 in³
91.5 in³
Rated Engine Speed
2800 rpm
2600 rpm
Engine Power (Gross)
24 hp
24 hp
PTO Power
18.3 hp
Gear: 20.4 hp; HST: 19.2 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Water-cooled
Liquid-cooled
Air Cleaner
Single dry
Not Published
Fuel System
IDI
Indirect low-pressure injection
Alternator
50 A, 12 V
Not Published
Pump Type
Dual gear pump
Gear-type pump
Implement Flow
4.4 gpm
Not Published
Steering Flow
2.7 gpm
3.8 gpm
Total Hydraulic Flow
7.1 gpm
10.5 gpm
Overall Hydraulic Pump Flow
7.1 gpm
Not Published
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
6.7 gpm
No. of Standard Remote Valves
None
Not Published
No. of Optional Remote Valves
1
Up to 2
Fuel Tank Capacity
6.6 gal
10.04 gal
Coolant Capacity
5.9 qt
1.32 gal
Crankcase Capacity
4.5 qt
1.22 gal
Transmission / Hydraulic System Capacity
4.7 gal
10.04 gal
Front Axle Fluid Capacity
4.7 qt
1.48 gal
PTO Type
Independent
Transmission driven
PTO Rear
540 rpm
540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability
Available
Not Published
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
1,534 lb
2,205 lb
Hitch Lift Capacity (at 24”)
1,102 lb
1,600 lb
Lift Control Type
Position control
Not Published
Transmission Type
HST
9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic
No. of Speeds
Infinite 2-Range
Gear: 9F / 3R; HST: 3-range
Max Travel Speed (Forward)
12.9 mph
Not Published
Max Travel Speed (Reverse)
Not Published
Not Published
Clutch
Dry single plate
Gear: dry single disc
Differential Lock & Limited Slip Options
Differential lock
Mechanical engagement via heel pedal
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Power steering
Brakes
Wet disc
Internal wet brakes, single brake pedal on HST, two brake pedals on gear models
Seat Suspension & Adjustability
Adjustable seat (sliding)
Suspended vinyl seat with retractable seatbelt, fixed steering wheel
Front Axle Type
4WD center-pivot, reverse Eliot type
Cast-steel 4WD front axle, center driveline, bevel-gear final drives
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Width
52.8 in
52.4 in
Wheelbase
58.3 in
65.9 in
Ground Clearance
7.7 in
Not Published
Min. Turn Radius without Brakes
105.5 in
Not Published
Height to Top of ROPS
89.8 in
97.6 in
Height to Top of ROPS (folded)
Not Published
63.8 in
Height to Top of Cab Model
Not Published
Not Published
Overall Length
107.8 in (with 3-point hitch)
116 in (without 3-point hitch)
Tractor Weight (Base)
1,881 lb (with ROPS)
Gear: 2,600 lb; HST: 2,657 lb (ROPS base weight without ballast)
Weight with ROPS and Loader
2,564 lb (1,881 + 683, computed; TX2000 loader with bucket)
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R3 Turf, R4 Industrial, R4 Lg Industrial
Not Published
R1 Agricultural - Front
Not Published
Not Published
R1 Agricultural - Rear
Not Published
Not Published
R3 Turf - Front
Turf Master 23x8.50-12 NHS TL 4PR
Not Published
R3 Turf - Rear
Multi-Trac CS 33x12.50-16.5 NHS TL 4PR
Not Published
R4 Industrial - Front
Trac Chief 23x8.50-12 NHS TL 4PR
Not Published
R4 Industrial - Rear
Trac Chief 12-16.5 NHS TL 6PR
Not Published
Quick Attach Loader System
TX2000: Quick attach mechanism
FLx2407: skid steer or pin-type implement attachments
Loader Model
TX2000
FLx2407
Loader Lift Height
TX2000: 86.9 in
FLx2407: 94.3 in (at pivot pin)
Loader Lift Capacity (Full Height)
TX2000: 1,380 lb (at pivot pin)
FLx2407: 1,450 lb (at pivot pin, full height)
Loader Breakout Force
TX2000: 2,059 lb (at pivot pin, ground level)
FLx2407: 2,288 lb (at pivot pin)
Warranty Length & Coverage
Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months
