TYM T264 vs TYM 2400 | Side-by-side comparison | ITC Resource Center
Compare Tractors

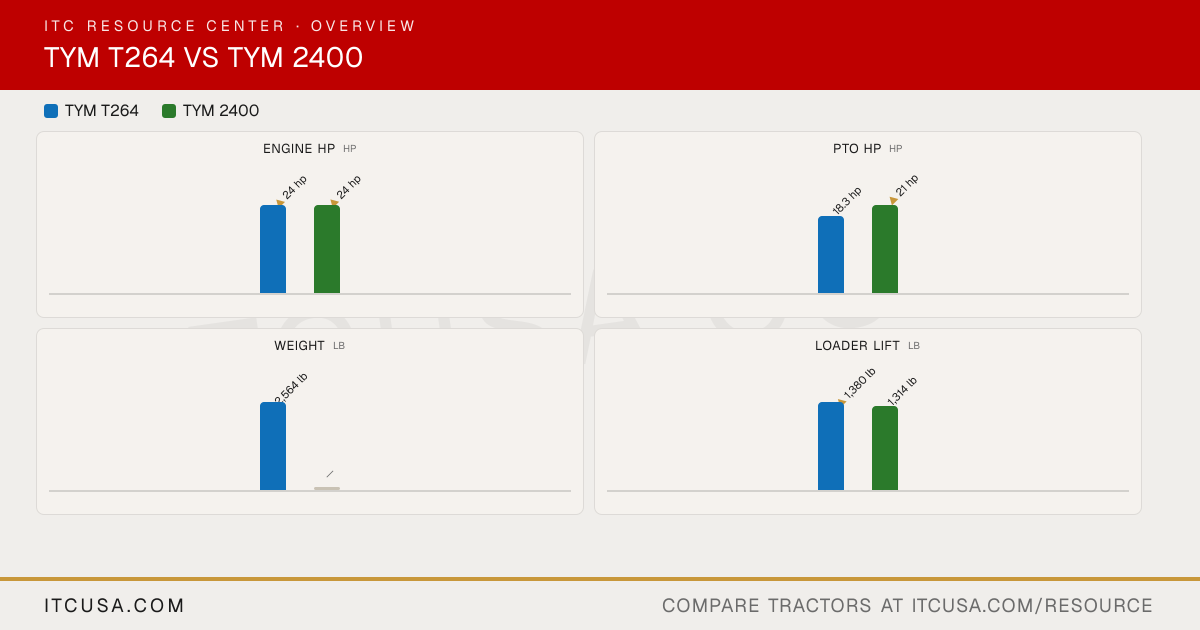

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT264
TYM2400
Engine Manufacturer
TYM
TYM
Engine Model
T1100N2
T1100N2
Engine Type
3-cylinder, naturally aspirated diesel
3-cylinder, naturally aspirated diesel
No. of Cylinders
3
3
Displacement
71.7 in³
71.7 in³
Rated Engine Speed
2800 rpm
2850 rpm
Engine Power (Gross)
24 hp
24 hp
PTO Power
18.3 hp
21 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Water-cooled
Not Published
Air Cleaner
Single dry
Dry element
Fuel System
IDI
IDI
Alternator
50 A, 12 V
60 A, 12 V
Pump Type
Dual gear pump
Dual gear pump
Implement Flow
4.4 gpm
4.7 gpm
Steering Flow
2.7 gpm
3.3 gpm
Total Hydraulic Flow
7.1 gpm
7.9 gpm
Overall Hydraulic Pump Flow
7.1 gpm
7.9 gpm
Hydraulic System Type
Open center
Dual gear pump
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
None
None
No. of Optional Remote Valves
1
2
Fuel Tank Capacity
6.6 gal
6.0 gal
Coolant Capacity
5.9 qt
5.3 qt
Crankcase Capacity
4.5 qt
2.9 qt
Transmission / Hydraulic System Capacity
4.7 gal
3.7 gal
Front Axle Fluid Capacity
4.7 qt
3.5 qt
PTO Type
Independent
Live
PTO Rear
540 rpm
540/1000 rpm
Mid-PTO Availability
Available
Available
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
1,534 lb
1,499 lb
Hitch Lift Capacity (at 24”)
1,102 lb
974 lb
Lift Control Type
Position control
Position control
Transmission Type
HST
2400R: Constant Mesh; 2400H: HST
No. of Speeds
Infinite 2-Range
2400R: F6 x R2; 2400H: 2-Range
Max Travel Speed (Forward)
12.9 mph
2400R: 9.9 mph; 2400H: 12.1 mph
Max Travel Speed (Reverse)
Not Published
2400R: 3.9 mph; 2400H: 12.1 mph
Clutch
Dry single plate
Dry single plate
Differential Lock & Limited Slip Options
Differential lock
Differential lock
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic
Brakes
Wet disc
Wet, Multi disc
Seat Suspension & Adjustability
Adjustable seat (sliding)
Comfortable suspension seat
Front Axle Type
4WD center-pivot, reverse Eliot type
4WD
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Width
52.8 in
44.2 in
Wheelbase
58.3 in
59.1 in
Ground Clearance
7.7 in
12.1 in
Min. Turn Radius without Brakes
105.5 in
(L) 9.6 ft; (R) 9.5 ft
Height to Top of ROPS
89.8 in
87.3 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Overall Length
107.8 in (with 3-point hitch)
120.3 in (with 3-point hitch)
Tractor Weight (Base)
1,881 lb (with ROPS)
2400R: 1,792 lb; 2400H: 1,829 lb
Weight with ROPS and Loader
2,564 lb (1,881 + 683, computed; TX2000 loader with bucket)
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R3 Turf, R4 Industrial, R4 Lg Industrial
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front
Not Published
6-12
R1 Agricultural - Rear
Not Published
9.5-16
R3 Turf - Front
Turf Master 23x8.50-12 NHS TL 4PR
23x8.50-12
R3 Turf - Rear
Multi-Trac CS 33x12.50-16.5 NHS TL 4PR
33x12.50-16.5
R4 Industrial - Front
Trac Chief 23x8.50-12 NHS TL 4PR
23x8.50-12
R4 Industrial - Rear
Trac Chief 12-16.5 NHS TL 6PR
12-16.5
Quick Attach Loader System
TX2000: Quick attach mechanism
BL100S: Quick attach mechanism
Loader Model
TX2000
BL100S
Loader Lift Height
TX2000: 86.9 in
BL100S: 88.3 in
Loader Lift Capacity (Full Height)
TX2000: 1,380 lb (at pivot pin)
BL100S: 1,314 lb (at pivot pin)
Loader Breakout Force
TX2000: 2,059 lb (at pivot pin, ground level)
BL100S: 1,960 lb (at pivot pin, ground level)
Warranty Length & Coverage
Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months
Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months
