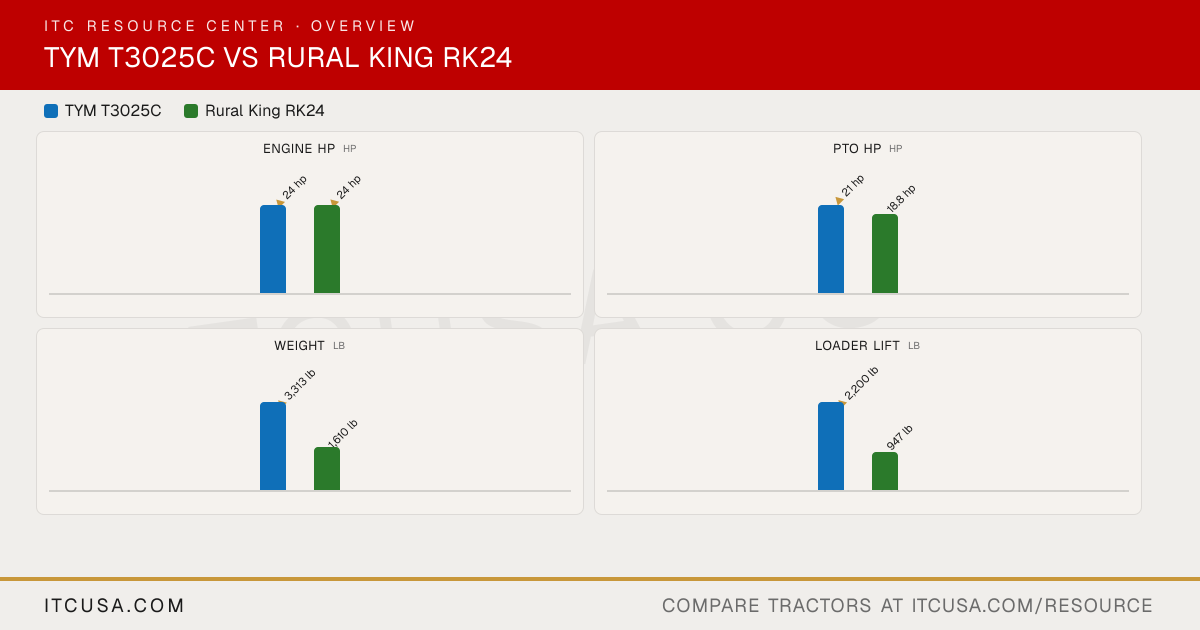

▶ EngineEngine Manufacturer TYM Yanmar Engine Model T1700N6 3TNV80F Engine Type 3-cylinder, naturally aspirated diesel Water cooled, 4-cycle diesel No. of Cylinders 3 3 Displacement 104.5 in³ 77.3 in³ Rated Engine Speed 2100 rpm 3000 rpm Engine Power (Gross) 24 hp 24 hp PTO Power 21 hp 18.8 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Not Published Water cooled, forced circulation Air Cleaner Dry element Single element Fuel System IDI (indirect injection) Indirect fuel injection Alternator 70 A, 12 V 40 A, 12 V ▶ HydraulicsPump Type Dual gear pump Not Published Implement Flow 7.7 gpm 4.18 gpm Steering Flow 4.2 gpm 2.77 gpm Total Hydraulic Flow 11.9 gpm 6.95 gpm Overall Hydraulic Pump Flow 11.9 gpm 6.95 gpm Hydraulic System Type Not Published Live, independent Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Loader: 4 / Rear: 0 1 No. of Optional Remote Valves Up to 4 Not Published ▶ Fluid CapacityFuel Tank Capacity 7.1 gal 5.81 gal Coolant Capacity 5.3 qt 0.96 gal Crankcase Capacity 4.5 qt 0.71 gal Transmission / Hydraulic System Capacity 9.8 gal 3.83 gal Front Axle Fluid Capacity 6.8 qt 0.85 gal ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published 2,000 rpm Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 3,306 lb 1,323 lb Hitch Lift Capacity (at 24”) 2,425 lb 1,058 lb Lift Control Type Position control Position ▶ Transmission & DrivetrainTransmission Type HST 2-range hydrostatic No. of Speeds 3-Range 2 ranges (high/low), infinite forward and reverse Max Travel Speed (Forward) 14.6 mph 11.2 mph Max Travel Speed (Reverse) 14.6 mph Not Published Clutch None (HST) Electro-hydraulic PTO clutch assembly (hydrostatic drive, no traction clutch) Differential Lock & Limited Slip Options Differential lock (standard) 4WD with differential lock (bevel gears with diff-lock) ▶ Chassis, Steering & ControlsFrame Type Not Published Unit frame: engine, transmission and front axle support bolted together into a rigid assembly Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet, multi-disc Wet disc, independent foot pedals that lock together Seat Suspension & Adjustability Suspension seat Suspension seat with armrests & retractable seat belt Front Axle Type Not Published 4WD, center-pivot reverse Eliot type Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 56.6 in 45.8 in Wheelbase 65.7 in 57.5 in Ground Clearance 13.1 in 9.4 in Min. Turn Radius without Brakes L: 105.51 in; R: 104.72 in Not Published Height to Top of ROPS Not Published 91.3 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 89.3 in Not Published Overall Length 120.9 in (with 3-point hitch) 100.5 in ▶ WeightTractor Weight (Base) 3,313 lb (with cab) 1,610 lb Weight with ROPS and Loader Not Published 2,091 lb (1,610 + 481, computed) Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural 7-16 / 11.2-24; Golf (turf) tires 27x8.5-15 / 41x14.00; R4 Industrial 25x8.5-14 / 380/70-19.5 Titan: R4 Industrial (Std), R3 Turf (Opt), R1 Agricultural (Opt), R14 (Opt) R1 Agricultural - Front 7-16, 6PR 6-12 R1 Agricultural - Rear 11.2-24, 8PR 9.5-16 R3 Turf - Front 27x8.5-15, 6PR (golf tire) 20x8-10 R3 Turf - Rear 41x14.00, 4PR (golf tire) 29x12.5-15 R4 Industrial - Front 25x8.5-14, 6PR 20x8-10 R4 Industrial - Rear 380/70-19.5, 6PR 27x12.5-15 ▶ Loader & AttachmentsQuick Attach Loader System Not Published L75: skid-steer compatible quick-attach Loader Model L3035 L75 Loader Lift Height L3035: 104.9 in L75: 75.3 in (maximum lift height to pivot pin) Loader Lift Capacity (Full Height) L3035: 2,200 lb (at pivot pin) L75: 947 lb (at pivot pin, to full height) Loader Breakout Force L3035: 3,422 lb (at pivot pin, ground level) L75: 1,680 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months Government and non-institutional: basic 24 months or 2,000 hours, powertrain 96 months or 3,000 hours; all other use: basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours ▶ ITC Company AccessoriesAccessories that fit
