Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

TYMT3025C

—

SolisH24cabin

Comparison loaded for 2 tractors.

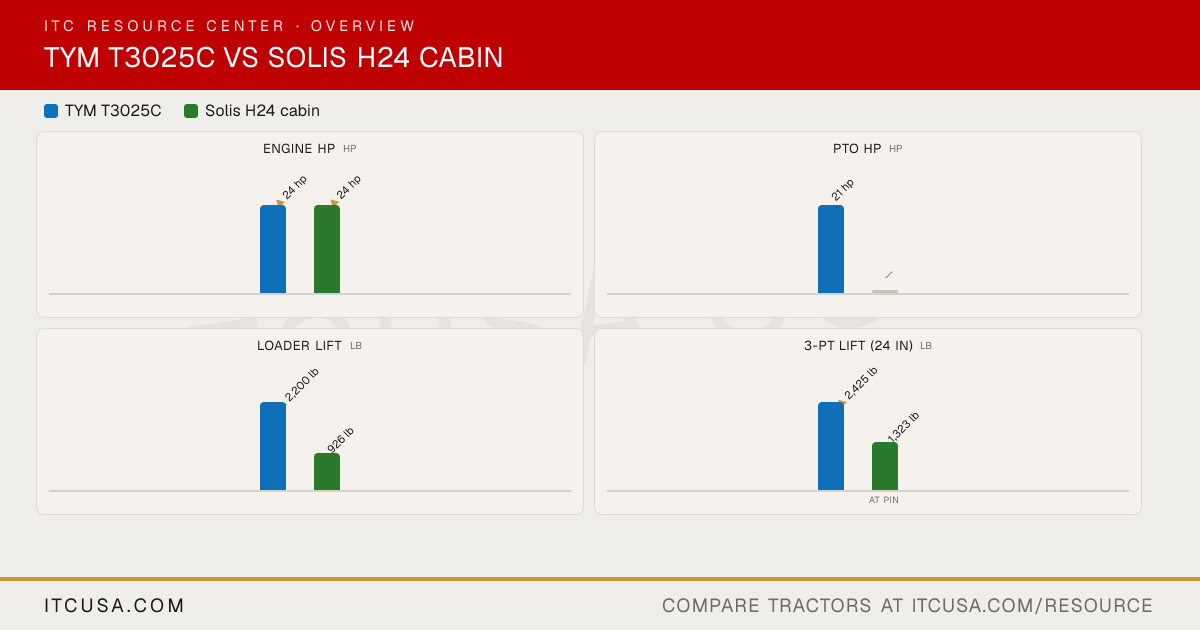

The headline numbers at a glance.

TYM T3025CSolis H24 cabin

Engine HPhp

▲24 hp

PTO HPhp

21 hp

—

Weightlb

—

Loader Liftlb

▲2,200 lb

926 lb

3-Pt Lift (24 in)lb

▲2,425 lb

1,323 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYMT3025C	SolisH24 cabin


PTO Power	21 hp	Not Published
Alternator	70 A, 12 V	Not Published
Air Cleaner	Dry element	Not Published
Engine Type	3-cylinder, naturally aspirated diesel	Diesel, Natural Aspiration
Fuel System	IDI	Indirect Injection
Displacement	104.6 in³	80.42 ci
No. of Cylinders	3	3
Rated Engine Speed	2100 rpm	2500 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	TYM	Mitsubishi
Engine Power (Gross)	24 hp	24 hp
Engine Emissions Constraints	Tier 4	Not Published
Engine Model	—	Mitsubishi S3L2

Weight with ROPS and Loader	Not Applicable	Not Applicable
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	3-year warranty; 7-year limited powertrain

Pump Type	Dual gear pump	Not Published
Steering Flow	4.2 gpm	Not Published
Implement Flow	7.7 gpm	3.98 gpm 15.1 lpm
Total Hydraulic Flow	11.9 gpm	3 gpm
Hydraulic System Type	Open center	open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	11.9 gpm	Not Published
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	Loader: 4; Rear: 0	1

PTO Rear	540 rpm	540 RPM at 2451 RPM
PTO Type	Independent	Independent
Lift Control Type	Position control	NOT FOUND
Hitch Lift Capacity	3,306 lb	1323 lbs
Mid-PTO Availability	Not Published	Yes - 2100 RPM at 2438 RPM
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	Not Published

R3 Turf - Rear	Not Applicable	33x15.5-16.5; 13.6x16
R3 Turf - Front	Not Applicable	23x8.50-12; 25x8.50-14
Tire Size & Options	R1 Agricultural, Golf Tires, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	380/70-19.5, 6PR	33x15.5-16.5
R4 Industrial - Front	Not Published	23x8.50-12
R1 Agricultural - Rear	11.2-24, 8PR	8.3-20
R1 Agricultural - Front	7-16, 6PR	6-12

Coolant Capacity	5.3 qt	Not Published
Crankcase Capacity	4.5 qt	Not Published
Fuel Tank Capacity	7.1 gal	7 gal
Front Axle Fluid Capacity	6.8 qt	Not Published
Transmission / Hydraulic System Capacity	9.8 gal	Not Published

Loader Lift Height	104.9 in	HLN24: 82 in; HB24: 85 in
Loader Breakout Force	3,422 lb	HLN24: 1,565 lb; HB24: 1,146 lb
Quick Attach Loader System	L3048: Quick attach mechanism	HLN24 (NSL), HB24 (MSL)
Loader Lift Capacity (Full Height)	2,200 lb	926 lbs

Clutch	Not Applicable	Not Published
No. of Speeds	3-range	2 Range
Transmission Type	Hydrostatic (HST)	HST (2 Range), Constant Mesh
Max Travel Speed (Forward)	14.6 mph	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Standard

Brakes	Wet, multi-disc	Mechanical wet disc brakes
Steering	Hydrostatic	Power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	4WD
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	65.7 in	61.8 inches
Overall Width	55.6 in	47 in
Ground Clearance	13.1 in	9.44 inches (Front Axle)
Height to Top of ROPS	Not Applicable	Not Applicable
Height to Top of Cab Model	89.3 in	93 in
Height to Top of ROPS (folded)	Not Applicable	Not Applicable
Min. Turn Radius without Brakes	L: 105.51 in; R: 104.72 in	Not Published
Overall Length with 3-Point Hitch	120.9 in	113.98 inches

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet
