TYM T4058P vs Bobcat CT4058 | Side-by-side comparison | ITC Resource Center
Compare Tractors

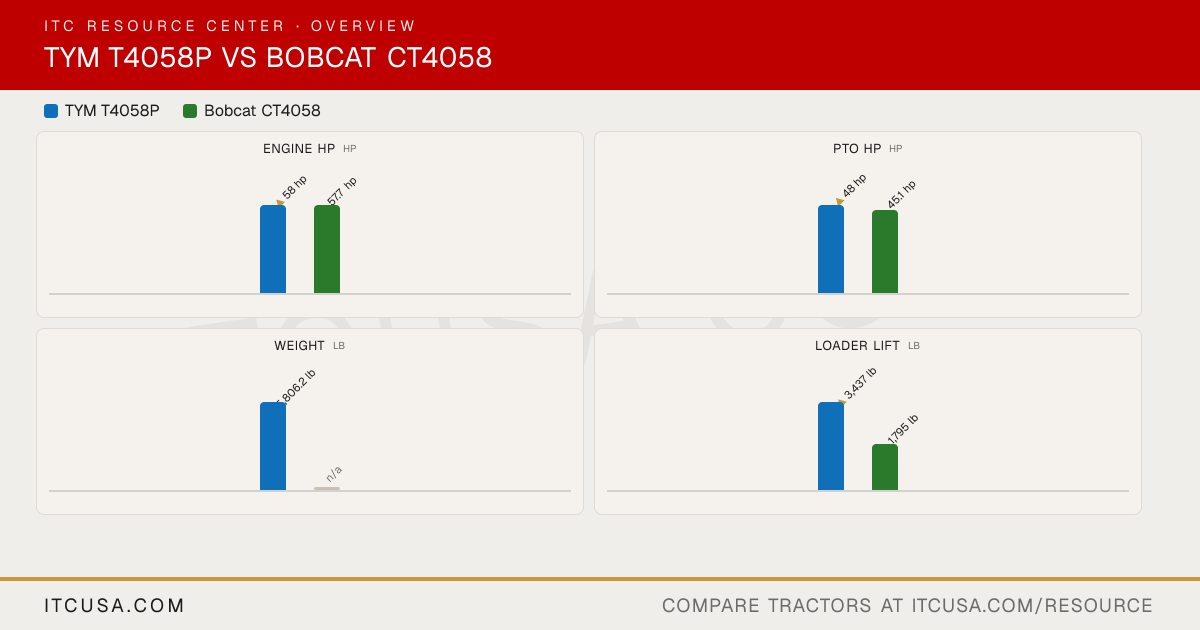

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT4058P
BobcatCT4058
Engine Manufacturer
TYM
Daedong
Engine Model
T2300T1-UTR_4
3FT-THL4-U
Engine Type
4-cylinder, turbocharged diesel
Turbocharged diesel
No. of Cylinders
4
3
Displacement
139.5 in³
111.4 in³
Rated Engine Speed
2600 rpm
2750 rpm
Engine Power (Gross)
58 hp
57.7 hp
PTO Power
48 hp
45.1 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Not Published
Liquid-cooled
Air Cleaner
Dry element
Dry type, replaceable
Fuel System
IDI (indirect injection)
Common rail direct injection
Alternator
70 A, 12 V
75 A, 12 V
Pump Type
Single gear pump
Not Published
Implement Flow
11.4 gpm
9.6 gpm
Steering Flow
5.13 gpm
6.9 gpm
Total Hydraulic Flow
16.5 gpm
16.5 gpm
Overall Hydraulic Pump Flow
16.5 gpm
16.5 gpm
Hydraulic System Type
Not Published
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Loader: 4; Rear: 4
1 pair
No. of Optional Remote Valves
Not Published
1 pair (2nd pair optional)
Fuel Tank Capacity
15.32 gal
12.7 gal
Coolant Capacity
6.2 qt
3.5 qt
Crankcase Capacity
4.7 qt
7.8 qt
Transmission / Hydraulic System Capacity
11.6 gal
Not Published
Front Axle Fluid Capacity
6.8 qt
5.9 qt
PTO Type
Independent
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
Optional: 2119 rpm
Category, 3-Point Hitch
Category II
Category I
Hitch Lift Capacity
4,409 lb
2716 lb
Hitch Lift Capacity (at 24”)
3,748 lb
2716 lb
Lift Control Type
Position and draft control (electronic)
Hydraulic Position Control System
Transmission Type
Power shuttle
3-Range HST
No. of Speeds
F12 x R12
Infinite forward and reverse (3-range)
Max Travel Speed (Forward)
24.04 mph
18.0 mph
Max Travel Speed (Reverse)
19.39 mph
12.6 mph
Clutch
Wet, multi-disc
Not Published
Differential Lock & Limited Slip Options
Standard differential lock
Rear differential lock (standard)
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic power steering
Brakes
Wet, multi-disc
Wet multi-disc
Seat Suspension & Adjustability
Suspension seat
Adjustable seat (standard)
Front Axle Type
4WD (selectable 2WD/4WD)
Four-wheel drive (standard)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
1653 lb
Overall Length with 3-Point Hitch
141.5 in
125.5 in
Overall Width
68.9 in
70.3 in
Wheelbase
78.7 in
71.2 in
Ground Clearance
18.1 in
15.3 in
Min. Turn Radius without Brakes
L: 139.7 in; R: 141.9 in
103.5 in (with brake applied)
Height to Top of ROPS
104.7 in
97.4 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
4,506.2 lb
3745 lb
Weight with ROPS and Loader
5,806.2 lb
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf (golf), R4 Industrial
R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front
9.5-20
8-16
R1 Agricultural - Rear
14.9-28
13.6-24
R3 Turf - Front
29x12.5-15
29x12.5-15
R3 Turf - Rear
44x18.00-20
44x18.0-20
R4 Industrial - Front
10.5/80-18
10-16.5
R4 Industrial - Rear
16.9-24
17.5L-24
Quick Attach Loader System
L4058P: Quick attach mechanism
Front-end loader with standard quick attach mounting system
Loader Model
L4058P
FL9
Loader Lift Height
L4058P: 117.5 in
103.2 in
Loader Lift Capacity (Full Height)
L4058P: 3,437 lb
1795 lb
Loader Breakout Force
L4058P: 4,742 lb
4136 lbf
Warranty Length & Coverage
Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3,000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes
