TYM T4058P vs Bobcat CT5558 | Side-by-side comparison | ITC Resource Center
Compare Tractors

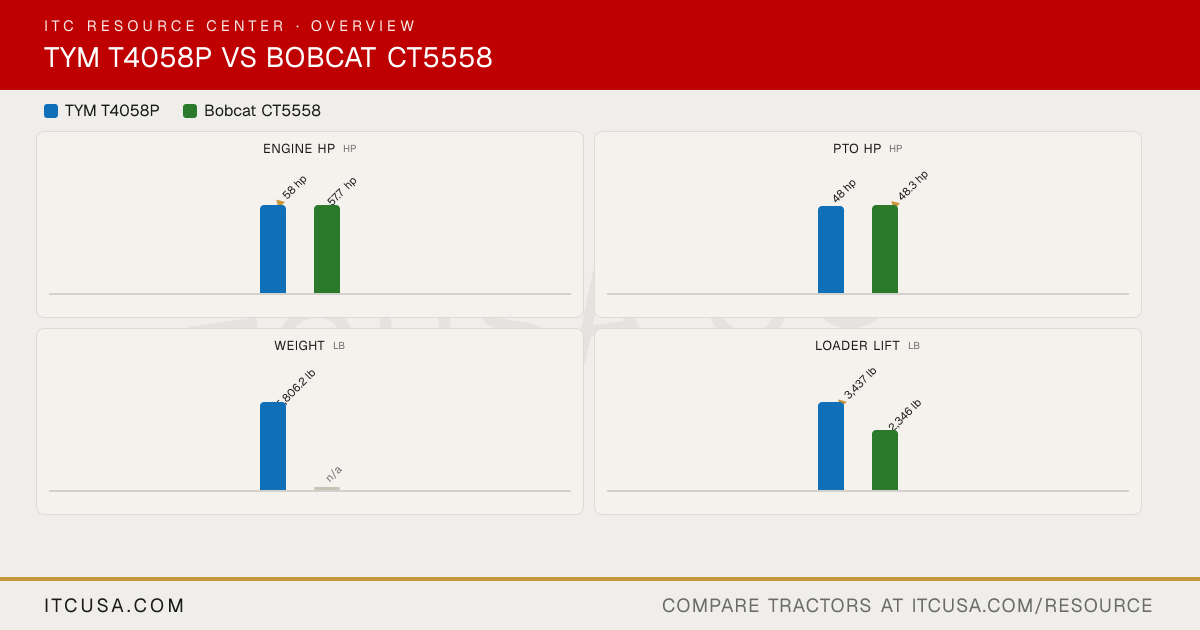

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT4058P
BobcatCT5558
Engine Manufacturer
TYM
Daedong
Engine Model
T2300T1-UTR_4
3FT-TH4-U
Engine Type
4-cylinder, turbocharged diesel
Turbocharged diesel
No. of Cylinders
4
3
Displacement
139.5 in³
111.4 in³
Rated Engine Speed
2600 rpm
2750 rpm
Engine Power (Gross)
58 hp
57.7 hp
PTO Power
48 hp
48.3 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Not Published
Liquid-cooled
Air Cleaner
Dry element
Not Published
Fuel System
IDI (indirect injection)
Not Published
Alternator
70 A, 12 V
Not Published
Pump Type
Single gear pump
Not Published
Implement Flow
11.4 gpm
9.6 gpm
Steering Flow
5.13 gpm
8.2 gpm
Total Hydraulic Flow
16.5 gpm
17.8 gpm
Overall Hydraulic Pump Flow
16.5 gpm
17.8 gpm
Hydraulic System Type
Not Published
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Loader: 4; Rear: 4
1
No. of Optional Remote Valves
Not Published
2
Fuel Tank Capacity
15.32 gal
14.8 gal
Coolant Capacity
6.2 qt
Not Published
Crankcase Capacity
4.7 qt
Not Published
Transmission / Hydraulic System Capacity
11.6 gal
Not Published
Front Axle Fluid Capacity
6.8 qt
Not Published
PTO Type
Independent
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
Optional: 2103 rpm
Category, 3-Point Hitch
Category II
Category I
Hitch Lift Capacity
4,409 lb
Not Published
Hitch Lift Capacity (at 24”)
3,748 lb
3177 lb
Lift Control Type
Position and draft control (electronic)
Position with draft control
Transmission Type
Power shuttle
3-Range E-HST (electronic hydrostatic)
No. of Speeds
F12 x R12
Infinite forward and reverse (3-range)
Max Travel Speed (Forward)
24.04 mph
17.5 mph
Max Travel Speed (Reverse)
19.39 mph
17.5 mph
Clutch
Wet, multi-disc
Not Published
Differential Lock & Limited Slip Options
Standard differential lock
Rear differential lock (standard)
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic power steering
Brakes
Wet, multi-disc
Wet multi-disc
Seat Suspension & Adjustability
Suspension seat
Adjustable seat (standard)
Front Axle Type
4WD (selectable 2WD/4WD)
Four-wheel drive (standard)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
141.5 in
139.6 in
Overall Width
68.9 in
74.2 in
Wheelbase
78.7 in
75.6 in
Ground Clearance
18.1 in
13.0 in
Min. Turn Radius without Brakes
L: 139.7 in; R: 141.9 in
117.6 in (with brake applied)
Height to Top of ROPS
104.7 in
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
94.2 in
Tractor Weight (Base)
4,506.2 lb
4685 lb
Weight with ROPS and Loader
5,806.2 lb
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf (golf), R4 Industrial
Industrial (standard), Agricultural, Turf
R1 Agricultural - Front
9.5-20
Not Published
R1 Agricultural - Rear
14.9-28
Not Published
R3 Turf - Front
29x12.5-15
Not Published
R3 Turf - Rear
44x18.00-20
Not Published
R4 Industrial - Front
10.5/80-18
Not Published
R4 Industrial - Rear
16.9-24
Not Published
Quick Attach Loader System
L4058P: Quick attach mechanism
Front-end loader with standard quick attach mounting system
Loader Model
L4058P
FL9-5
Loader Lift Height
L4058P: 117.5 in
108.6 in
Loader Lift Capacity (Full Height)
L4058P: 3,437 lb
2346 lb
Loader Breakout Force
L4058P: 4,742 lb
4524 lbf
Warranty Length & Coverage
Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3,000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes
24 months or 1,500 hours (whichever occurs first); powertrain 48 months unlimited hours for consumer use, 36 months or 2,000 hours for commercial use
