Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

TYMT4058P

n/a

NewHollandBoomer55

Comparison loaded for 2 tractors.

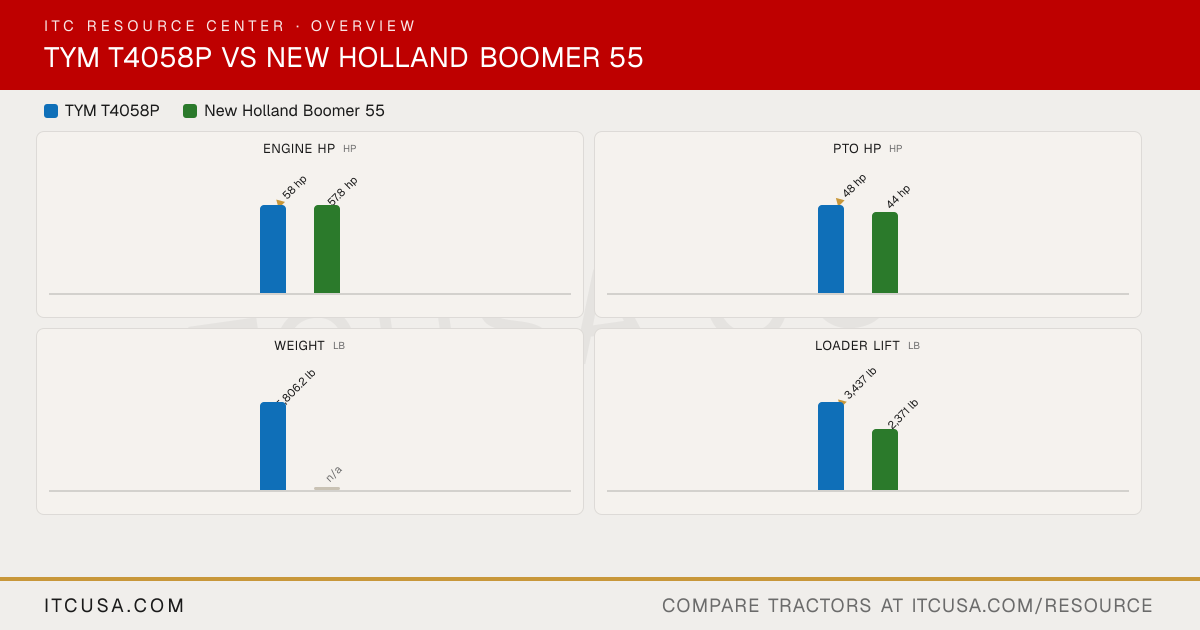

The headline numbers at a glance.

TYM T4058PNew Holland Boomer 55

Engine HPhp

▲58 hp

55 hp

PTO HPhp

▲48 hp

46.7 hp

44 hp

GearHST

Weightlb

▲4,506.2 lb

3,424 lb

3,490 lb

4,194 lb

ROPS GearROPS HSTCab

Loader Liftlb

▲3,437 lb

2,371 lb

3-Pt Lift (24 in)lb

▲3,748 lb

2,116 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYMT4058P	New HollandBoomer 55


Engine Manufacturer	TYM	LS Mtron
Engine Model	T2300T1-UTR_4	L3CRV-T7
Engine Type	4-cylinder, turbocharged diesel	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	4	3
Displacement	139.5 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	58 hp	55 hp
PTO Power	48 hp	Gear: 46.7 hp; HST: 44 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Liquid cooled
Air Cleaner	Dry element	Replaceable primary and inner elements
Fuel System	IDI (indirect injection)	Electronically controlled common rail direct injection
Alternator	70 A, 12 V	ROPS: 70 A, 12 V; Cab: 85 A, 12 V

Pump Type	Single gear pump	Gear
Implement Flow	11.4 gpm	8.2 gpm
Steering Flow	5.13 gpm	Gear: 4.2 gpm; HST: 5.3 gpm
Total Hydraulic Flow	16.5 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Overall Hydraulic Pump Flow	16.5 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Loader: 4; Rear: 4	1
No. of Optional Remote Valves	Not Published	Up to 2 (second valve optional)

Fuel Tank Capacity	15.32 gal	ROPS: 10.5 gal; Cab: 12.4 gal
Coolant Capacity	6.2 qt	2.3 gal
Crankcase Capacity	4.7 qt	5.8 qt
Transmission / Hydraulic System Capacity	11.6 gal	11.4 gal
Front Axle Fluid Capacity	6.8 qt	2.2 gal

PTO Type	Independent	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Standard (2000 rpm)
Category, 3-Point Hitch	Category II	Category I
Hitch Lift Capacity	4,409 lb	2,756 lb
Hitch Lift Capacity (at 24”)	3,748 lb	2,116 lb
Lift Control Type	Position and draft control (electronic)	Position control (draft control optional)

Transmission Type	Power shuttle	Gear: 16x16 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal
No. of Speeds	F12 x R12	Gear: 16F/16R; HST: 3-range
Max Travel Speed (Forward)	24.04 mph	Gear: 17.0 mph; HST: 17.9 mph
Max Travel Speed (Reverse)	19.39 mph	Gear: 15.3 mph; HST: 11.37 mph
Clutch	Wet, multi-disc	Gear: dry single disc (10.8 in); HST: n/a
Differential Lock & Limited Slip Options	Standard differential lock	Mechanical rear differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Hydrostatic	Power steering
Brakes	Wet, multi-disc	Wet multi-disc
Seat Suspension & Adjustability	Suspension seat	ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth suspension seat with weight control, fore/aft adjustment and adjustable armrests
Front Axle Type	4WD (selectable 2WD/4WD)	Four-wheel drive (FWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Short position: 2,317 lb; Regular position: 1,598 lb; Extended position: 1,091 lb

Overall Length with 3-Point Hitch	141.5 in	128.1 in
Overall Width	68.9 in	69.1 in
Wheelbase	78.7 in	73.2 in
Ground Clearance	18.1 in	15 in
Min. Turn Radius without Brakes	L: 139.7 in; R: 141.9 in	111.8 in (right turn); 123.2 in (left turn) (with brake applied)
Height to Top of ROPS	104.7 in	97.1 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	94 in

Tractor Weight (Base)	4,506.2 lb	ROPS Gear: 3,424 lb; ROPS HST: 3,490 lb; Cab: 4,194 lb
Weight with ROPS and Loader	5,806.2 lb	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf (golf), R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	9.5-20	9.5-16
R1 Agricultural - Rear	14.9-28	13.6-24
R3 Turf - Front	29x12.5-15	28x8.50-15
R3 Turf - Rear	44x18.00-20	41x14.00-20
R4 Industrial - Front	10.5/80-18	12x16.5
R4 Industrial - Rear	16.9-24	17.5Lx24

Quick Attach Loader System	L4058P: Quick attach mechanism	New Holland Quick Mount loader; optional skid steer quick attach plates
Loader Model	L4058P	260TLA
Loader Lift Height	L4058P: 117.5 in	260TLA: 109 in
Loader Lift Capacity (Full Height)	L4058P: 3,437 lb	260TLA: 2,371 lb
Loader Breakout Force	L4058P: 4,742 lb	260TLA: 4,081 lb

Warranty Length & Coverage	Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3,000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes	Boomer Guard6 limited warranty: 2 years/750 hours full coverage plus 4 more years of powertrain coverage (6 years/1,500 hours total)

Find a TYM dealer near you Find a New Holland dealer near you

Permanent page for this matchup: TYM T4058P vs New Holland Boomer 55
