TYM T4058P vs TYM 5835 | Side-by-side comparison | ITC Resource Center
Compare Tractors

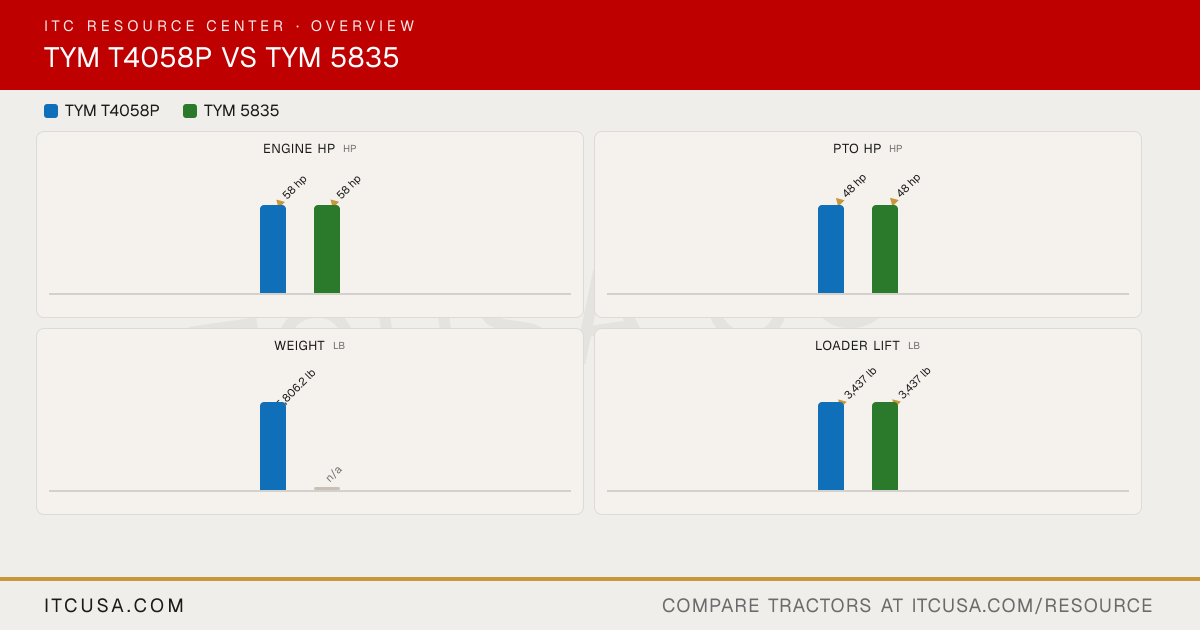

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT4058P
TYM5835
Engine Manufacturer
TYM
TYM
Engine Model
T2300T1-UTR_4
T2300T3
Engine Type
4-cylinder, turbocharged diesel
4-cylinder, turbocharged diesel
No. of Cylinders
4
4
Displacement
139.5 in³
139.5 in³
Rated Engine Speed
2600 rpm
2600 rpm
Engine Power (Gross)
58 hp
58 hp
PTO Power
48 hp
48 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Not Published
Not Published
Air Cleaner
Dry element
Dry element
Fuel System
IDI (indirect injection)
IDI (indirect injection)
Alternator
70 A, 12 V
70 A, 12 V
Pump Type
Single gear pump
Single gear pump
Implement Flow
11.4 gpm
11.4 gpm
Steering Flow
5.13 gpm
5.2 gpm
Total Hydraulic Flow
16.5 gpm
16.5 gpm
Overall Hydraulic Pump Flow
16.5 gpm
16.5 gpm
Hydraulic System Type
Not Published
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Loader: 4; Rear: 4
Loader: 4; Rear: 2
No. of Optional Remote Valves
Not Published
Not Published
Fuel Tank Capacity
15.32 gal
15.3 gal
Coolant Capacity
6.2 qt
6.2 qt
Crankcase Capacity
4.7 qt
4.8 qt
Transmission / Hydraulic System Capacity
11.6 gal
11.6 gal
Front Axle Fluid Capacity
6.8 qt
6.8 qt
PTO Type
Independent
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category II
Category II
Hitch Lift Capacity
4,409 lb
4,409 lb
Hitch Lift Capacity (at 24”)
3,748 lb
3,748 lb
Lift Control Type
Position and draft control (electronic)
Mechanical
Transmission Type
Power shuttle
Power shuttle
No. of Speeds
F12 x R12
F12 x R12
Max Travel Speed (Forward)
24.04 mph
19.9 mph
Max Travel Speed (Reverse)
19.39 mph
18.9 mph
Clutch
Wet, multi-disc
Wet, multi-disc
Differential Lock & Limited Slip Options
Standard differential lock
Standard differential lock
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic
Brakes
Wet, multi-disc
Wet, multi-disc
Seat Suspension & Adjustability
Suspension seat
Suspension seat
Front Axle Type
4WD (selectable 2WD/4WD)
4WD (selectable 2WD/4WD)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
141.5 in
136.4 in
Overall Width
68.9 in
68.9 in
Wheelbase
78.7 in
78.7 in
Ground Clearance
18.1 in
18.1 in
Min. Turn Radius without Brakes
L: 139.7 in; R: 141.9 in
L: 124.4 in; R: 124.0 in
Height to Top of ROPS
104.7 in
102.8 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
4,506.2 lb
4,299 lb
Weight with ROPS and Loader
5,806.2 lb
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf (golf), R4 Industrial
R1 Agricultural, R4 Industrial
R1 Agricultural - Front
9.5-20
9.5-20
R1 Agricultural - Rear
14.9-28
14.9-28
R3 Turf - Front
29x12.5-15
Not Published
R3 Turf - Rear
44x18.00-20
Not Published
R4 Industrial - Front
10.5/80-18
10.5/80-18
R4 Industrial - Rear
16.9-24
16.9-24
Quick Attach Loader System
L4058P: Quick attach mechanism
BL350: Quick attach mechanism
Loader Model
L4058P
BL350
Loader Lift Height
L4058P: 117.5 in
BL350: 117.5 in
Loader Lift Capacity (Full Height)
L4058P: 3,437 lb
BL350: 3,437 lb
Loader Breakout Force
L4058P: 4,742 lb
BL350: 4,742 lb
Warranty Length & Coverage
Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3,000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes
Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3,000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes
