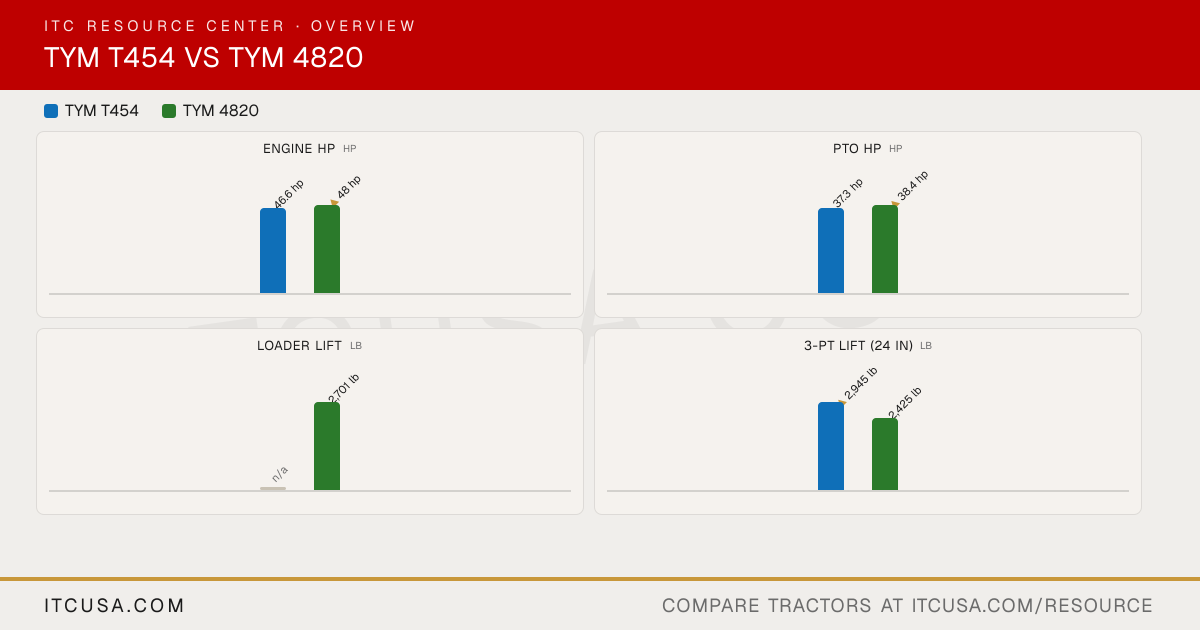

▶ EngineEngine Manufacturer Yanmar TYM Engine Model 4TNV88CR T2300N2 Engine Type 4-cylinder, naturally aspirated, liquid-cooled diesel 4-cylinder, naturally aspirated diesel No. of Cylinders 4 4 Displacement 133.6 in³ 139.5 in³ Rated Engine Speed 2800 rpm 2600 rpm Engine Power (Gross) 46 hp 48 hp PTO Power 36.7 hp 38.4 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dual dry Dry element Fuel System CRDI IDI Alternator 70 A, 12 V 50 A, 12 V ▶ HydraulicsPump Type Dual gear pump Dual gear pump Implement Flow 9.5 gpm 11.4 gpm Steering Flow 4.6 gpm 5.2 gpm Total Hydraulic Flow 14.1 gpm 16.5 gpm Overall Hydraulic Pump Flow 14.1 gpm 16.5 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 None standard (optional, up to 4) No. of Optional Remote Valves Not Published Up to 4 ▶ Fluid CapacityFuel Tank Capacity 17.0 gal 11.8 gal Coolant Capacity 9 qt 6.2 qt Crankcase Capacity 7.1 qt 4.8 qt Transmission / Hydraulic System Capacity 9.2 gal 4820R: 10.3 gal; 4820H: 11.1 gal Front Axle Fluid Capacity 10.5 qt 6.8 qt ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540/750 rpm Mid-PTO Availability Optional (Mid-PTO kit) Not Published Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 3,314 lb 3,306 lb Hitch Lift Capacity (at 24”) 2,945 lb 2,425 lb Lift Control Type Position/Draft Position control ▶ Transmission & DrivetrainTransmission Type Synchro-shuttle 4820R: Synchromesh; 4820H: HST No. of Speeds F16 x R16 4820R: F16 x R16; 4820H: 4-Range Max Travel Speed (Forward) 18.4 mph 4820R: 16 mph; 4820H: 19.5 mph Max Travel Speed (Reverse) Not Published 4820R: 15.2 mph; 4820H: 19.5 mph Clutch Dry single plate 4820R: Dry single type; 4820H: N/A (HST) Differential Lock & Limited Slip Options Rear differential lock, pedal operated Standard differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Hydrostatic Brakes Wet disc Wet, multi-disc Seat Suspension & Adjustability Not Published Suspension seat Front Axle Type 4WD, center-pivot reverse Elliot type 4WD (selectable 2WD/4WD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 63.8 in 64.9 in Wheelbase 76.2 in 71.1 in Ground Clearance 13.8 in 15.5 in Min. Turn Radius without Brakes 150.4 in L: 128.7 in; R: 126.0 in Height to Top of ROPS 102.1 in 98.4 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 141.3 in (with 3-point hitch) 127.4 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 3,814 lb 3,831 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front Farm Specialist 9.5-16 NHS TL 6PR 9.5-16 R1 Agricultural - Rear Farm Specialist 13.6-26 NHS TL 6PR 13.6-26 R3 Turf - Front Multi-Trac CS 27x10.50-15 NHS TL 4PR 27x8.5-15 / 29x12.5-15 R3 Turf - Rear Multi-Trac CS 44x18.00-20 NHS TL 4PR 41x14-20 / 44x18-20 R4 Industrial - Front Trac Chief 12-16.5 NHS TL 6PR 12-16.5 R4 Industrial - Rear Xtra Grip 17.5-24 NHS TL 6PR 17.5Lx24 ▶ Loader & AttachmentsQuick Attach Loader System TX55: Quick attach mechanism BL200: Quick attach mechanism Loader Model TX55 BL200 Loader Lift Height TX55: 109.1 in BL200: 106.6 in Loader Lift Capacity (Full Height) TX55: 2,478 lb (at pivot pin) BL200: 2,701 lb (at pivot pin) Loader Breakout Force TX55: 4,938 lb (at pivot pin, ground level) BL200: 3,660 lb (at pivot pin, ground level) ▶ WarrantyWarranty Length & Coverage Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders and backhoes 12 months Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months ▶ ITC Company AccessoriesAccessories that fit
