TYM T474 vs Kubota L4802 | Side-by-side comparison | ITC Resource Center
Compare Tractors

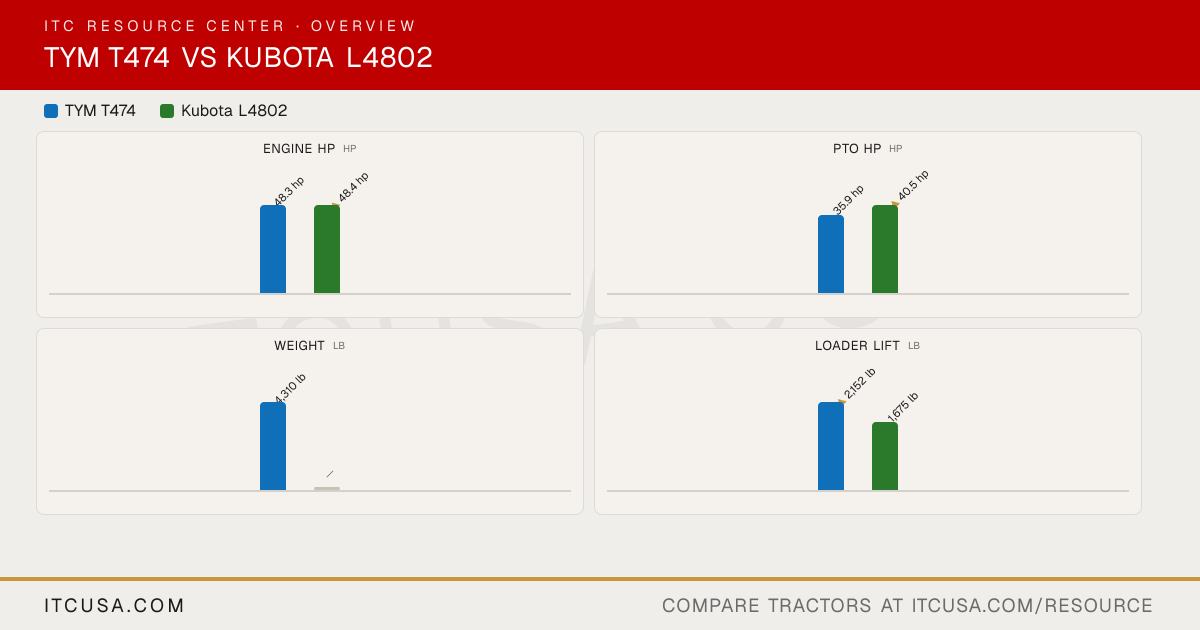

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT474
KubotaL4802
PTO Power
35.9 hp
40.5 hp
Alternator
70 A, 12 V
Not Published
Air Cleaner
Single dry
Not Published
Engine Type
4-cylinder, naturally aspirated diesel
Direct injection, vertical, water-cooled 4-cycle, diesel
Fuel System
IDI
Direct injection
Displacement
139.5 in³
148.5 in³
No. of Cylinders
4
4
Rated Engine Speed
2600 rpm
2600 rpm
Cooling System Type
Not Published
Water-cooled
Engine Manufacturer
TYM
Kubota
Engine Power (Gross)
48.3 hp
48.4 hp
Engine Emissions Constraints
Stage V
Not Published
Weight with ROPS and Loader
4,310 lb
Not Published
Weight with Cab and Loader
Not Applicable
Not Applicable
Warranty Length & Coverage
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
Dual gear pump
Not Published
Steering Flow
4.2 gpm
4.7 gpm
Implement Flow
7.7 gpm
7.8 gpm
Total Hydraulic Flow
11.9 gpm
12.5 gpm
Hydraulic System Type
Open center
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
11.9 gpm
12.5 gpm
No. of Optional Remote Valves
Not Published
Not Published
No. of Standard Remote Valves
1
Not Published
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Live independent PTO with hydraulic clutch
Lift Control Type
Position control
Position control
Hitch Lift Capacity
2,689.6 lb
2870 lb
Mid-PTO Availability
Available (Mid-PTO kit)
Not Published
Category, 3-Point Hitch
Category I
SAE Category I
Hitch Lift Capacity (at 24”)
1,764 lb
2320 lb
R3 Turf - Rear
12.5x20
DT (2WD/4WD), HST (4WD): 44X18-20; DTN (4WD): Not Applicable
