TYM T474 vs New Holland Boomer 45 | Side-by-side comparison | ITC Resource Center
Compare Tractors

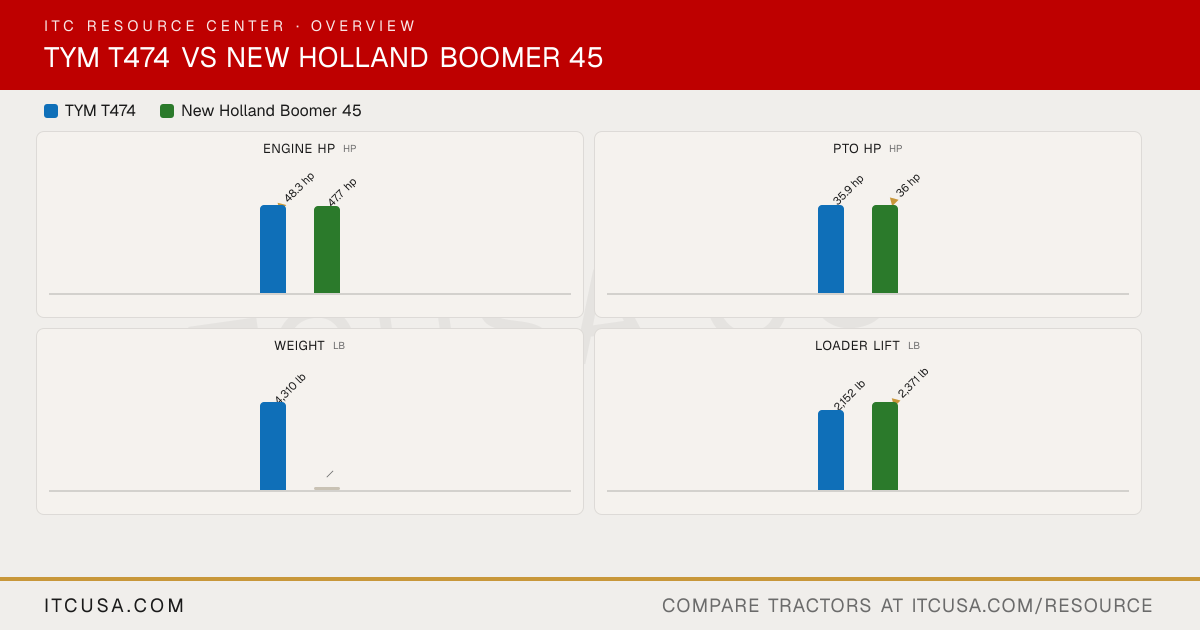

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT474
New HollandBoomer 45
PTO Power
35.9 hp
36 hp
Alternator
70 A, 12 V
70 A, 12 V
Air Cleaner
Single dry
Not Published
Engine Type
4-cylinder, naturally aspirated diesel
Water-cooled, 4-stroke common rail turbocharged diesel
Fuel System
IDI
High pressure common rail (ECU controlled)
Displacement
139.5 in³
0.1 in³
No. of Cylinders
4
3
Rated Engine Speed
2600 rpm
2600 rpm
Cooling System Type
Not Published
Pressurized liquid w/ recirculating bypass
Engine Manufacturer
TYM
LS Mtron
Engine Power (Gross)
48.3 hp
47.7 hp @ 600 rpm
Engine Emissions Constraints
Stage V
Tier 4B Final
Weight with ROPS and Loader
4,310 lb
Not Published
Weight with Cab and Loader
Not Applicable
Not Published
Warranty Length & Coverage
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
6-year limited powertrain, 2-year full coverage
Pump Type
Dual gear pump
Gear
Steering Flow
4.2 gpm
HST: 5.6 gpm; Gear: 4.2 gpm
Implement Flow
7.7 gpm
8.5 gpm
Total Hydraulic Flow
11.9 gpm
HST: 14.1 gpm; Gear: 12.7 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
11.9 gpm
HST: 14.1 gpm; Gear: 12.7 gpm
No. of Optional Remote Valves
Not Published
1
No. of Standard Remote Valves
1
1
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Independent, electro-hydraulic engagement
Lift Control Type
Position control
Position control
Hitch Lift Capacity
2,689.6 lb
2,756 lb
Mid-PTO Availability
Available (Mid-PTO kit)
Optional
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity (at 24”)
1,764 lb
2,469 lb
R3 Turf - Rear
12.5x20
41X14.00-20
R3 Turf - Front
Multi-Trac CS 27x10.5-15 NHS TL 4PR
28X8.50-15
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
Xtra Grip 43x16.00-20 NHS TL 6PR
17.5LX24
R4 Industrial - Front
Trac Chief 10-16.50 NHS TL 6PR
12X16.5
R1 Agricultural - Rear
Farm Specialist 12.4-24 NHS TL 6PR
13.6-24
R1 Agricultural - Front
Farm Specialist 8.0-16 NHS TL 6PR
9.5-16
Coolant Capacity
6.9 qt
2.3 gal
Crankcase Capacity
6.8 qt
5.8 qt
Fuel Tank Capacity
9.0 gal
11.0 gal
Front Axle Fluid Capacity
8.7 qt
2.2 gal
Transmission / Hydraulic System Capacity
8.5 gal
11.4 gal
Loader Lift Height
105.6 in
109 in
Loader Breakout Force
3,198 lb
4,081 lb
Quick Attach Loader System
TX47: Quick attachment (Skid/Euro type)
260TLA: New Holland Quick Mount; optional skid steer quick attach plates
