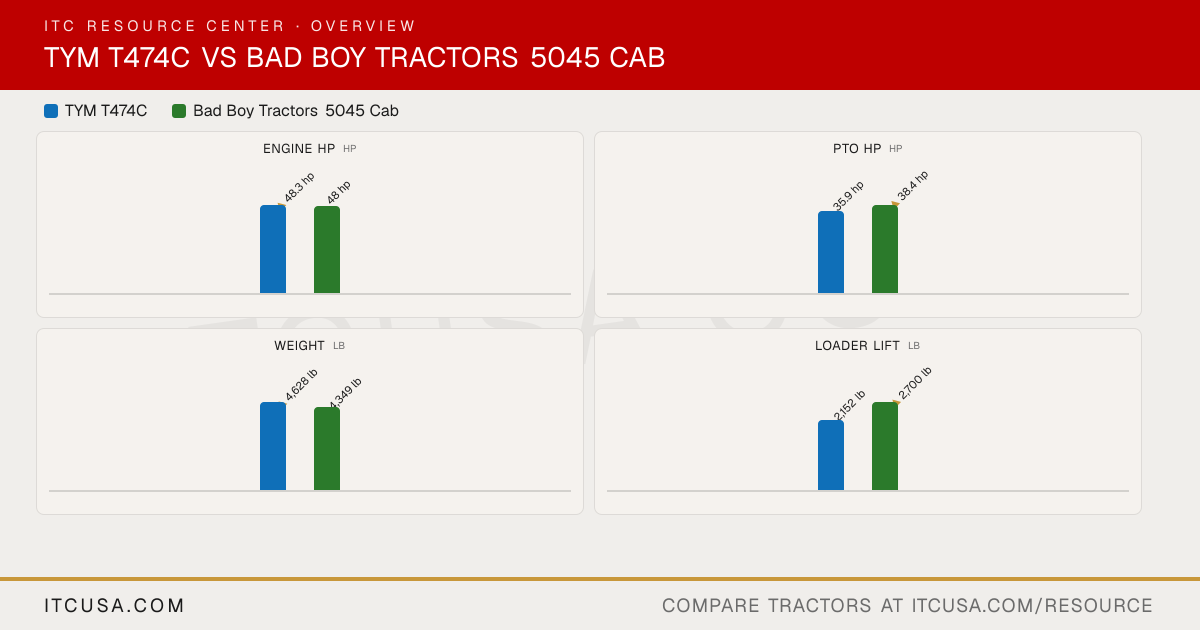

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT474C
Bad Boy Tractors5045 Cab
PTO Power
35.9 hp
38.4 hp
Alternator
70 A, 12 V
70 A, 12 V
Air Cleaner
Single dry
Dry Element
Engine Type
4-cylinder, naturally aspirated diesel
4 Cylinder Diesel
Fuel System
IDI
Diesel fuel injection system
Displacement
139.5 in³
139.5 in³
No. of Cylinders
4
4
Rated Engine Speed
2600 rpm
2600 rpm
Cooling System Type
Not Published
Liquid cooled (Water cooled)
Engine Manufacturer
TYM
Not clearly specified; engines are model A2300N3 (Natural) and A2300T11 (Turbo)
Engine Power (Gross)
48.3 hp
48 hp
Engine Emissions Constraints
Stage V
DPF / DOC
Weight with ROPS and Loader
Not Applicable
Not Applicable
Weight with Cab and Loader
4,628 lb
4,349 lb (tractor only)
Tractor Weight (Base)
—
4,349 lbs for Cabin models; 3,831-3,836 lbs (1,738-3,836 lb) for ROPS models
Warranty Length & Coverage
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
6-year powertrain warranty
Pump Type
Dual gear pump
Hydrostatic power steering pump
Steering Flow
4.2 gpm
5.0 gpm
Implement Flow
7.7 gpm
5045CS: 11.4 gpm; 5045CH: 10.7 gpm
Total Hydraulic Flow
11.9 gpm
5045CS: 16.4 gpm; 5045CH: 15.7 gpm
Hydraulic System Type
Open center
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
11.9 gpm
5045CS: 16.4 gpm; 5045CH: 15.7 gpm
No. of Optional Remote Valves
Not Published
Not Published
No. of Standard Remote Valves
1
Not Published
System Operating Pressure
—
Not specified in document
PTO Rear
540 rpm
540 / 540E rpm
PTO Type
Independent
Independent
Lift Control Type
Position control
Position
Hitch Lift Capacity
2,689.6 lb
3,306 lb
Mid-PTO Availability
Available (Mid-PTO kit)
Not Published
Category, 3-Point Hitch
Category I
Category 1
Hitch Lift Capacity (at 24”)
1,764 lb
2,425 lb
R3 Turf - Rear
12.5x20
Not Published
R3 Turf - Front
Multi-Trac CS 27x10.5-15 NHS TL 4PR
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural
R4 Industrial - Rear
Xtra Grip 43x16.00-20 NHS TL 6PR
Not Published
R4 Industrial - Front
Trac Chief 10-16.50 NHS TL 6PR
Not Published
R1 Agricultural - Rear
Farm Specialist 12.4-24 NHS TL 6PR
13.6-26
R1 Agricultural - Front
Farm Specialist 8.0-16 NHS TL 6PR
9.5-16
Coolant Capacity
6.9 qt
1.56 gal for Cabin; 2.08 gal for ROPS
Crankcase Capacity
6.8 qt
1.20 gal
Fuel Tank Capacity
9.0 gal
11.8 gal
Front Axle Fluid Capacity
8.7 qt
1.90 gal
Transmission / Hydraulic System Capacity
8.5 gal
10.04 gal
Loader Lift Height
105.6 in
107.7 in (pivot pin)
Loader Breakout Force
3,198 lb
3,660 lb
Quick Attach Loader System
TX47: Quick attachment (Skid/Euro type)
SSQA
Loader Lift Capacity (Full Height)
2,152 lb
2,700 lb
Clutch
Dry single plate
Wet, multi-disc
No. of Speeds
F12 x R12
5045CS: 16F/16R; 5045CH: 4-range
Transmission Type
Mechanical
Synchromesh (MEC models) or HST (hydraulic shuttle transmission)
