TYM T5068 vs Bobcat UT6066 | Side-by-side comparison | ITC Resource Center
Compare Tractors

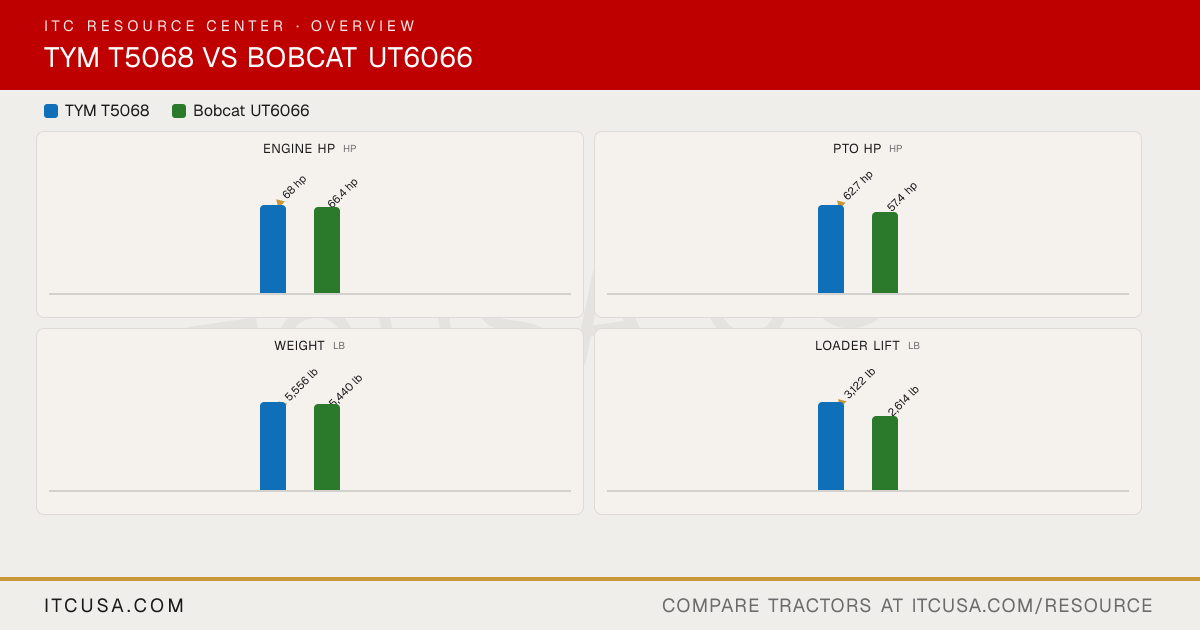

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT5068
BobcatUT6066
Engine Manufacturer
Deutz
Daedong
Engine Model
TCD 2.9
4HT-TP4A
Engine Type
4-cylinder, turbocharged diesel
Turbocharged diesel
No. of Cylinders
4
4
Displacement
177 in³
148.6 in³
Rated Engine Speed
2200 rpm
2600 rpm
Engine Power (Gross)
68 hp
66.4 hp
PTO Power
62.7 hp
57.4 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Not Published
Air Cleaner
Dual dry
Not Published
Fuel System
CRDI
Common rail
Alternator
95 A, 12 V
Not Published
Pump Type
Dual gear pump
Not Published
Implement Flow
10.3 gpm
11.0 gpm
Steering Flow
5.8 gpm
6.9 gpm
Total Hydraulic Flow
16.1 gpm
17.9 gpm
Overall Hydraulic Pump Flow
16.1 gpm
17.9 gpm
Hydraulic System Type
Not Published
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
6 (Floating/Regen); 4 (Spring/Floating)
1
No. of Optional Remote Valves
Not Published
2
Fuel Tank Capacity
18.5 gal
22.5 gal
Coolant Capacity
2.8 gal
Not Published
Crankcase Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
11.1 gal
Not Published
Front Axle Fluid Capacity
4.3 gal
Not Published
PTO Type
Independent
Independent
PTO Rear
540/750 rpm
540/540E rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category II
Category II
Hitch Lift Capacity
4,270 lb
Not Published
Hitch Lift Capacity (at 24”)
3,153 lb
3,594 lb
Lift Control Type
Position/Draft
Position with draft control
Transmission Type
Synchro or power shuttle
3-range powershuttle with electronic clutch
No. of Speeds
Not Published
12 forward, 12 reverse
Max Travel Speed (Forward)
23 mph
19.8 mph
Max Travel Speed (Reverse)
Not Published
19.5 mph
Clutch
M: Dry Single Plate; PS: Wet Multi Plate
Electronic clutch
Differential Lock & Limited Slip Options
Not Published
Not Published
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Power steering with tilt wheel
Brakes
Wet disc
Wet multi-disc
Seat Suspension & Adjustability
Suspension seat
Suspension seat, adjustable (standard)
Front Axle Type
Not Published
Four-wheel drive (standard)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Width
72.4 in
77.2 in
Wheelbase
84.7 in
82.7 in
Ground Clearance
17.1 in
12.3 in
Min. Turn Radius without Brakes
162.2 in
147.0 in
Height to Top of ROPS
Not Published
102.1 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
103 in
Not Published
Overall Length
155.6 in (with 3-point hitch)
148.8 in
Tractor Weight (Base)
5,556 lb (with cab)
5,440 lb (operating weight)
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
Industrial (standard), Agricultural, Multi-Use
R1 Agricultural - Front
9.5R20
9.5-24
R1 Agricultural - Rear
Not Published
16.9-30
R3 Turf - Front
Not Published
Not Published
R3 Turf - Rear
Not Published
Not Published
R4 Industrial - Front
Not Published
12.5/80-18
R4 Industrial - Rear
18.4-24
18.4-24
Quick Attach Loader System
Not Published
Bob-Tach
Loader Model
L5068SL
FL10
Loader Lift Height
L5068SL: 124.8 in
FL10: 129.0 in (to pivot pin)
Loader Lift Capacity (Full Height)
L5068SL: 3,122 lb (at pivot pin)
FL10: 2,614 lb (at pivot pin, max height)
Loader Breakout Force
L5068SL: 5,225 lb (at pivot pin, ground level)
FL10: 4,558 lb (at pivot point)
Warranty Length & Coverage
Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months
Basic 24 months or 1,500 hours; powertrain 36 months or 2,000 hours
