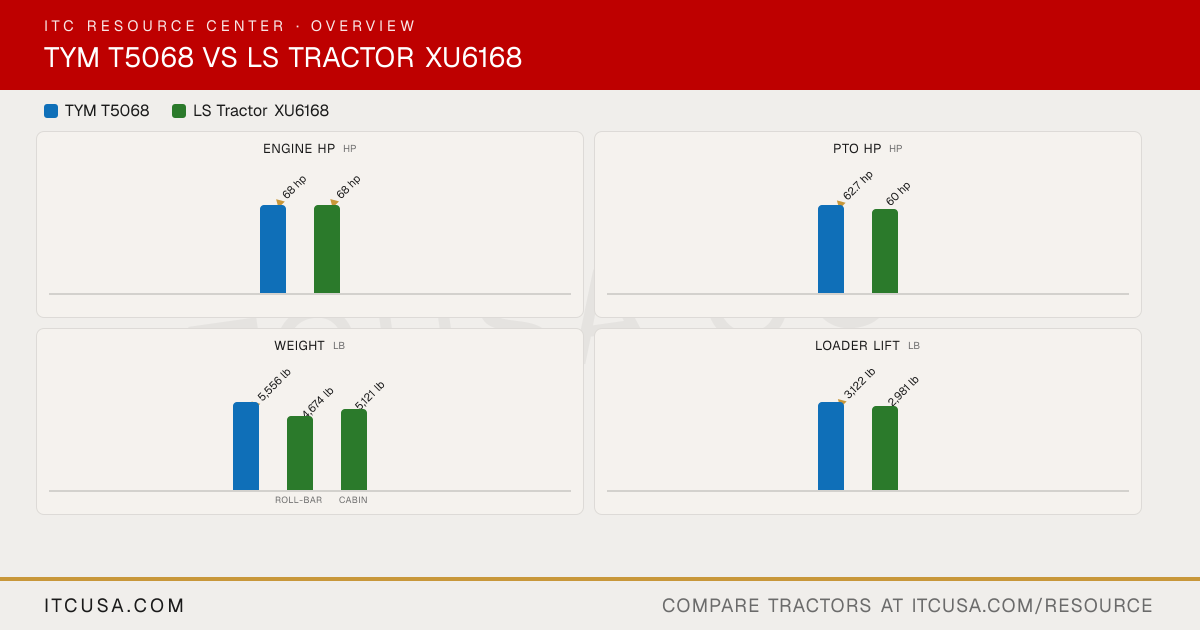

▶ EngineEngine Manufacturer Deutz LS Mtron Engine Model TCD 2.9 L4C25-T2 Engine Type 4-cylinder, turbocharged diesel In-line vertical, Water cooled 4-cycle diesel, CRDI No. of Cylinders 4 4 Displacement 177 in³ 152.86 in³ Rated Engine Speed 2200 rpm 2500 rpm Engine Power (Gross) 68 hp 68 hp PTO Power 62.7 hp 60 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dual dry Dry Fuel System CRDI CRDI Alternator 95 A, 12 V 70 A, 12 V ▶ HydraulicsPump Type Dual gear pump Gear type, engine drive Implement Flow 10.3 gpm 9.9 gpm Steering Flow 5.8 gpm 4.6 gpm Total Hydraulic Flow 16.1 gpm 14.5 gpm (9.9 + 4.6, computed) Overall Hydraulic Pump Flow 16.1 gpm Not Published Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 6 (Floating/Regen); 4 (Spring/Floating) 2 No. of Optional Remote Valves Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity 18.5 gal 21.1 gal Coolant Capacity 2.8 gal 2.4 gal Crankcase Capacity Not Published 1.8 gal Transmission / Hydraulic System Capacity 11.1 gal 12.4 gal Front Axle Fluid Capacity 4.3 gal 2.6 gal ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540/750 rpm 540 (standard); 540 / 750 / 1,000 (optional 3-speed) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity 4,270 lb 4,079 lb Hitch Lift Capacity (at 24”) 3,153 lb 3,483 lb Lift Control Type Position/Draft Position and draft control ▶ Transmission & DrivetrainTransmission Type Synchro or power shuttle Synchro-shuttle (standard); Power shuttle (optional) No. of Speeds Not Published F16 x R16 Max Travel Speed (Forward) 23 mph 17.99 mph Max Travel Speed (Reverse) Not Published 14.81 mph Clutch M: Dry Single Plate; PS: Wet Multi Plate Dry single clutch (mechanical); wet clutch disks (power shuttle) Differential Lock & Limited Slip Options Not Published Mechanical pedal type differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Hydrostatic Brakes Wet disc Wet, multi-disc Seat Suspension & Adjustability Suspension seat Not Published Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 72.4 in 70 in Wheelbase 84.7 in 80.3 in Ground Clearance 17.1 in Not Published Min. Turn Radius without Brakes 162.2 in 10.8 ft (with brake applied) Height to Top of ROPS Not Published 103 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 103 in 100.6 in Overall Length 155.6 in (with 3-point hitch) 138.6 in (bumper to link) ▶ WeightTractor Weight (Base) 5,556 lb (with cab) Roll-bar: 4,674 lb; Cabin: 5,121 lb (without ballast) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Ag 9.5-20 / 16.9-24; Industrial 10.5/80-18 / 19.5L-24; Turf 36x13.5-15 / 16.9-24 R1 Agricultural - Front 9.5R20 9.5-20 R1 Agricultural - Rear Not Published 16.9-24 R3 Turf - Front Not Published 36x13.5-15 R3 Turf - Rear Not Published 16.9-24 R4 Industrial - Front Not Published 10.5/80-18 R4 Industrial - Rear 18.4-24 19.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model L5068SL LL5106 Loader Lift Height L5068SL: 124.8 in LL5106: 116.3 in Loader Lift Capacity (Full Height) L5068SL: 3,122 lb (at pivot pin) LL5106: 2,981 lb (at pivot pin) Loader Breakout Force L5068SL: 5,225 lb (at pivot pin, ground level) LL5106: 4,767 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months General: 2 years or 750 hours (whichever occurs first). Extended powertrain: 6 years or 1,500 hours (whichever occurs first), for tractors retailed after January 1, 2017
