TYM T5068 vs TYM 7845 | Side-by-side comparison | ITC Resource Center
Compare Tractors

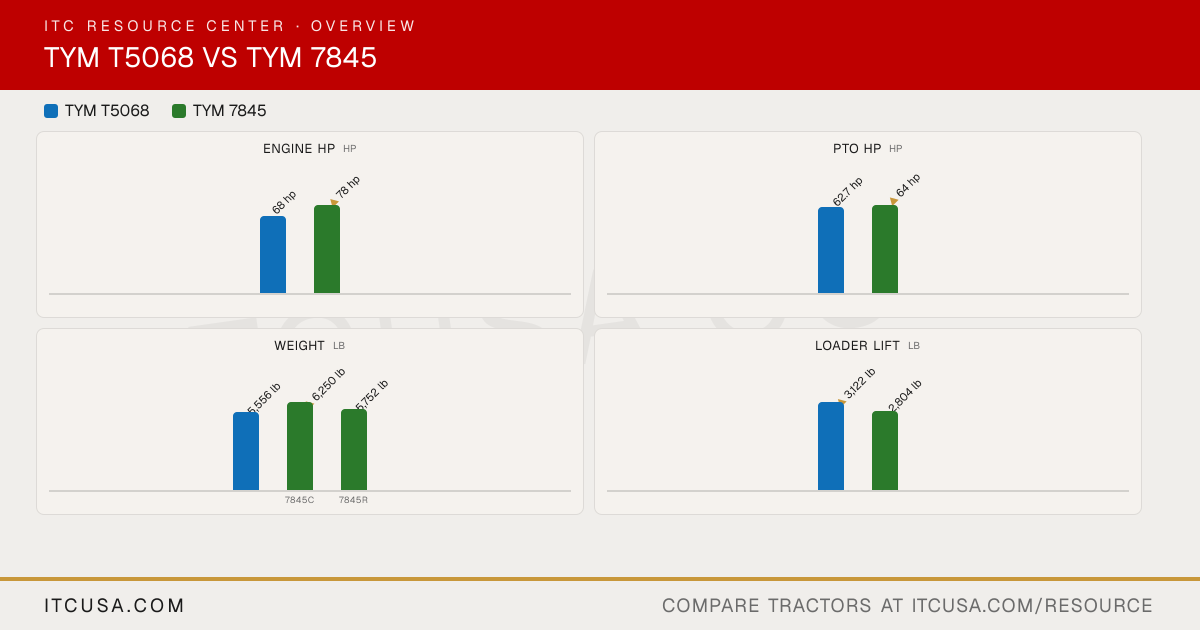

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT5068
TYM7845
Engine Manufacturer
Deutz
Kukje
Engine Model
TCD 2.9
7845C: D3400T10-UTC-3; 7845R: D3400T1-UTR-3
Engine Type
4-cylinder, turbocharged diesel
Turbocharged, direct injection, liquid-cooled diesel
No. of Cylinders
4
4
Displacement
177 in³
208 in³
Rated Engine Speed
2200 rpm
2500 rpm
Engine Power (Gross)
68 hp
78 hp
PTO Power
62.7 hp
64 hp
Engine Emissions Constraints
Tier 4
Not Published
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Dual dry
Dry, double filter element
Fuel System
CRDI
Direct injection
Alternator
95 A, 12 V
70 A, 12 V
Pump Type
Dual gear pump
Dual pumps (separate steering and main pumps)
Implement Flow
10.3 gpm
Not Published
Steering Flow
5.8 gpm
Not Published
Total Hydraulic Flow
16.1 gpm
19.3 gpm
Overall Hydraulic Pump Flow
16.1 gpm
Not Published
Hydraulic System Type
Not Published
Electric over hydraulic control (position, draft & mixed)
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
6 (Floating/Regen); 4 (Spring/Floating)
Not Published
No. of Optional Remote Valves
Not Published
Not Published
Fuel Tank Capacity
18.5 gal
23.8 gal
Coolant Capacity
2.8 gal
Not Published
Crankcase Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
11.1 gal
Not Published
Front Axle Fluid Capacity
4.3 gal
Not Published
PTO Type
Independent
Independent (6-spline shaft)
PTO Rear
540/750 rpm
Not Published
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category II
Category II
Hitch Lift Capacity
4,270 lb
3,820 lb
Hitch Lift Capacity (at 24”)
3,153 lb
2,526 lb
Lift Control Type
Position/Draft
Position, draft & mixed
Transmission Type
Synchro or power shuttle
Power shuttle (hydraulic shuttle); main shifting fully synchronized (4-speed)
No. of Speeds
Not Published
16F/16R
Max Travel Speed (Forward)
23 mph
24.8 mph
Max Travel Speed (Reverse)
Not Published
25.6 mph
Clutch
M: Dry Single Plate; PS: Wet Multi Plate
Multi, wet
Differential Lock & Limited Slip Options
Not Published
Not Published
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic
Brakes
Wet disc
Wet disc
Seat Suspension & Adjustability
Suspension seat
Deluxe seat with lumbar adjustment
Front Axle Type
Not Published
4WD, heavy-duty front axle, 56-degree steering angle each direction, no drag link
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Width
72.4 in
74.5 in
Wheelbase
84.7 in
86.6 in
Ground Clearance
17.1 in
18.3 in
Min. Turn Radius without Brakes
162.2 in
Not Published
Height to Top of ROPS
Not Published
102.6 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
103 in
107.8 in
Overall Length
155.6 in (with 3-point hitch)
152.7 in
Tractor Weight (Base)
5,556 lb (with cab)
7845C: 6,250 lb; 7845R: 5,752 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
Agricultural: 11.2x24 front / 16.9x30 rear
R1 Agricultural - Front
9.5R20
11.2x24
R1 Agricultural - Rear
Not Published
16.9x30
R3 Turf - Front
Not Published
Not Published
R3 Turf - Rear
Not Published
Not Published
R4 Industrial - Front
Not Published
Not Published
R4 Industrial - Rear
18.4-24
Not Published
Quick Attach Loader System
Not Published
BL45: Quick attachment bucket mount
Loader Model
L5068SL
BL45
Loader Lift Height
L5068SL: 124.8 in
BL45: 111.7 in
Loader Lift Capacity (Full Height)
L5068SL: 3,122 lb (at pivot pin)
BL45: 2,804 lb (at pivot pins, full height)
Loader Breakout Force
L5068SL: 5,225 lb (at pivot pin, ground level)
BL45: 5,467 lbf (at pivot pin, ground level)
Warranty Length & Coverage
Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months
