TYM T5068 vs TYM T4058PC | Side-by-side comparison | ITC Resource Center
Compare Tractors

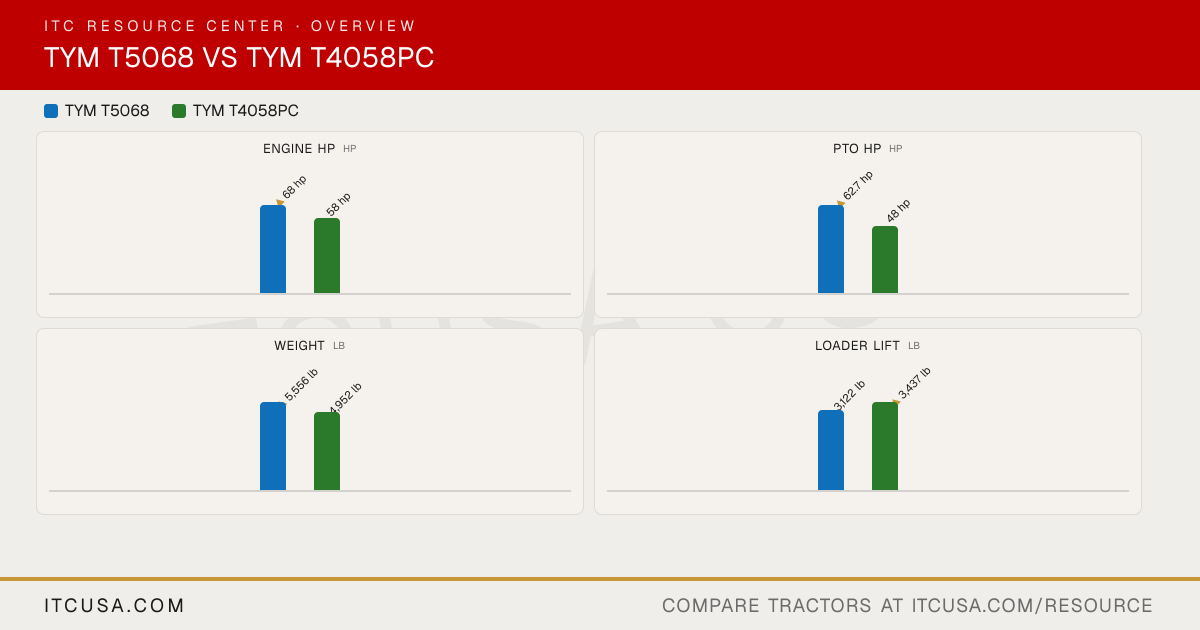

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT5068
TYMT4058PC
Engine Manufacturer
Deutz
TYM
Engine Model
TCD 2.9
T2300T1-UTC_4
Engine Type
4-cylinder, turbocharged diesel
4-cylinder, turbocharged diesel
No. of Cylinders
4
4
Displacement
177 in³
139.5 in³
Rated Engine Speed
2200 rpm
2600 rpm
Engine Power (Gross)
68 hp
58 hp
PTO Power
62.7 hp
48 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Not Published
Air Cleaner
Dual dry
Dry element
Fuel System
CRDI
IDI
Alternator
95 A, 12 V
70 A, 12 V
Pump Type
Dual gear pump
Single gear pump
Implement Flow
10.3 gpm
11.4 gpm
Steering Flow
5.8 gpm
5.13 gpm
Total Hydraulic Flow
16.1 gpm
16.5 gpm
Overall Hydraulic Pump Flow
16.1 gpm
16.5 gpm
Hydraulic System Type
Not Published
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
6 (Floating/Regen); 4 (Spring/Floating)
Loader: 6; Rear: 6
No. of Optional Remote Valves
Not Published
Not Published
Fuel Tank Capacity
18.5 gal
15.3 gal
Coolant Capacity
2.8 gal
6.2 qt
Crankcase Capacity
Not Published
4.8 qt
Transmission / Hydraulic System Capacity
11.1 gal
11.62 gal
Front Axle Fluid Capacity
4.3 gal
6.8 qt
PTO Type
Independent
Independent
PTO Rear
540/750 rpm
540 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category II
Category II
Hitch Lift Capacity
4,270 lb
4,409 lb
Hitch Lift Capacity (at 24”)
3,153 lb
3,748 lb
Lift Control Type
Position/Draft
Position and draft control (electronic)
Transmission Type
Synchro or power shuttle
Power shuttle
No. of Speeds
Not Published
F12 x R12
Max Travel Speed (Forward)
23 mph
24.04 mph
Max Travel Speed (Reverse)
Not Published
Not Published
Clutch
M: Dry Single Plate; PS: Wet Multi Plate
Wet, multi-disc
Differential Lock & Limited Slip Options
Not Published
Standard differential lock
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic
Brakes
Wet disc
Wet, multi-disc
Seat Suspension & Adjustability
Suspension seat
Suspension seat
Front Axle Type
Not Published
4WD (selectable 2WD/4WD)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Width
72.4 in
68.9 in
Wheelbase
84.7 in
78.7 in
Ground Clearance
17.1 in
18.1 in
Min. Turn Radius without Brakes
162.2 in
L: 139.7 in; R: 141.9 in
Height to Top of ROPS
Not Published
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
103 in
99.2 in
Overall Length
155.6 in (with 3-point hitch)
141.5 in (with 3-point hitch)
Tractor Weight (Base)
5,556 lb (with cab)
4,952 lb (weight with cab)
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
6,252 lb (4,952 + 1,300, computed; L4058PC loader total weight)
Tire Size & Options
Not Published
R1 Agricultural, R4 Industrial, Golf tires
R1 Agricultural - Front
9.5R20
9.5-20
R1 Agricultural - Rear
Not Published
14.9-28
R3 Turf - Front
Not Published
29x12.5-15 (golf tire)
R3 Turf - Rear
Not Published
44x18.00-20 (golf tire)
R4 Industrial - Front
Not Published
10.5/80-18
R4 Industrial - Rear
18.4-24
16.9-24
Quick Attach Loader System
Not Published
L4058PC: Quick attach mechanism
Loader Model
L5068SL
L4058PC
Loader Lift Height
L5068SL: 124.8 in
L4058PC: 117.5 in
Loader Lift Capacity (Full Height)
L5068SL: 3,122 lb (at pivot pin)
L4058PC: 3,437 lb (at pivot pin)
Loader Breakout Force
L5068SL: 5,225 lb (at pivot pin, ground level)
L4058PC: 4,742 lb (at pivot pin, ground level)
Warranty Length & Coverage
Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months
Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months
