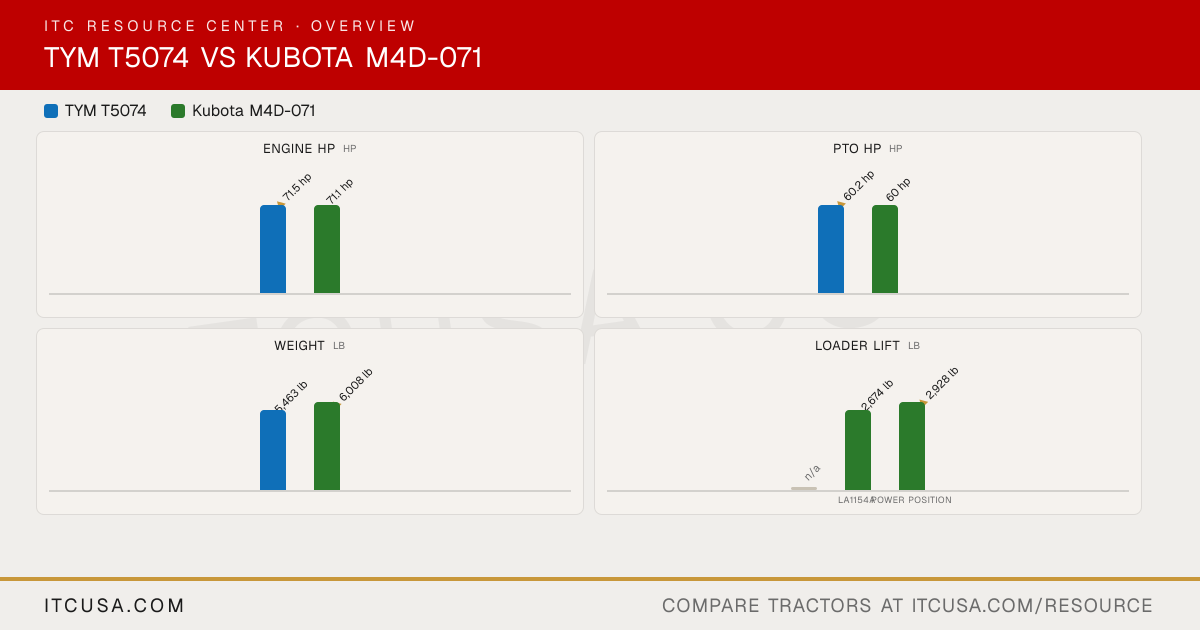

▶ EngineEngine Manufacturer Yanmar Kubota Engine Model 4TN98CT-7PKTF V3307-CR-TE4 Engine Type 4-cylinder, water-cooled, turbocharged diesel Liquid-cooled, diesel, 4-cylinder No. of Cylinders 4 4 Displacement 202.5 in³ 203 in³ Rated Engine Speed 2400 rpm 2400 rpm Engine Power (Gross) 71.5 hp 71.1 hp PTO Power 60.2 hp 60 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Water-cooled Liquid-cooled Air Cleaner PowerCore Type Dual element (primary and secondary elements) Fuel System CRDI Common Rail System (CRS) Alternator 70 A, 12 V 130 A ▶ HydraulicsPump Type Dual gear pump Not Published Implement Flow 10.3 gpm 16.7 gpm Steering Flow 5.8 gpm 6.3 gpm Total Hydraulic Flow 16.1 gpm 23.0 gpm (16.7 gpm implement + 6.3 gpm steering, computed) Overall Hydraulic Pump Flow 16.1 gpm 23.0 gpm (16.7 + 6.3, computed) Hydraulic System Type Not Published Open Center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 2 (SCD / FD) No. of Optional Remote Valves Not Published Max. 3 ▶ Fluid CapacityFuel Tank Capacity 19 gal 23.8 gal Coolant Capacity 3 gal 10.6 qt Crankcase Capacity Not Published 12.7 qt Transmission / Hydraulic System Capacity 13.7 gal 49.6 qt Front Axle Fluid Capacity 2.4 gal 5.8 qt (front differential case) plus 3.7 qt (front axle gear case) ▶ PTO & HitchPTO Type Independent Live-independent PTO, electro-hydraulic clutch with brake PTO Rear 540/750 rpm 540/540E rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II I / II Hitch Lift Capacity 4,329 lb 4,189 lb Hitch Lift Capacity (at 24”) 3,159 lb 3,307 lb Lift Control Type Position/Draft Position, draft (top link sensing) & mixed control ▶ Transmission & DrivetrainTransmission Type Power shuttle Fully synchronized 6-speed main gear shift with electro-hydraulic shuttle, 12F/12R (option: 18F/18R with creep) No. of Speeds F12 x R12 F12/R12 (option: F18/R18 with creep) Max Travel Speed (Forward) 13.5 mph 24.9 mph Max Travel Speed (Reverse) Not Published 24.7 mph Clutch Wet Multi Plate Multiple wet disc Differential Lock & Limited Slip Options Not Published Front: limited-slip differential; Rear: mechanical differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Ultra Grand Cab II Steering Hydrostatic Hydrostatic power steering Brakes Wet disc Hydraulic wet disc Seat Suspension & Adjustability Adjustable sliding seat with backrest angle and cushion firmness adjustment Mechanical-suspension seat with adjustable armrest, seat height, weight (suspension) and backrest tilt; optional air-suspension seat Front Axle Type Not Published Bevel gear type (4WD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 2,200 lb ▶ Dimensions & ManeuverabilityOverall Width 81.4 in 75.6 in Wheelbase 84.6 in 84.1 in Ground Clearance 17.6 in 18.1 in (front axle crop clearance) Min. Turn Radius without Brakes 164.2 in; 169.3 in 11.8 ft Height to Top of ROPS 106.8 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 101 in Overall Length 148.1 in (with 3-point hitch) 144 in ▶ WeightTractor Weight (Base) 5,463 lb (with ROPS) 6,008 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Standard: 320/70R24 front, 420/75R34 rear R1 Agricultural - Front 11.2-24 320/70R24 R1 Agricultural - Rear 16.9-30 420/75R34 R3 Turf - Front Not Published 9.50-24 R3 Turf - Rear Not Published 18.4-26 R4 Industrial - Front 15-19.5 14-17.5 R4 Industrial - Rear 18.4-24 16.9-24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published LA1154A: 2-Lever Quick Coupler Loader Model L5074SL LA1154A Loader Lift Height Not Published LA1154A: Height position: 133.0 in; Power position: 117.6 in Loader Lift Capacity (Full Height) Not Published LA1154A: Height position: 2,674 lb; Power position: 2,928 lb Loader Breakout Force Not Published LA1154A: Height position: 4,079 lbf; Power position: 5,128 lbf ▶ WarrantyWarranty Length & Coverage Basic 24 months or 2,000 hours, parts and labor; loaders, backhoes and mid-mount mowers 12 months Basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours
