TYM T5074 vs TYM 3515C | Side-by-side comparison | ITC Resource Center
Compare Tractors

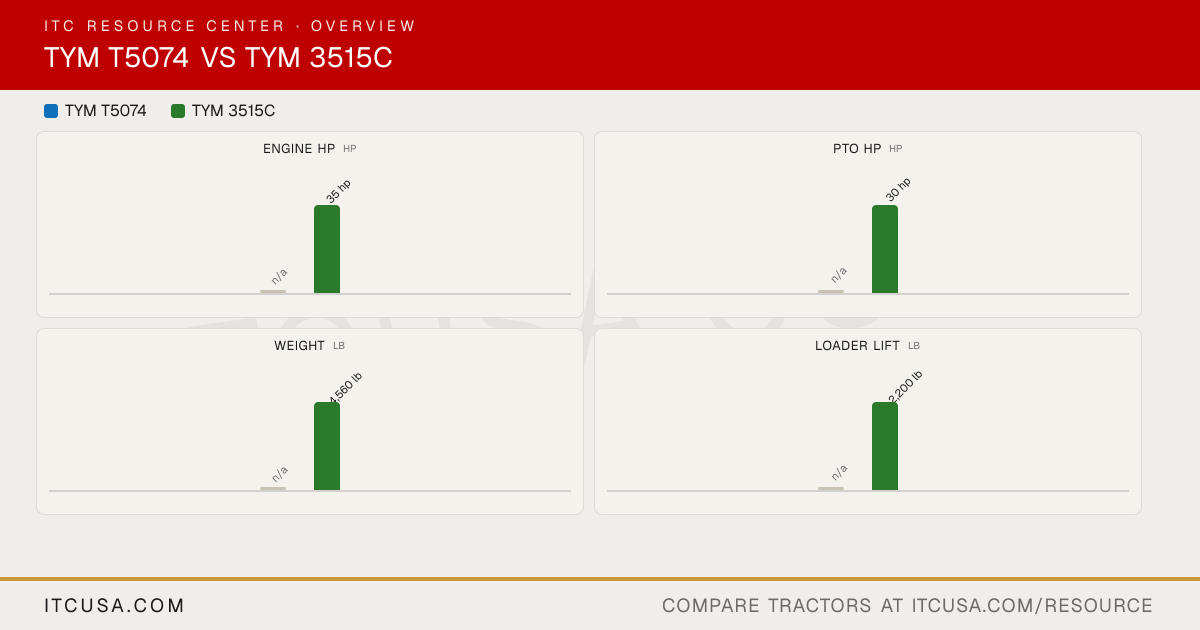

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT5074
TYM3515C
Engine Manufacturer
n/a
TYM
Engine Type
n/a
3-cylinder, naturally aspirated diesel
No. of Cylinders
n/a
3
Displacement
n/a
104.6 in³
Rated Engine Speed
n/a
2600 rpm
Engine Power (Gross)
n/a
35 hp
PTO Power
n/a
30 hp
Engine Emissions Constraints
n/a
Tier 4
Cooling System Type
n/a
Not Published
Air Cleaner
n/a
Dry element
Fuel System
n/a
IDI
Alternator
n/a
70 A, 12 V
Pump Type
n/a
Dual gear pump
Implement Flow
n/a
7.7 gpm
Steering Flow
n/a
4.2 gpm
Total Hydraulic Flow
n/a
11.9 gpm
Overall Hydraulic Pump Flow
n/a
11.9 gpm
Hydraulic System Type
n/a
Open center
Rear Remote Hydraulic Flow
n/a
Not Published
No. of Standard Remote Valves
n/a
0
No. of Optional Remote Valves
n/a
Not Published
Fuel Tank Capacity
n/a
7.1 gal
Coolant Capacity
n/a
5.3 qt
Crankcase Capacity
n/a
4.5 qt
Transmission / Hydraulic System Capacity
n/a
9.8 gal
Front Axle Fluid Capacity
n/a
6.8 qt
PTO Type
n/a
Independent
PTO Rear
n/a
540 rpm
Mid-PTO Availability
n/a
Not Published
Category, 3-Point Hitch
n/a
Category I
Hitch Lift Capacity
n/a
3,306 lb
Hitch Lift Capacity (at 24”)
n/a
2,425 lb
Lift Control Type
n/a
Position control
Transmission Type
n/a
HST
No. of Speeds
n/a
3-Range
Max Travel Speed (Forward)
n/a
18 mph
Max Travel Speed (Reverse)
n/a
Not Published
Clutch
n/a
Not Applicable
Differential Lock & Limited Slip Options
n/a
Not Published
Frame Type
n/a
Not Published
Steering
n/a
Hydrostatic
Brakes
n/a
Wet, multi disc
Seat Suspension & Adjustability
n/a
Comfortable suspension seat
Front Axle Type
n/a
Not Published
Front Axle Rating
n/a
Not Published
Drawbar Capacity
n/a
Not Published
Overall Length with 3-Point Hitch
n/a
120.9 in
Overall Width
n/a
55.6 in
Wheelbase
n/a
65.7 in
Ground Clearance
n/a
14.4 in
Min. Turn Radius without Brakes
n/a
L: 124.8 in; R: 121.3 in
Height to Top of ROPS
n/a
Not Applicable
Height to Top of ROPS (folded)
n/a
Not Applicable
Height to Top of Cab Model
n/a
97.3 in
Weight with ROPS and Loader
n/a
Not Applicable
Weight with Cab and Loader
n/a
4,560 lb
Tire Size & Options
n/a
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front
n/a
7.0-16
R1 Agricultural - Rear
n/a
11.2-24
R3 Turf - Front
n/a
27x8.5-15, 6PR
R3 Turf - Rear
n/a
41x14.00, 4PR
R4 Industrial - Front
n/a
25x8.5-14, 6PR; 28x8.5-14
R4 Industrial - Rear
n/a
380/70-19.5, 6PR; 15-19.5
Quick Attach Loader System
n/a
BL150C: Quick attachment assembly
Loader Lift Height
n/a
104.9 in
Loader Lift Capacity (Full Height)
n/a
2,200 lb
Loader Breakout Force
n/a
3,422 lb
Warranty Length & Coverage
n/a
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
