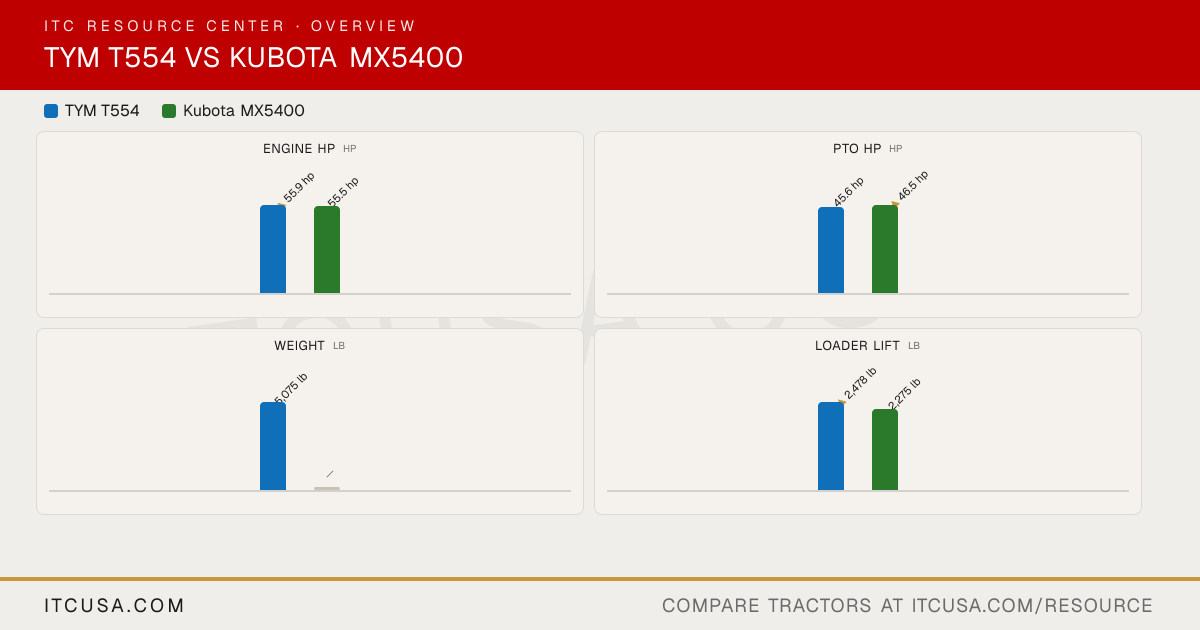

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT554
KubotaMX5400
PTO Power
45.6 hp
46.5 hp
Alternator
70 A, 12 V
45 A, 12 V
Air Cleaner
Dual dry
Dry-dual element
Engine Type
4-cylinder, turbocharged diesel
Liquid-cooled, diesel, 4-cylinder, Turbocharged
Fuel System
CRDI
Not Published
Displacement
127.6 in³
148.6 (2434)
No. of Cylinders
4
4
Rated Engine Speed
2800 rpm
2700 rpm
Cooling System Type
Not Published
Liquid-cooled
Engine Manufacturer
Yanmar
Kubota
Engine Power (Gross)
55.9 hp
55.5 hp
Engine Emissions Constraints
Not Published
Not Published
Weight with ROPS and Loader
5,075 lb
Not Published
Weight with Cab and Loader
Not Applicable
Not Published
Warranty Length & Coverage
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
Dual gear pump
Gear
Steering Flow
4.6 gpm
4.9 gpm
Implement Flow
9.5 gpm
9.5 gpm
Total Hydraulic Flow
14.1 gpm
14.4 gpm
Hydraulic System Type
Not Published
Open Center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
14.1 gpm
14.4 gpm
No. of Optional Remote Valves
Not Published
Maximum 3 (opt)
No. of Standard Remote Valves
2
Not Published
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Live independent, hydraulic PTO with PTO brake, wet clutch
Lift Control Type
Position/Draft
Position (std), Draft (opt)
Hitch Lift Capacity
3,314 lb
Not Published
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category I
I & II
Hitch Lift Capacity (at 24”)
2,945 lb
2310 lbs
R3 Turf - Rear
Multi-Trac CS 44x18.00-20 NHS TL 4PR
Not Published
R3 Turf - Front
Multi-Trac CS 27x10.50-15 NHS TL 4PR
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
Standard tire size
R4 Industrial - Rear
Xtra Grip 4.6 gal-24 NHS TL 6PR
Not Published
R4 Industrial - Front
Trac Chief 12-16.5 NHS TL 6PR
Not Published
R1 Agricultural - Rear
Farm Specialist 13.6-26 NHS TL 6PR
14.9-26
R1 Agricultural - Front
Farm Specialist 9.5-16 NHS TL 6PR
DT (2WD): 2 gal-15; DT (4WD), HST (4WD): 9.5-16
Coolant Capacity
9 qt
Not Published
Crankcase Capacity
7.1 qt
Not Published
Fuel Tank Capacity
17.0 gal
ROPS: 13.5 gal; CAB: 11.9 gal
Front Axle Fluid Capacity
10.5 qt
Not Published
Transmission / Hydraulic System Capacity
9.2 gal
Not Published
Loader Lift Height
109.1 in
111.2 in
Loader Breakout Force
4,938 lb
3102 lb (13798 N)
Quick Attach Loader System
TX55: Quick attach mechanism
1065A: 2-Lever Quick Coupler for Loader Attachment
Loader Lift Capacity (Full Height)
2,478 lb
2275 lb
Clutch
Dry single plate
DT (2WD/4WD): Dry single plate; HST (4WD): No clutch
