TYM T554C vs Kubota MX5400 | Side-by-side comparison | ITC Resource Center
Compare Tractors

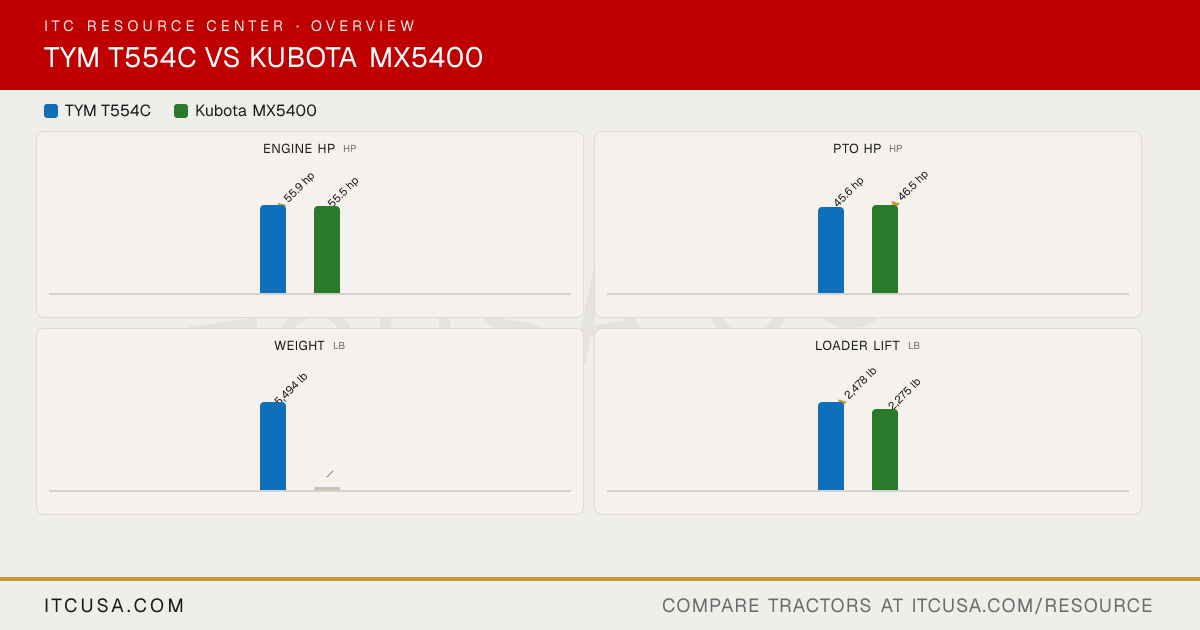

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT554C
KubotaMX5400
Engine Manufacturer
Yanmar
Kubota
Engine Model
4TNV86CT
V2403CR-T
Engine Type
4-cylinder, turbocharged, liquid-cooled diesel
Liquid-cooled, diesel, 4-cylinder, Turbocharged
No. of Cylinders
4
4
Displacement
127.6 in³
148.6 in³
Rated Engine Speed
2800 rpm
2700 rpm
Engine Power (Gross)
55.9 hp
57 hp
PTO Power
45.6 hp
46.5 hp
Engine Emissions Constraints
Tier 4
Not Published
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Dual dry
Dry-dual element
Fuel System
CRDI
Common Rail System (CRS), direct injection
Alternator
70 A, 12 V
45 A, 12 V
Pump Type
Dual gear pump
Gear
Implement Flow
9.5 gpm
9.5 gpm
Steering Flow
4.6 gpm
4.9 gpm
Total Hydraulic Flow
14.1 gpm
14.4 gpm (9.5 + 4.9, computed)
Overall Hydraulic Pump Flow
14.1 gpm
14.4 gpm (9.5 + 4.9, computed)
Hydraulic System Type
Open center
Open Center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
2
Not Published
No. of Optional Remote Valves
Not Published
Maximum 3 (opt)
Fuel Tank Capacity
15.9 gal
13.5 gal
Coolant Capacity
9 qt
6.9 qt
Crankcase Capacity
7.1 qt
7.4 qt
Transmission / Hydraulic System Capacity
9.2 gal
11.6 gal
Front Axle Fluid Capacity
10.5 qt
8.9 qt
PTO Type
Independent
Live independent, hydraulic PTO with PTO brake, wet clutch
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Optional (Mid-PTO kit)
Not Published
Category, 3-Point Hitch
Category I
I & II
Hitch Lift Capacity
3,314 lb
2870 lb
Hitch Lift Capacity (at 24”)
2,945 lb
2310 lb
Lift Control Type
Position/Draft
Position (std), Draft (opt)
Transmission Type
Synchro-Shuttle
3-range hydrostatic (HST)
No. of Speeds
F16 x R16
3-range
Max Travel Speed (Forward)
18.4 mph
17.7 mph
Max Travel Speed (Reverse)
16.07 mph
16.0 mph
Clutch
Dry single plate
No clutch
Differential Lock & Limited Slip Options
Rear differential lock, pedal operated
Rear differential lock standard (mechanical)
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic power steering
Brakes
Wet disc
Mechanical wet disc
Seat Suspension & Adjustability
Not Published
High-back suspension seat (optional arm rests)
Front Axle Type
4WD, center-pivot reverse Elliot type
Bevel gear type (4WD)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
1650 lb
Overall Length with 3-Point Hitch
141.3 in
125.9 in (without 3-point hitch)
Overall Width
63.8 in
69.7 in
Wheelbase
76.2 in
74.6 in
Ground Clearance
13.8 in
15.2 in
Min. Turn Radius without Brakes
150.4 in
8.9 ft (with brake applied)
Height to Top of ROPS
Not Published
95.7 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
99.6 in
92.7 in
Tractor Weight (Base)
4,233 lb
3,734 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
5,494 lb
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
9.5-16 / 14.9-26
R1 Agricultural - Front
Farm Specialist 9.5-16 NHS TL 6PR
9.5-16
R1 Agricultural - Rear
Farm Specialist 13.6-26 NHS TL 6PR
14.9-26
R3 Turf - Front
Multi-Trac CS 27x10.50-15 NHS TL 4PR
Not Published
R3 Turf - Rear
Multi-Trac CS 44x18.00-20 NHS TL 4PR
Not Published
R4 Industrial - Front
Trac Chief 12-16.5 NHS TL 6PR
Not Published
R4 Industrial - Rear
Xtra Grip 17.5L-24 NHS TL 6PR
Not Published
Quick Attach Loader System
TX55: Quick attach mechanism
1065A: 2-Lever Quick Coupler for Loader Attachment
Loader Model
TX55
LA1065
Loader Lift Height
TX55: 109.1 in
111.2 in
Loader Lift Capacity (Full Height)
TX55: 2,478 lb
2275 lb
Loader Breakout Force
TX55: 4,938 lb
3102 lbf (19.7 in forward of pivot pin)
Warranty Length & Coverage
Bumper-to-bumper: 24 months or 2,000 hours (parts and labor); powertrain: 72 months or 3,000 hours for non-commercial use (20 to 70 engine hp); front-end loaders and backhoes: 12 months
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 72 months or 3000 hours. Commercial Use - Basic Standard Limited: 24 months or 2000 hours; Limited Powertrain: 36 months or 3000 hours.
