TYM T554C vs TYM T4058PC | Side-by-side comparison | ITC Resource Center
Compare Tractors

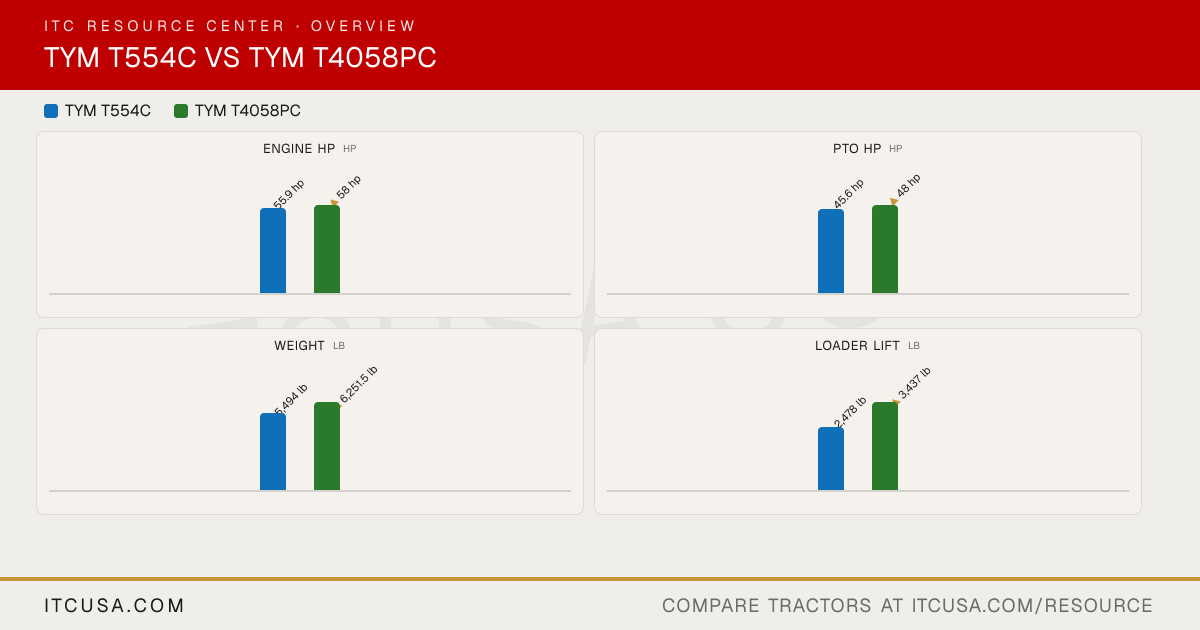

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT554C
TYMT4058PC
Engine Manufacturer
Yanmar
TYM
Engine Model
4TNV86CT
T2300T1-UTC_4
Engine Type
4-cylinder, turbocharged, liquid-cooled diesel
4-cylinder, turbocharged diesel
No. of Cylinders
4
4
Displacement
127.6 in³
139.5 in³
Rated Engine Speed
2800 rpm
2600 rpm
Engine Power (Gross)
55.9 hp
58 hp
PTO Power
45.6 hp
48 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Not Published
Air Cleaner
Dual dry
Dry element
Fuel System
CRDI
IDI (indirect injection)
Alternator
70 A, 12 V
70 A, 12 V
Pump Type
Dual gear pump
Single gear pump
Implement Flow
9.5 gpm
11.4 gpm
Steering Flow
4.6 gpm
5.13 gpm
Total Hydraulic Flow
14.1 gpm
16.5 gpm
Overall Hydraulic Pump Flow
14.1 gpm
16.5 gpm
Hydraulic System Type
Open center
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
2
Loader: 6; Rear: 6
No. of Optional Remote Valves
Not Published
Not Published
Fuel Tank Capacity
15.9 gal
15.3 gal
Coolant Capacity
9 qt
6.2 qt
Crankcase Capacity
7.1 qt
4.8 qt
Transmission / Hydraulic System Capacity
9.2 gal
11.62 gal
Front Axle Fluid Capacity
10.5 qt
6.8 qt
PTO Type
Independent
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Optional (Mid-PTO kit)
Not Published
Category, 3-Point Hitch
Category I
Category II
Hitch Lift Capacity
3,314 lb
4,409 lb
Hitch Lift Capacity (at 24”)
2,945 lb
3,748 lb
Lift Control Type
Position/Draft
Position and draft control (electronic)
Transmission Type
Synchro-Shuttle
Power shuttle
No. of Speeds
F16 x R16
F12 x R12
Max Travel Speed (Forward)
18.4 mph
24.04 mph
Max Travel Speed (Reverse)
16.07 mph
19.39 mph
Clutch
Dry single plate
Wet, multi-disc
Differential Lock & Limited Slip Options
Rear differential lock, pedal operated
Standard differential lock
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic
Brakes
Wet disc
Wet, multi-disc
Seat Suspension & Adjustability
Not Published
Suspension seat
Front Axle Type
4WD, center-pivot reverse Elliot type
4WD (selectable 2WD/4WD)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
141.3 in
141.5 in
Overall Width
63.8 in
68.9 in
Wheelbase
76.2 in
78.7 in
Ground Clearance
13.8 in
18.1 in
Min. Turn Radius without Brakes
150.4 in
L: 139.7 in; R: 141.9 in
Height to Top of ROPS
Not Published
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
99.6 in
99.2 in
Tractor Weight (Base)
4,233 lb
4,951.5 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
5,494 lb
6,251.5 lb
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural, R3 Turf (golf), R4 Industrial
R1 Agricultural - Front
Farm Specialist 9.5-16 NHS TL 6PR
9.5-20
R1 Agricultural - Rear
Farm Specialist 13.6-26 NHS TL 6PR
14.9-28
R3 Turf - Front
Multi-Trac CS 27x10.50-15 NHS TL 4PR
29x12.5-15
R3 Turf - Rear
Multi-Trac CS 44x18.00-20 NHS TL 4PR
44x18.00-20
R4 Industrial - Front
Trac Chief 12-16.5 NHS TL 6PR
10.5/80-18
R4 Industrial - Rear
Xtra Grip 17.5L-24 NHS TL 6PR
16.9-24
Quick Attach Loader System
TX55: Quick attach mechanism
L4058PC: Quick attach mechanism
Loader Model
TX55
L4058PC
Loader Lift Height
TX55: 109.1 in
L4058PC: 117.5 in
Loader Lift Capacity (Full Height)
TX55: 2,478 lb
L4058PC: 3,437 lb
Loader Breakout Force
TX55: 4,938 lb
L4058PC: 4,742 lb
Warranty Length & Coverage
Bumper-to-bumper: 24 months or 2,000 hours (parts and labor); powertrain: 72 months or 3,000 hours for non-commercial use (20 to 70 engine hp); front-end loaders and backhoes: 12 months
Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3,000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes
