TYM T574 vs Kioti NX5510H | Side-by-side comparison | ITC Resource Center
Compare Tractors

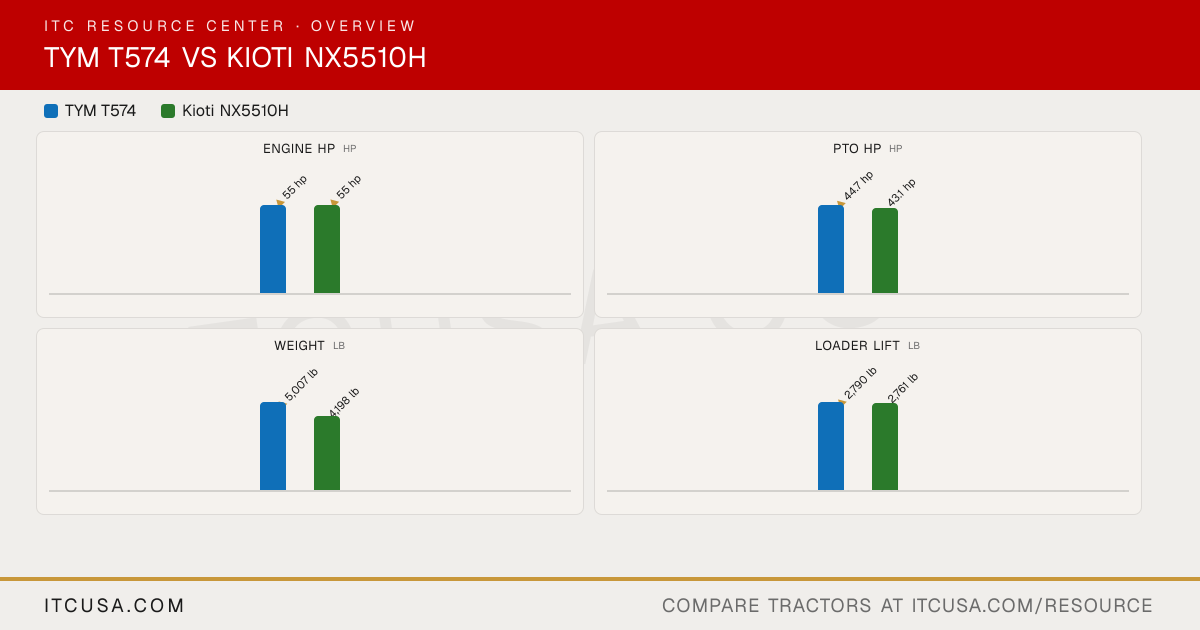

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT574
KiotiNX5510H
Engine Manufacturer
TYM
KIOTI
Engine Model
T2300T2
3F183T
Engine Type
4-cylinder, turbocharged, liquid-cooled diesel
3-cylinder, in-line vertical, water-cooled, 4-cycle, turbocharged, common rail diesel
No. of Cylinders
4
3
Displacement
139.5 in³
111.4 in³
Rated Engine Speed
2600 rpm
2600 rpm
Engine Power (Gross)
55 hp
55 hp
PTO Power
44.1 hp
43.1 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Water-cooled
Air Cleaner
Single dry
Dry type element
Fuel System
IDI
Common Rail Diesel (CRDI)
Alternator
70 A, 12 V
Not Published
Pump Type
Dual gear pump
Gear
Implement Flow
7.7 gpm
Not Published
Steering Flow
4.3 gpm
Not Published
Total Hydraulic Flow
11.9 gpm
17.9 gpm
Overall Hydraulic Pump Flow
11.9 gpm
17.9 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
2
1
No. of Optional Remote Valves
Not Published
1
Fuel Tank Capacity
15.9 gal
14.8 gal
Coolant Capacity
6.9 qt
2.0 gal
Crankcase Capacity
6.8 qt
1.58 gal
Transmission / Hydraulic System Capacity
9.2 gal
11.89 gal
Front Axle Fluid Capacity
10.5 qt
1.8 gal
PTO Type
Independent
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Optional (Mid-PTO kit)
Optional (2,000 rpm)
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
3,822 lb
3,538 lb
Hitch Lift Capacity (at 24”)
3,051 lb
3,177 lb
Lift Control Type
Position/Draft
Position with Draft Control
Transmission Type
Synchro-shuttle
Hydrostatic
No. of Speeds
F8 x R8
3 Range
Max Travel Speed (Forward)
18.6 mph
18.26 mph
Max Travel Speed (Reverse)
Not Published
18.26 mph
Clutch
Dry single plate
Not Published
Differential Lock & Limited Slip Options
Rear differential lock, pedal operated
Differential Lock: Rear (Standard)
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic Power Steering
Brakes
Wet disc
Wet Multi Disc
Seat Suspension & Adjustability
Not Published
Adjustable Seat
Front Axle Type
4WD, heavy-duty front axle
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
1,655 lb (max. drawbar vertical load)
Overall Width
63.8 in
65.7 in
Wheelbase
76.2 in
75.6 in
Ground Clearance
13.8 in
15.7 in
Min. Turn Radius without Brakes
131.5 in
10.0 ft
Height to Top of ROPS
102.1 in
103.1 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Overall Length
141.3 in (with 3-point hitch)
139.6 in (with 3-point hitch)
Tractor Weight (Base)
3,887 lb (with ROPS)
4,198 lb (with AG tires)
Weight with ROPS and Loader
5,007 lb (3,887 + 1,120, computed)
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
Agricultural, Turf, Industrial
R1 Agricultural - Front
Farm Specialist 9.5-16 NHS TL 6PR
9.5-16
R1 Agricultural - Rear
Farm Specialist 13.6-26 NHS TL 6PR
16.9-24
R3 Turf - Front
Multi-Trac CS 27x10.50-15 NHS TL 4PR
29-12.5-15
R3 Turf - Rear
Multi-Trac CS 44x18.00-20 NHS TL 4PR
21.5L-16.1
R4 Industrial - Front
Trac Chief 12-16.5 NHS TL 6PR
10-16.5
R4 Industrial - Rear
Xtra Grip 17.5Lx24 NHS TL 6PR
17.5-24
Quick Attach Loader System
TX57: Quick attach mechanism
Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
Loader Model
TX57
KL6010
Loader Lift Height
TX57: 109.4 in
KL6010: 108.3 in (to pivot pin)
Loader Lift Capacity (Full Height)
TX57: 2,790 lb (at pivot pin)
KL6010: 2,761 lb (at pivot pin, max height)
Loader Breakout Force
TX57: 5,316 lb (at pivot pin, ground level)
KL6010: 3,727 lb (at pivot pin)
Warranty Length & Coverage
Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders and backhoes 12 months
Non-commercial: basic 2 years, powertrain 72 months, unlimited hours, parts and labor
