TYM T574 vs TYM T494 | Side-by-side comparison | ITC Resource Center
Compare Tractors

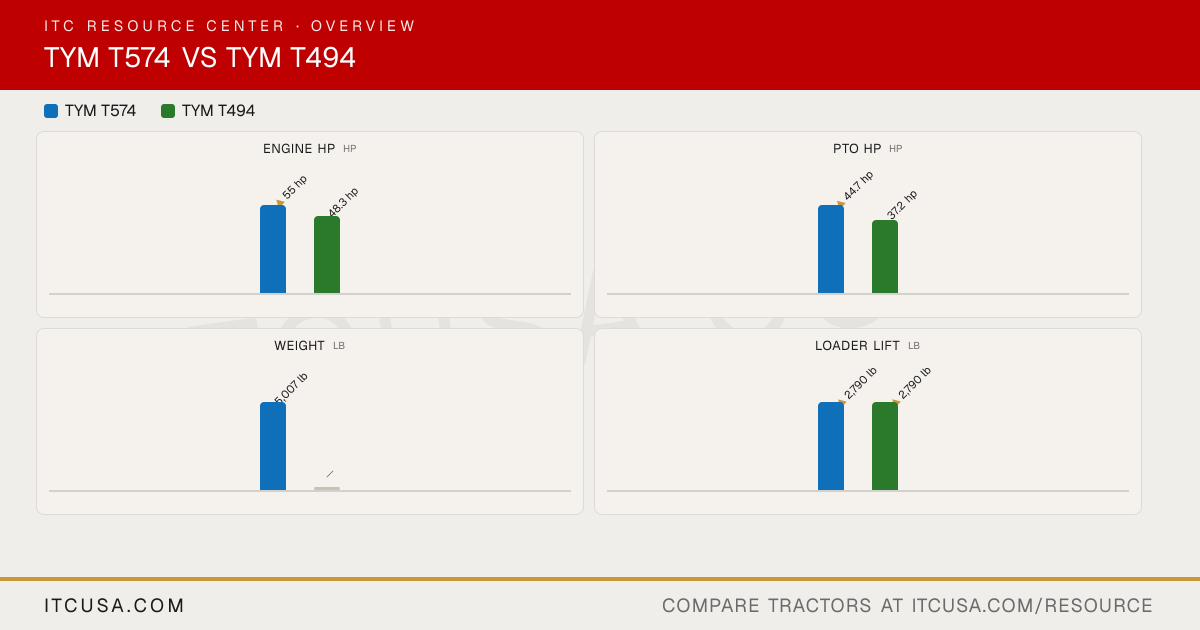

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
TYMT574
TYMT494
Engine Manufacturer
TYM
TYM
Engine Model
T2300T2
T2300N2
Engine Type
4-cylinder, turbocharged, liquid-cooled diesel
4-cylinder, naturally aspirated diesel
No. of Cylinders
4
4
Displacement
139.5 in³
139.5 in³
Rated Engine Speed
2600 rpm
2600 rpm
Engine Power (Gross)
55 hp
48.3 hp
PTO Power
44.1 hp
36.7 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Single dry
Single dry
Fuel System
IDI
IDI
Alternator
70 A, 12 V
70 A, 12 V
Pump Type
Dual gear pump
Dual gear pump
Implement Flow
7.7 gpm
7.7 gpm
Steering Flow
4.3 gpm
4.3 gpm
Total Hydraulic Flow
11.9 gpm
11.9 gpm
Overall Hydraulic Pump Flow
11.9 gpm
11.9 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
2
2
No. of Optional Remote Valves
Not Published
Not Published
Fuel Tank Capacity
15.9 gal
17.0 gal
Coolant Capacity
6.9 qt
6.9 qt
Crankcase Capacity
6.8 qt
6.8 qt
Transmission / Hydraulic System Capacity
9.2 gal
9.2 gal
Front Axle Fluid Capacity
10.5 qt
10.5 qt
PTO Type
Independent
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Optional (Mid-PTO kit)
Optional (Mid-PTO kit)
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
3,822 lb
3,822 lb
Hitch Lift Capacity (at 24”)
3,051 lb
3,051 lb
Lift Control Type
Position/Draft
Position/Draft
Transmission Type
Synchro-shuttle
Synchro-shuttle
No. of Speeds
F8 x R8
F8 x R8
Max Travel Speed (Forward)
18.6 mph
18.6 mph
Max Travel Speed (Reverse)
Not Published
Not Published
Clutch
Dry single plate
Dry single plate
Differential Lock & Limited Slip Options
Rear differential lock, pedal operated
Rear differential lock, pedal operated
Frame Type
Not Published
Not Published
Steering
Hydrostatic
Hydrostatic
Brakes
Wet disc
Wet disc
Seat Suspension & Adjustability
Not Published
Not Published
Front Axle Type
4WD, heavy-duty front axle
4WD, heavy-duty front axle
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Width
63.8 in
63.8 in
Wheelbase
76.2 in
76.2 in
Ground Clearance
13.8 in
13.8 in
Min. Turn Radius without Brakes
131.5 in
131.5 in
Height to Top of ROPS
102.1 in
102.1 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Overall Length
141.3 in (with 3-point hitch)
141.3 in (with 3-point hitch)
Tractor Weight (Base)
3,887 lb (with ROPS)
3,871 lb
Weight with ROPS and Loader
5,007 lb (3,887 + 1,120, computed)
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front
Farm Specialist 9.5-16 NHS TL 6PR
Farm Specialist 9.5-16 NHS TL 6PR
R1 Agricultural - Rear
Farm Specialist 13.6-26 NHS TL 6PR
Farm Specialist 13.6-26 NHS TL 6PR
R3 Turf - Front
Multi-Trac CS 27x10.50-15 NHS TL 4PR
Multi-Trac CS 27x10.50-15 NHS TL 4PR
R3 Turf - Rear
Multi-Trac CS 44x18.00-20 NHS TL 4PR
Multi-Trac CS 44x18.00-20 NHS TL 4PR
R4 Industrial - Front
Trac Chief 12-16.5 NHS TL 6PR
Trac Chief 12-16.5 NHS TL 6PR
R4 Industrial - Rear
Xtra Grip 17.5Lx24 NHS TL 6PR
Xtra Grip 17.5L-24 NHS TL 6PR
Quick Attach Loader System
TX57: Quick attach mechanism
TX57: Quick attach mechanism
Loader Model
TX57
TX57
Loader Lift Height
TX57: 109.4 in
TX57: 109.4 in
Loader Lift Capacity (Full Height)
TX57: 2,790 lb (at pivot pin)
TX57: 2,790 lb (at pivot pin)
Loader Breakout Force
TX57: 5,316 lb (at pivot pin, ground level)
TX57: 5,316 lb (at pivot pin, ground level)
Warranty Length & Coverage
Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders and backhoes 12 months
Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders and backhoes 12 months
