TYM T574C vs Kubota M6040 | Side-by-side comparison | ITC Resource Center
Compare Tractors

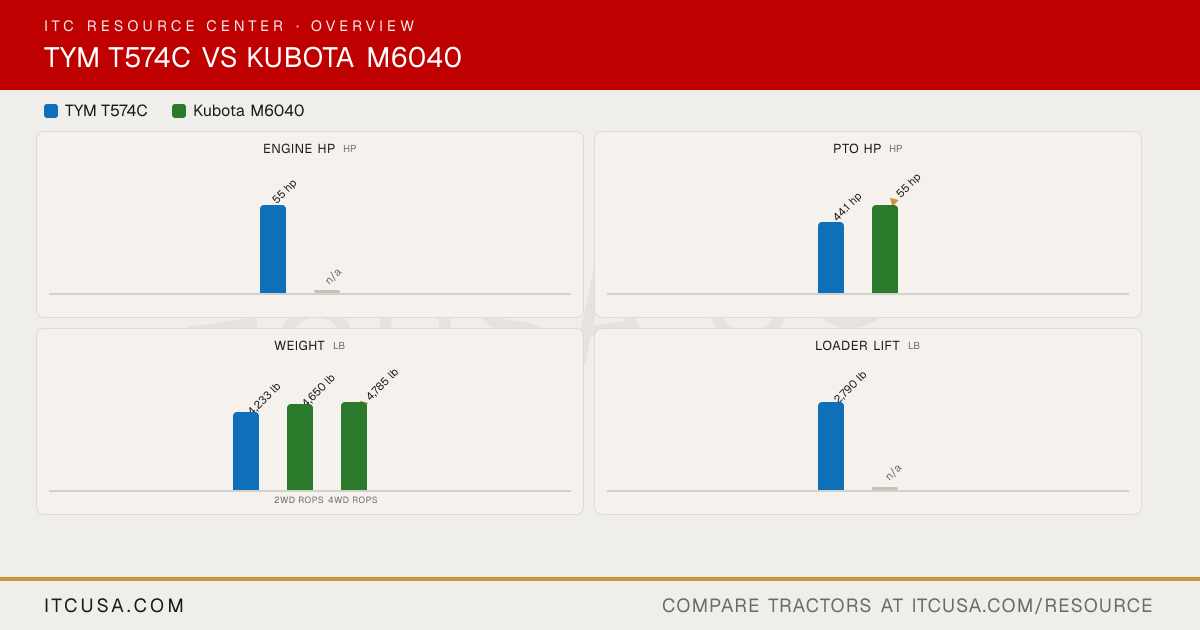

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Standard: 7.50-16 (2WD) or 9.5-24 (4WD) front, 16.9-28 rear
R1 Agricultural - Front
Farm Specialist 9.5-16 NHS TL 6PR
2WD: 7.5-16; 4WD: 9.5-24
R1 Agricultural - Rear
Farm Specialist 13.6-26 NHS TL 6PR
16.9-28
R3 Turf - Front
Multi-Trac CS 27x10.50-15 NHS TL 4PR
2WD: 29x12.5-15 or 27x9.5-15
R3 Turf - Rear
Multi-Trac CS 44x18.00-20 NHS TL 4PR
2WD: 21.5L-16.1 or 16.9-24
R4 Industrial - Front
Trac Chief 12-16.5 NHS TL 6PR
12.5/80-18 (4WD)
R4 Industrial - Rear
Xtra Grip 17.5Lx24 NHS TL 6PR
16.9-24 (4WD)
Quick Attach Loader System
TX57: Quick attach mechanism
LA1153: two-lever quick coupler
Loader Model
TX57
LA1153
Loader Lift Height
TX57: 109.4 in
LA1153 height position: 132.7 in; LA1153 power position: 117.2 in
Loader Lift Capacity (Full Height)
TX57: 2,790 lb (at pivot pin)
Not Published
Loader Breakout Force
TX57: 5,316 lb (at pivot pin, ground level)
Not Published
Warranty Length & Coverage
Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders and backhoes 12 months
