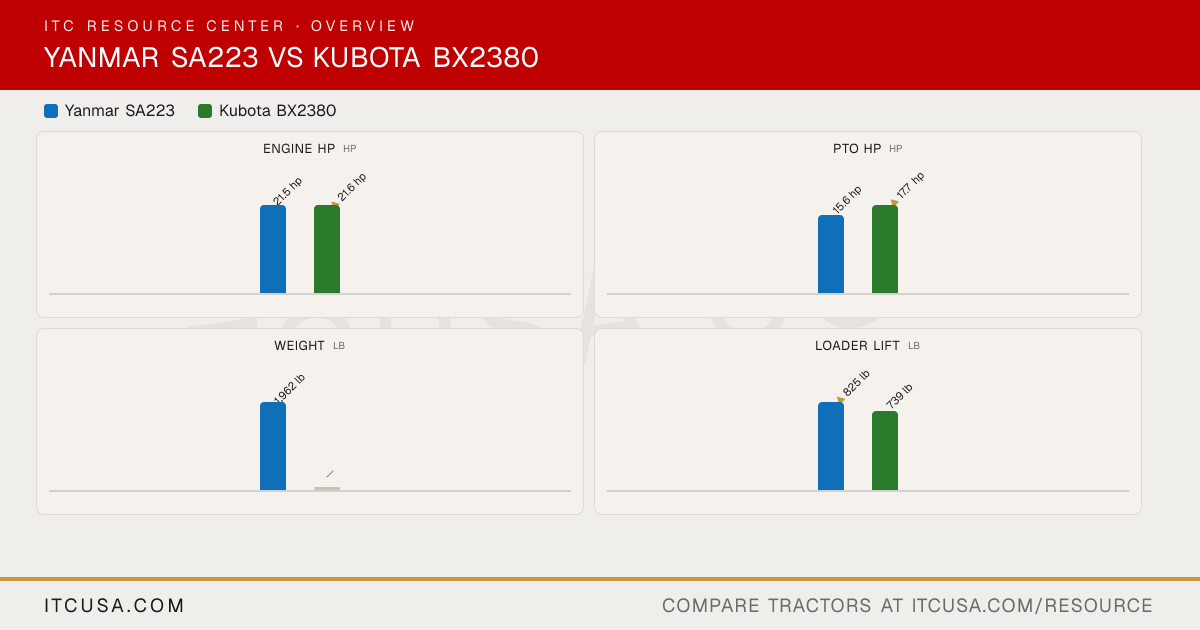

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
YanmarSA223
KubotaBX2380
PTO Power
15.6 hp
17.7 hp
Alternator
40 A, 12 V
40 A, 12 V
Air Cleaner
Not Published
Sheet net and replaceable treated paper element, spin on oil filter
Engine Type
3-cylinder, naturally aspirated diesel
Liquid cooled, 4-cycle, diesel
Fuel System
Not Published
Direct injection
Displacement
60.6 in³
54.8 in³
No. of Cylinders
3
3
Rated Engine Speed
3200 rpm
3200 rpm
Cooling System Type
Liquid cooled
Water with pressurized radiator, reverse air-flow design
Engine Manufacturer
YANMAR
Kubota
Engine Power (Gross)
21.5 hp
21.6 hp
Engine Emissions Constraints
Not Published
Not Published
Weight with ROPS and Loader
1,962 lb
Not Published
Weight with Cab and Loader
Not Applicable
Not Applicable
Warranty Length & Coverage
Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
Not Published
Open center tandem pump gear type
Steering Flow
3.7 gpm
1.0 gpm
Implement Flow
4.3 gpm
5.2 gpm
Total Hydraulic Flow
8.0 gpm
6.2 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
8.0 gpm
6.2 gpm
No. of Optional Remote Valves
Not Published
2 (optional; ISO 7241-1 series A or B)
No. of Standard Remote Valves
Not Published
Not Published
PTO Rear
554 rpm @ 3,200 engine rpm
STD (540 rpm)
PTO Type
Independent (hydraulic clutch)
Live independent PTO (with hydraulic clutch)
Lift Control Type
Position control
Not Published
Hitch Lift Capacity
Not Published
Not Published
Mid-PTO Availability
Standard
STD (2500 rpm)
Category, 3-Point Hitch
Limited Category I
SAE Category I Optional
Hitch Lift Capacity (at 24”)
660 lb
680 lb
R3 Turf - Rear
26x12.0-12 4PR
26X12-12
R3 Turf - Front
18x8.50-10 4PR
18X8.5-10
Tire Size & Options
R3 Turf; R4 Industrial
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
26x12.0-12 4PR
26X12-12
R4 Industrial - Front
18x8.50-10 6PR
18X8.5-10
R1 Agricultural - Rear
Not Applicable
26X12-12
R1 Agricultural - Front
Not Applicable
18X8.5-10
Coolant Capacity
3.0 qt
Not Published
Crankcase Capacity
3.1 qt
Not Published
Fuel Tank Capacity
6.1 gal
6.6 gal
Front Axle Fluid Capacity
3.17 qt
Not Published
Transmission / Hydraulic System Capacity
4.1 gal
Not Published
Loader Lift Height
71 in
71.0 in
Loader Breakout Force
1,342 lb
1,286 lbf (bucket pivot pin)
Quick Attach Loader System
YL110: YANMAR quick attachment system (quick attach/detach)
Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket)
Loader Lift Capacity (Full Height)
825 lb
739 lb
Clutch
Not Applicable
Dry type single plate - Main clutch 9.45 in.
No. of Speeds
Unlimited (hydrostatic); 2 ranges (High/Low)
2 Range (Low-High)
Transmission Type
Hydrostatic transmission, dual range speeds
Hydrostatic transmission
Max Travel Speed (Forward)
9.5 mph (with R4 tires)
8.1 mph
Max Travel Speed (Reverse)
6.6 mph (with R4 tires)
6.2 mph
Differential Lock & Limited Slip Options
Standard differential lock
Rear differential lock standard
Brakes
Wet disc
Mechanical, wet disc type
Steering
Hydrostatic power steering
Integral power steering
Frame Type
Full-frame chassis
Not Published
Front Axle Type
Not Published
4WD: Bevel gear front axle, non-adjustable tread spacing
