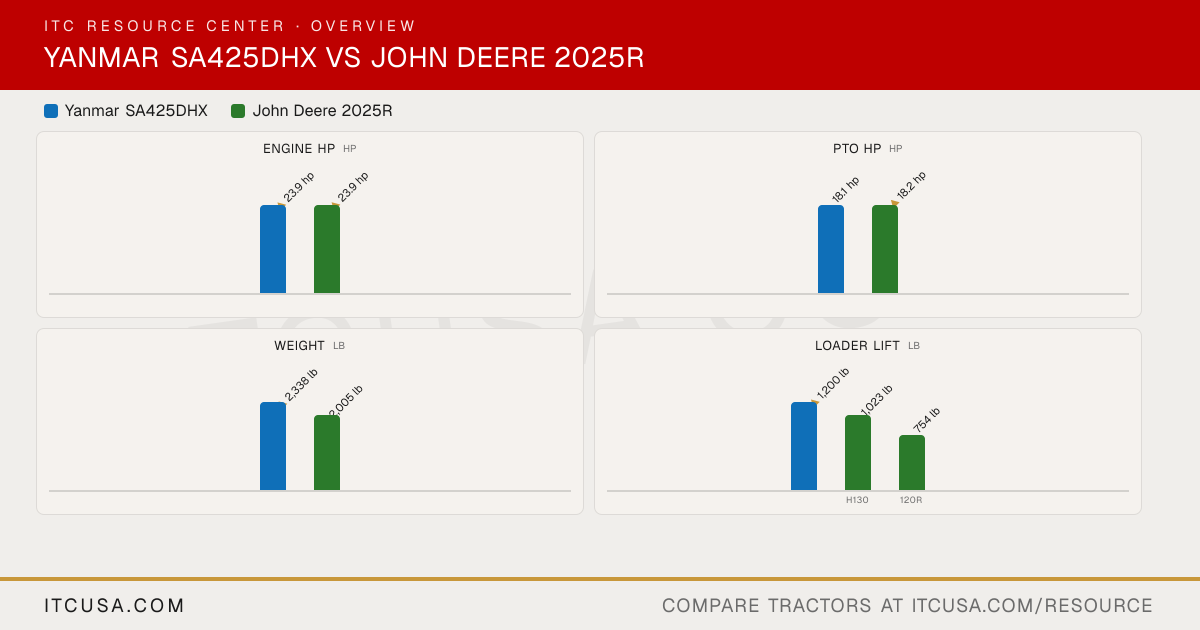

▶ EngineEngine Manufacturer YANMAR Yanmar Engine Model 3TNV80F 3TNV80F-NCJT Engine Type 4-cycle inline, water-cooled diesel, naturally aspirated Diesel No. of Cylinders 3 3 Displacement 77.2 in³ 77 in³ Rated Engine Speed 3200 rpm 3200 rpm Engine Power (Gross) 23.9 hp 23.9 hp PTO Power 18.1 hp 17.2 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid cooled Liquid cooled Air Cleaner Not Published Dual element Fuel System Not Published Indirect injection Alternator 40 A 40 A ▶ HydraulicsPump Type Dual hydraulic pump Not Published Implement Flow 4.3 gpm 3.5 gpm Steering Flow 3.7 gpm 3.5 gpm Total Hydraulic Flow 8.0 gpm (4.3 + 3.7, computed) 7 gpm Overall Hydraulic Pump Flow 8.0 gpm (4.3 + 3.7, computed) 7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published 3.5 gpm implement circuit; 7 gpm total capacity No. of Standard Remote Valves Not Published 2 No. of Optional Remote Valves Not Published Optional field kits: rear SCV kit (one set of hydraulic couplers at the rear); third mid-mounted SCV (additional set of mid-mount couplers) ▶ Fluid CapacityFuel Tank Capacity 6.1 gal 6.1 gal Coolant Capacity 3.0 qt 0.81 gal Crankcase Capacity 3.6 qt 0.84 gal Transmission / Hydraulic System Capacity 4.1 gal 3.5 gal Front Axle Fluid Capacity 3.7 qt 0.89 gal ▶ PTO & HitchPTO Type Independent, hydraulic clutch Independent PTO Rear 554 rpm @ 3,200 engine rpm; 1.4 in OD, 6 splines 540 rpm Mid-PTO Availability Independent mid-PTO, 2,057 rpm at 3,200 engine rpm, SAE 16/32, 15 splines Standard; mid PTO 2100 rpm at 540 PTO marker Category, 3-Point Hitch Limited Category I Limited Category 1 Hitch Lift Capacity Not Published 1,433 lb Hitch Lift Capacity (at 24”) 1,209 lb 915 lb Lift Control Type Position control Position Control ▶ Transmission & DrivetrainTransmission Type Hydrostatic transmission, dual range speeds Hydrostatic No. of Speeds Infinite forward and reverse (hydrostatic); 2 ranges Two range (Hi and Lo) Max Travel Speed (Forward) 13.1 mph (high range, with R4 tires) Not Published Max Travel Speed (Reverse) 9.1 mph (high range, with R4 tires) Not Published Clutch Not Published wet disc Differential Lock & Limited Slip Options Differential lock Differential lock: Yes; Limited slip differential: No ▶ Chassis, Steering & ControlsFrame Type Full-frame chassis Not Published Steering Hydrostatic power steering Power Brakes Wet disc Wet Disc Seat Suspension & Adjustability Not Published Fore/aft adjustable; seat flips forward for weather protection; mechanical suspension not listed Front Axle Type Cast iron, selectable 4WD Four-wheel drive Front Axle Rating Not Published 1,349 lb Drawbar Capacity Not Published 562 lb ▶ Dimensions & ManeuverabilityOverall Width 54.1 in (with R4 tires) 37 in (min); 51 in (max) Wheelbase 63.0 in 63 in Ground Clearance 9.9 in (with R4 tires) 13 in Min. Turn Radius without Brakes 8.5 ft Not Published Height to Top of ROPS 87.2 in (with R4 tires) 89 in Height to Top of ROPS (folded) 71.8 in (folded ROPS, top of steering wheel, R4 tires) 66.8 in Height to Top of Cab Model Not Published Not Published Overall Length 105.8 in (with 3-point hitch) 109.2 in ▶ WeightTractor Weight (Base) 1,830 lb (with ROPS, R4 tires) 1,872 lb (with all fluids) Weight with ROPS and Loader 2,338 lb (1,830 + 508, computed) Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R3 Turf; R4 Industrial Front: R3 Turf 23x8.50-12; R3 Radial 220/55-R12; R4 Industrial 23x8.50-12 R1 Agricultural - Front Not Published Not Published R1 Agricultural - Rear Not Published Not Published R3 Turf - Front 23x8.50-12 4PR 23x8.50-12 or R3 Radial: 220/55-R12 R3 Turf - Rear 36x14.00-15 4PR 12-16.5 or R3 Radial: 280/70 R16 R4 Industrial - Front 23x8.50-12 4PR 23x8.50-12 R4 Industrial - Rear 14-17.5 6PR 12-16.5 ▶ Loader & AttachmentsQuick Attach Loader System YL210: YANMAR quick attachment system H130 Loader (Quik-Park); 120R Loader (NSL standard, MSL optional, Quik-Park) Loader Model YL210 120R Loader Lift Height YL210: 79 in to pivot pin (58 in under level bucket) 120R: 72 in (at pivot pin) Loader Lift Capacity (Full Height) YL210: 1,200 lb at pivot pin 120R (NSL): 803 lb (at pivot pin, full height) Loader Breakout Force YL210: 2,090 lb at pivot pin Not Published ▶ WarrantyWarranty Length & Coverage Private individual use: basic 24 months or 2,000 hours, powertrain 10 years or 3,000 hours; attachments 1 year Basic 2 years or 2,000 hours; powertrain 6 years or 2,000 hours
