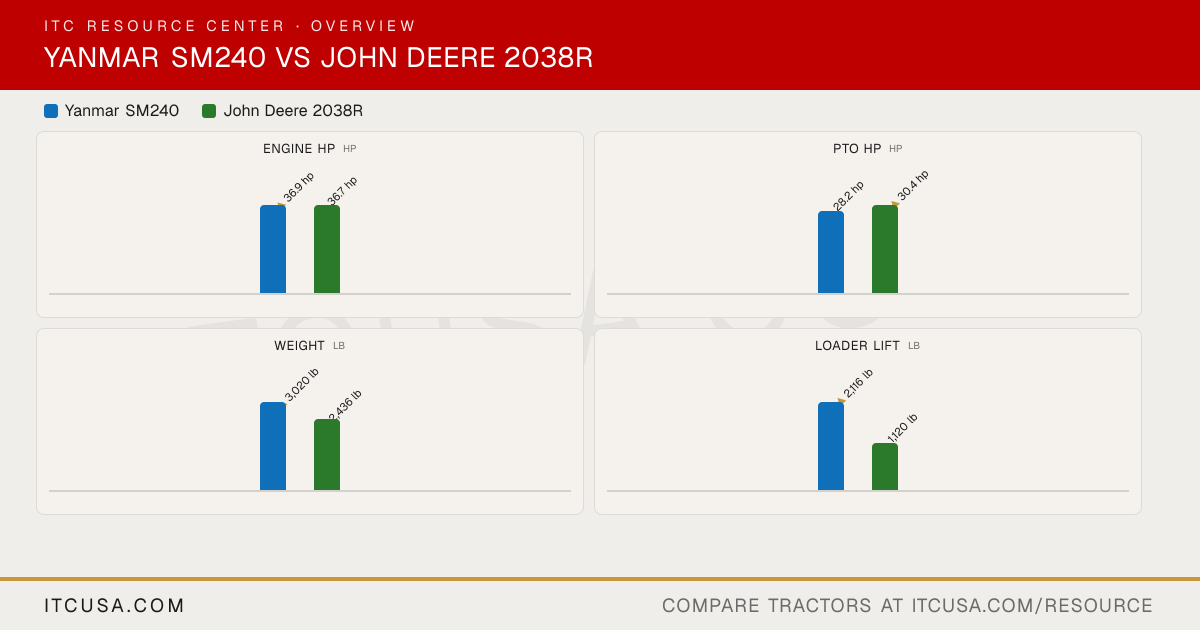

▶ EngineEngine Manufacturer Yanmar Yanmar Engine Model Not Published 3TNV88C-NJT Engine Type Not Published Diesel, turbocharged No. of Cylinders Not Published 3 Displacement Not Published 95.8 in³ Rated Engine Speed 3000 rpm 2500 rpm Engine Power (Gross) 36.9 hp 36.7 hp PTO Power 28.2 hp 30.4 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Not Published Liquid-cooled Air Cleaner Not Published Dual element Fuel System Not Published Direct injection Alternator Not Published 85 A, 12 V ▶ HydraulicsPump Type Not Published Dual gear Implement Flow 6.1 gpm 5.3 gpm Steering Flow 4.4 gpm 4 gpm Total Hydraulic Flow 10.5 gpm 9.3 gpm Overall Hydraulic Pump Flow 10.5 gpm 9.3 gpm Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves 1 or 2 Up to 3 ▶ Fluid CapacityFuel Tank Capacity 9.0 gal 8.5 gal Coolant Capacity Not Published 1.37 gal Crankcase Capacity Not Published 4.7 qt Transmission / Hydraulic System Capacity Not Published 6.2 gal Front Axle Fluid Capacity Not Published 1.0 gal ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published 2000 rpm Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2,639 lb 1,356 lb Hitch Lift Capacity (at 24”) 1,558 lb 1356 lb Lift Control Type Not Published Position Control ▶ Transmission & DrivetrainTransmission Type Synchro Shuttle Hydrostatic No. of Speeds Not Published Infinite (2-range HST) Max Travel Speed (Forward) Not Published 15.3 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Dry Single Plate Not Published Differential Lock & Limited Slip Options Rear differential lock (foot pedal engagement) Differential lock: Yes; Limited slip: Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Not Published Power Brakes Not Published Wet Disc Seat Suspension & Adjustability Comfortable, adjustable operator seat Not Published Front Axle Type Selectable 2WD/4WD engagement 4WD (MFWD) Front Axle Rating Not Published 1940 lb Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch Not Published 117.7 in Overall Width Not Published 53.9 in Wheelbase Not Published 67.9 in Ground Clearance 12.8 in Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Not Published 92.3 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 3,020 lb 2436 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R1 Ag, R3 Turf, R4 Industrial, R3 Turf Radial R1 Agricultural - Front Not Published 7.00-12 R1 Agricultural - Rear Not Published 12.4-16 R3 Turf - Front Not Published 23x8.50-14 R3 Turf - Rear Not Published 14-17.5 R4 Industrial - Front Not Published 23x8.50-14 R4 Industrial - Rear Not Published 14-17.5 ▶ Loader & AttachmentsQuick Attach Loader System Not Published 220R Quik-Park Loader System Loader Model RL505 220R Loader Lift Height RL505: 101.5 in 85 in (at pivot pin) Loader Lift Capacity (Full Height) RL505: 2,116 lb 1,120 lb (at pivot pin, full height) Loader Breakout Force RL505: 3,435 lb 1,949 lbf (at pivot pin) ▶ WarrantyWarranty Length & Coverage Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)
